KW-520 Polyurethane Liquid Mixing Foaming Dispenser Machine
Shanghai Kaiwei Intelligent Technology (Group) Co., Ltd.- Type：Polyurethane Foam Machine
- Raw Material：Mixing
- Principle：High-Pressure Air Type
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：KW-520
- Warranty：One Year
- Weight：1900 Kg
- Transport Package：Wooden Case, Carton
- Specification：4000*3300*2300mm
- Trademark：KAIWEI
- Origin：China
- HS Code：8479899990
- Production Capacity：200 Sets,Year
Description
electric powervoltage 3X380V powder 5.5kw air dry compressed air ≥6bar water clean tap water
Mixing Head
Description:
Raw Material-PU
PU is a product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the
workpiece directly. The finished product is a soft and elastic foamed gasket. This gasket is made from component A and component
B. Component A is mainly polybasic alcohol, Component B is a hardener-isocyanate. After mixing A and B according to a certain
proportion and completely foaming, the mixture will become a soft foamed sealing strip.

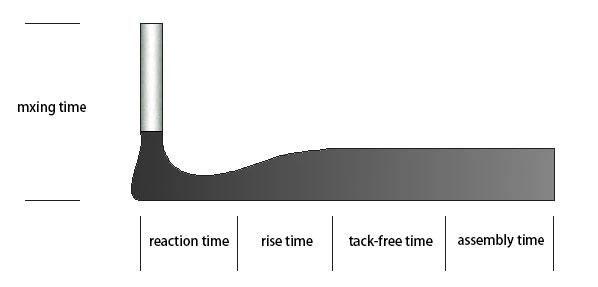

• Mixing time: time for mixing component A and component B
• Reaction time: time for the mixture to react( about15-60 seconds after mixing)
• Foam time: time from reaction to finish (about 15-180 seconds)
• Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later)
• Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later)
Shanghai Kaiwei Electric Equipment Co.,Ltd.
Website :kaiwei-electric.en.made-in-china.com
Add:Room B618, no.6433 yinggang east road, 8090 pioneer park, qingpu district, Shanghai, China

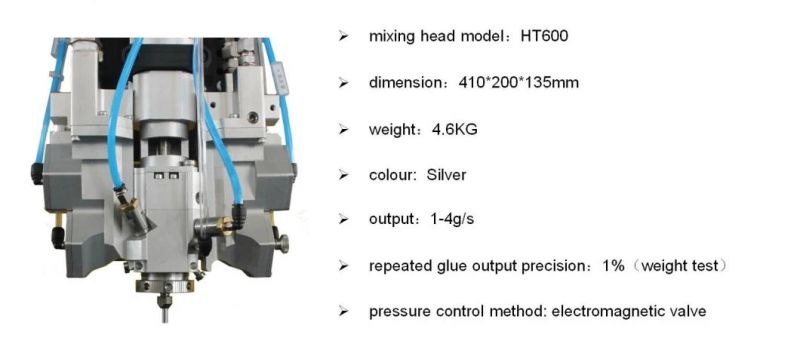

Mixing Head
Description:
- high pressure water-cleaning and air-cleaning
- use sensor pneumatic and vibrating film principle to control glue feeding and cycling
- modular light-weight structural design;
- high strength aluminum alloy and stainless steel structure;
- multiple level glue injecting
- stirring bar speed is adjustable, special design makes glue mixing very even
- high pressure pinhole injecting valve to control water-cleaning
- air-blow pinhole injecting valve to dry mixing head
- stirring bar directional movement to control the nozzle locking function
- feeding valve has water heating and cycling function
Raw Material-PU
PU is a product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the
workpiece directly. The finished product is a soft and elastic foamed gasket. This gasket is made from component A and component
B. Component A is mainly polybasic alcohol, Component B is a hardener-isocyanate. After mixing A and B according to a certain
proportion and completely foaming, the mixture will become a soft foamed sealing strip.
• Mixing time: time for mixing component A and component B
• Reaction time: time for the mixture to react( about15-60 seconds after mixing)
• Foam time: time from reaction to finish (about 15-180 seconds)
• Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later)
• Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later)
