• Model NO.：LXPU-H2-C5H10-28
• Specification：1900*4000*2500
• Trademark：Lingxin
• Origin：China
• HS Code：8477409000
• Production Capacity：40sets,Month

Basic Info.

Model NO. LXPU-H2-C5H10-28 Specification 1900*4000*2500 Trademark Lingxin Origin China HS Code 8477409000 Production Capacity 40sets/Month

Product Description

COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-E

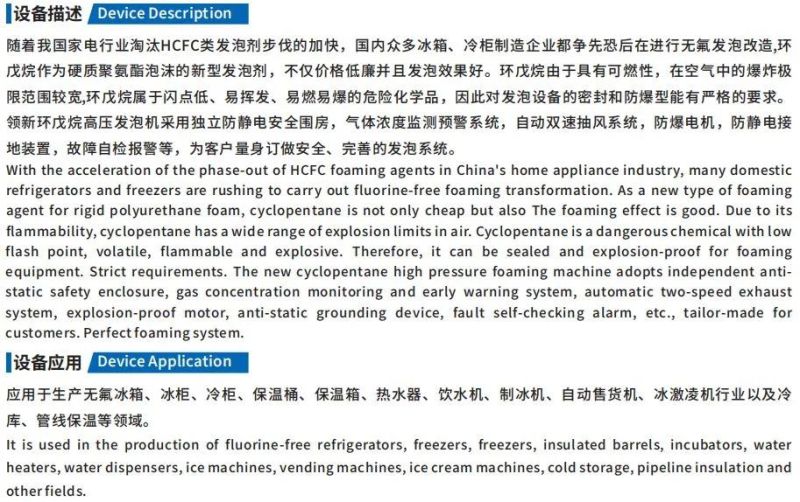

LXPU-H2-C5H10 Pentane machine is developed by Lingxin company absorbing varies technologies.

Details parameter please consult our manager by whatsapp/wechat/email

We would be glad to get your enquiry.

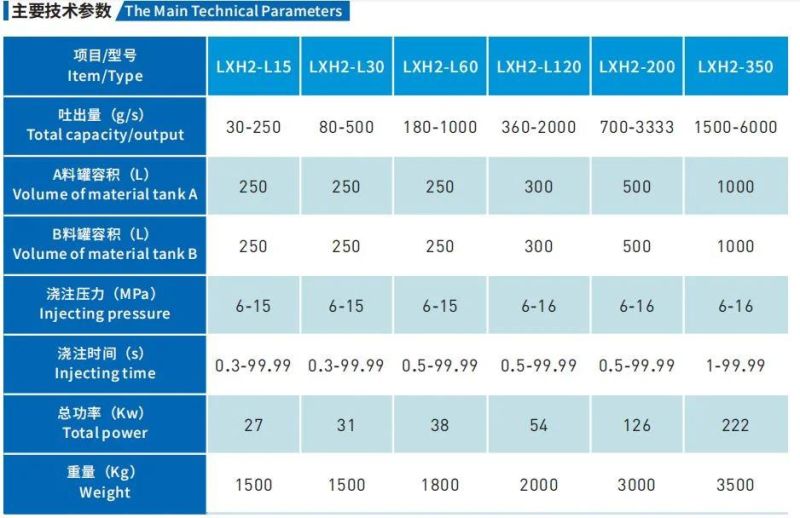

NO	ITEM	TECHNICAL PARAMETER
1	Foaming Application(Blowing agent)	Rigid Foam(Pentane)
2	Material Viscosity(22ºC)	Polyol <2000MPas Iso <1000MPas
3	Injection Pressure	6-20Mpa(Adjustable)
4	Output Flow(Mix ratio:1:1)	≥270~≤1300g/s
5	Mixing Ration Range	1:3~3:1(Adjustable)
6	Injection Time	0.5~99.99S(Correct to 0.01S)
7	Material Temperature Controlling Error	±2ºC
8	Repeat Injection Accuracy	±1%
9	Injection Head	SPU-1218,Four oil pipes, double cylinder
10	Hydraulic System	Flow rate 10L/min System Pressure 10-20Mpa
11	Tank Volume	250L*2
12	Polyol pump	A2FK-28
13	Iso pump	A2FK-28
14	Nitrogen Needed	Dry,free oil P:0.7MpaQ:600NL/min
15	Grounded Standard	All fixed and movable components are grounded, in case static electricity gathered . line terminal is using cold wire,stainless nut and spring meson.
16	Explosion-proof Measures	Material tank A is kept inside a room Adopting gas sensing system to inspect the gas With ventilation system Wind pressure system,alarms in case fan stops Magnetic coupling is installed for A agitator All electrical equipment inside the room are all explosion-proof
17	Input Voltage	3 phase, 5 wires 380V
18	Total Power	About 42KW
