• Model NO.：800-900kg,h
• Frequency Converter：Siemens
• DC Speed Regulator：Siemens
• Contactor：Siemens
• PLC：Siemens
• Touch Screen：Siemens
• Transport Package：Pallet
• Specification：46mx5mx5.5m
• Trademark：XDC
• Origin：Qingdao
• Production Capacity：50 Sets,Year

Basic Info.

Model NO. 800-900kg/h Frequency Converter Siemens DC Speed Regulator Siemens Contactor Siemens PLC Siemens Touch Screen Siemens Transport Package Pallet Specification 46mx5mx5.5m Trademark XDC Origin Qingdao Production Capacity 50 Sets/Year

Product Description

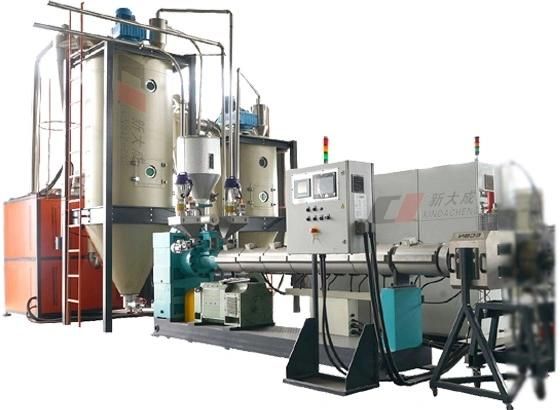

PET Straps Band Extrusion Machine

Technical parameter:

Material	Extruder	Width(mm)	Strap quantity	Output(kg/h)
PET / PP	Φ90	9-19	2	PP150-200 / PET200
PET	Φ110	9-25	4	350-400
PET	Φ120	9-32	4-8	500-600
PET	Φ150	9-32	8-12	800-900

Product description:
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.

Equipment characteristics:
PET or PP straps can be produced with the same technology. It takes a few minutes to change line set-up from one to the other. Heavy duty equipment can be used for four, six and eight straps production.

Feature 1:
• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
• Special designed PET screw, select of single or twin screw extruder.

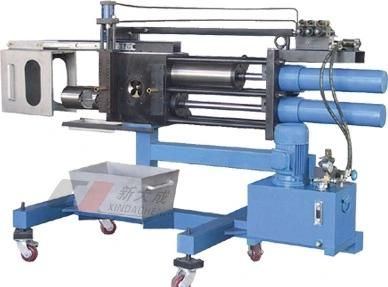

Feature 2:
• Continuous back-flush screen changer operating technology (Europe technology).
• 100% full automatic self-cleaning screen changer.
• Double column 4 screen cavities.
• PLC control, change screen without production interrupted, not influence the production quality.

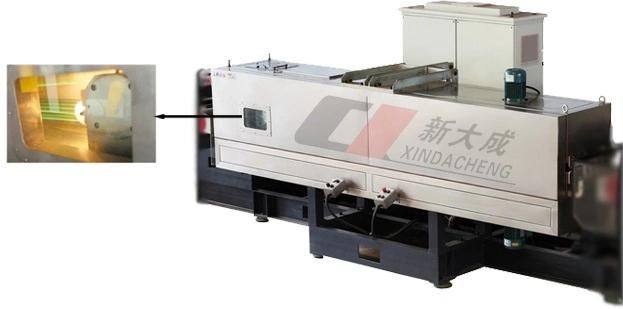

Feature 3:
• Special designed hot air stretching oven.
• Configured with heating unit and automatic temperature control system.
• High performance heat insulating layer.
• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

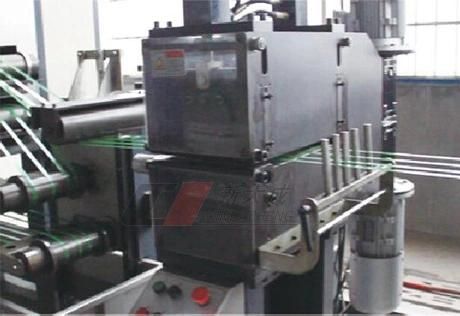

Feature 4:
• Embossing machine, Hydraulic control.
• Customization designed embossing roll pattern available.
• Configured with synchronous control system, adjust embossing roll vertical position and embossing strength accurately.

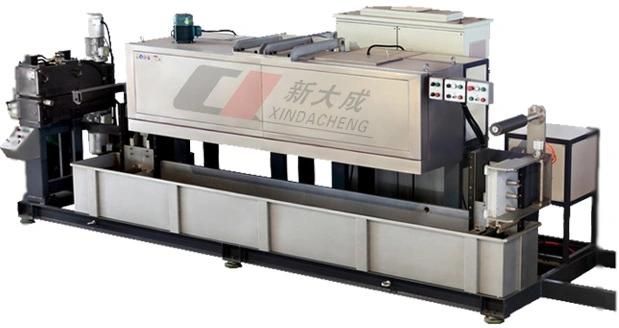

Feature 5:
• Heating oven for sizing
• Special designed technology, make sure the strip forming rapidly
• Prevent the strip from un-orientation after orientation, eliminate internal stress, make sure the quality and size accuracy of strip.


Feature 6:

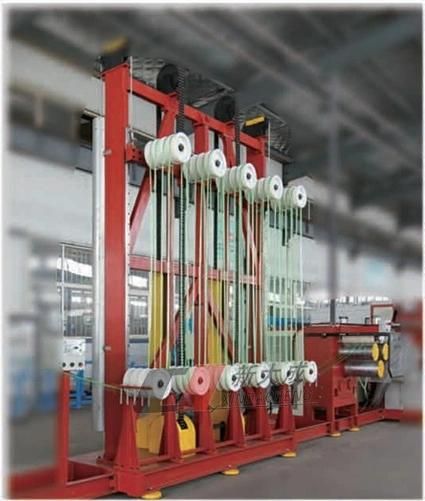

• Strapping accumulator unit.
• Strap length and the winding tension can be controlled according to strap wind speed.
• Two times completely cooling strapping.
• Reduce strapping winding camber.

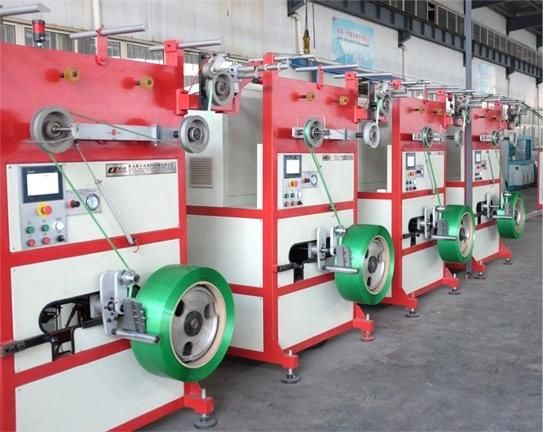

Feature 7:
• Servo control winder (Single position and double position optional).
• PLC control system, automatically adjust winding tension.
• Winding range from 5mm to 32mm.
• Servo motor controls winder displacement width and distance.
• Reduce the strap bending, make sure the strap is fit for automatic packaging equipment.

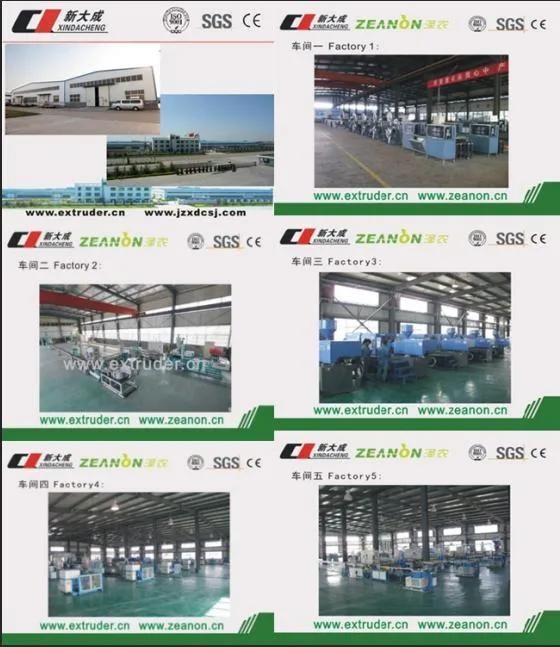

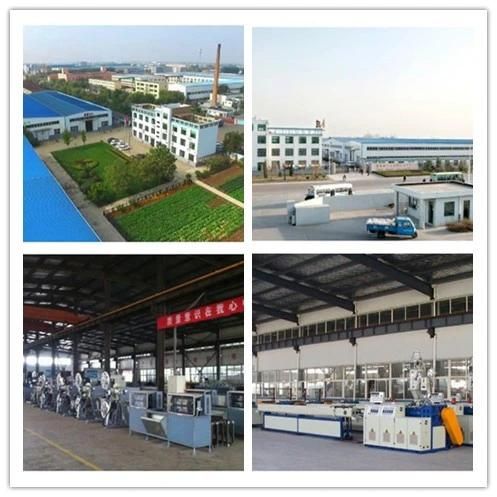

Company informations:
Qingdao Xindacheng Plastic Machinery Co., Ltd., a high-tech join-stock enterprise, integrates scientific research development, technology transfer, production and sale. In addition, it is the unit for accomplishing key promotion projects of science and technology result in construction department.
The company mainly engages in research, development, design, manufacture and sales service of new type plastic machinery, is able to provide "Turn-key project" of complete set of production line for many plastic product. It owns powerful technology strength, gathers professional scientific and research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and marketing. Besides, it keeps closely contact with chemical design research institute and universities, so it is familiar with market trend and is able to transfer the latest science and technology achievements in the fastest speed so that to provide whole set of technology such as the most competitive equipment, technology and relevant technology consultation service.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class product and considerate service to help you in accomplishing great business and cooperate with together to create new era in plastic machinery industry.
Xindacheng always considers that customers' interest is the first important. Over decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as, U.S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia, Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.
Company board chairman and staff warmly welcome friends from all circles to visit us.




Why choose XINDACHENG?
• We supply all the technical support, such as engineers, drawings, and instruction manual.
• We send one or more than one engineers to client for installing and adjust all the machinery.
• Buyer also can sent workers to our workshop for learning how to conduct Plastic extruder.
• Supply formula guide service and staple raw material purchase.
• We could supply the Feasibility Analysis Report for the project.
• We could supply turnkey project to you.
• We have good reputation from our customers both at home and abroad.

Certificate:



FAQ:
Q: Where is your factory? How can I get there?
Way 1: you take the train to Gaomi station (Weifang City), we will pick you up. It's only 30 minutes from our factory to Gaomi station.
Mode 2: take a plane to Liuting International Airport (Qingdao), we will meet you, 40 minutes from the factory to the airport.

Q: how is your factory doing in quality control?
A: the electrical part has cooperated with famous foreign brands such as Yaskawa, Siemens, NSK, Delta, Panasonic, etc. the other part comes from domestic high-quality manufacturers and will be tested before delivery.

Q: is there any overseas service?
A: Yes, we have an experienced service team. Each team member has gone abroad many times and has rich experience in machine installation. But the buyer needs to provide air tickets, food, hotel fees, etc.

Q: how does your company provide after-sales service?
A: all machines purchased from our company are provided with a one-year warranty period (except for human errors). We will supply some spare parts for replacement at the time of delivery. In case of damage to machine parts in the warehouse, we will send you free parts by express as soon as possible.
