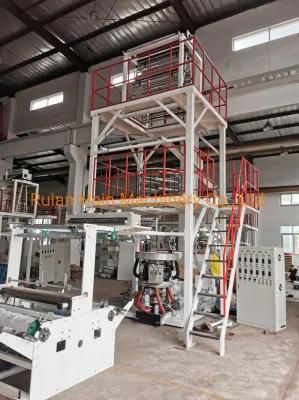

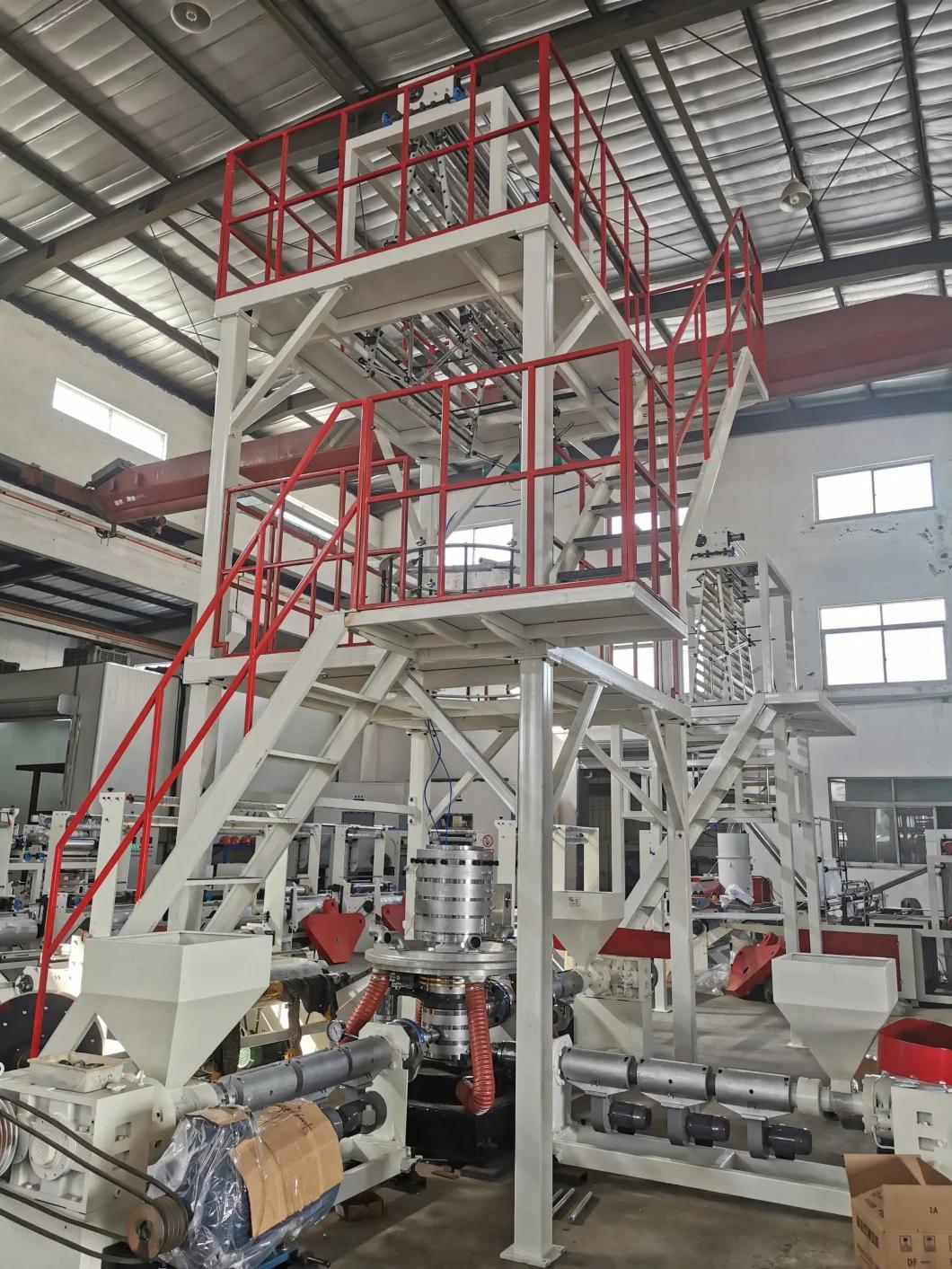

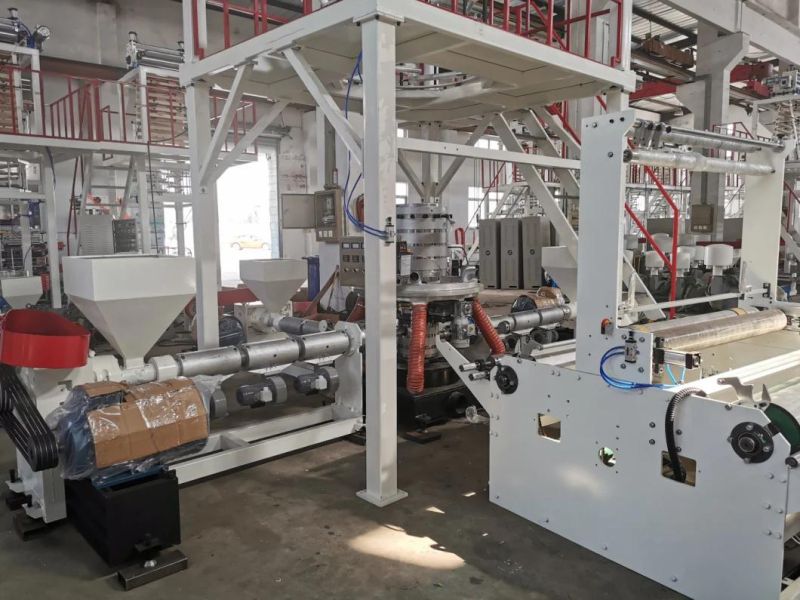

LDPE HDPE Three Layer Common Extruding Rotary Die Head Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Three-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：3000mm
- Screw Diameter：65mm
Base Info
- Model NO.：FB3-RD-800, 1000, 1200, 1500, 1700, 2000, 2500, 3m
- Automation：Automatic
- Computerized：Computerized
- Machine Weight：8T
- Certification：CE, ISO9001:2008
- Film Thickness：0.10-0.10mm
- Screw Quantity：3sets
- Mian Motor：3sets
- Die Head：Three Layers Spiral Type
- Die Head Diameter：200-700mm
- Film Range：800-3000mm
- Transport Package：Strech Film Wrapping and Wooden Box
- Specification：CE, ISO, SGS
- Trademark：Hoin
- Origin：China
- HS Code：84773010
- Production Capacity：90-240kg,H
Description
LDPE LLDPE mLLDPE HDPELayfat width of film(mm) 800 1000 1200 1500 Thickness of film(mm) 0.02-0.10 Max.extrusion output 90kg/h 100kg/h 120kg/h 150kg/h Screw dia(mm) Φ45/Φ45/Φ45 Φ45/Φ50/Φ45 Φ50/Φ55/Φ50 Φ55/Φ60Φ55 Screw L/D 30:1 Screw rotation 10-100r/min Main motor(kw) 11/11/11 11/15/11 15/18.5/15 18.5/22/18.5 Dia of orifice(mm) Φ200 Φ250 Φ300 Φ350 Rir ring structure form Double air vent air ring Rotary traction form 360° 360°continuous rotation Total power(kw) 70 80 90 105 Weight (T) 4 4.5 5.5 6.5 Dimension LxWxH(M) 6.4x4x4.8 6.6x4.1x5 6.8x4.3x6 7x4.8x6.8 MODLE F3B-RD-1700 F3B-RD-2000 F3B-RD-2500 F3B-RD-3000 Suitable material LDPE LLDPE HDPE Layfat width of film(mm) 1700 2000 2500 3000 Thickness of film(mm) 0.03-0.10 Max.extrusion output 150kg/h 180kg/h 210kg/h 240kg/h Screw dia(mm) Φ55/Φ60Φ55 Φ60/Φ65/Φ60 Φ65/Φ70/Φ65 Φ75/Φ80Φ75 Screw L/D 30:1 Screw rotation 10-100r/min Main motor(kw) 18.5/22/18.5 22/30/22 30/37/30 37/45/37 Dia of orifice(mm) Φ420 Φ500 Φ600 Φ700 Rir ring structure form Double air vent air ring Rotary traction form 360° 360° Total power(kw) 110 140 160 190 Weight (T) 7 9 11 13 Dimension LxWxH(M) 7.2x5x7.2 7.8x5.3x8.6 8.6x6.2x9.6 9.6x7.2x11

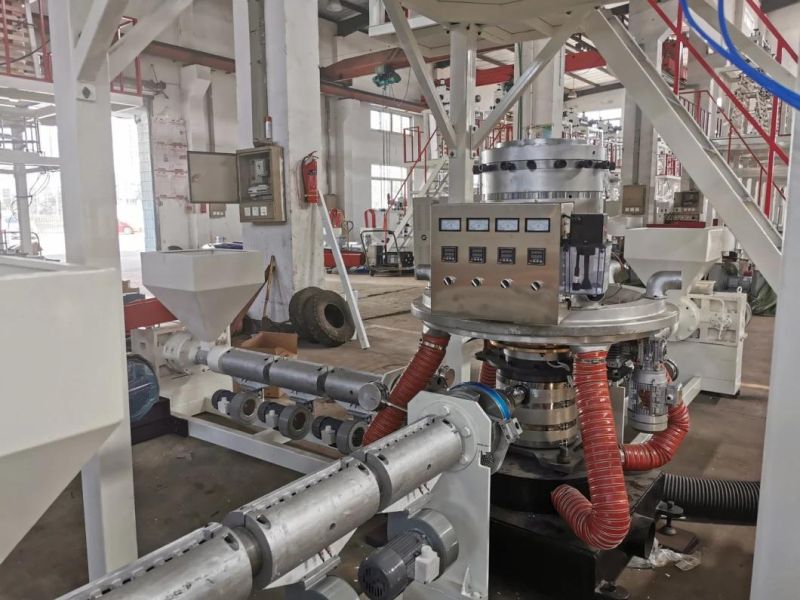

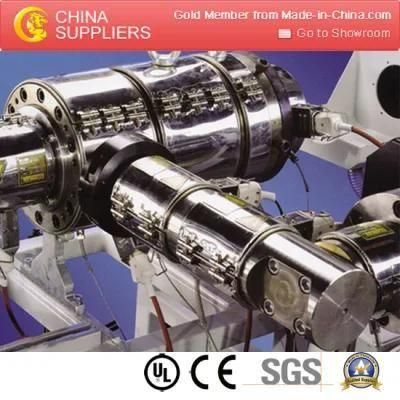

1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Aluminum Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

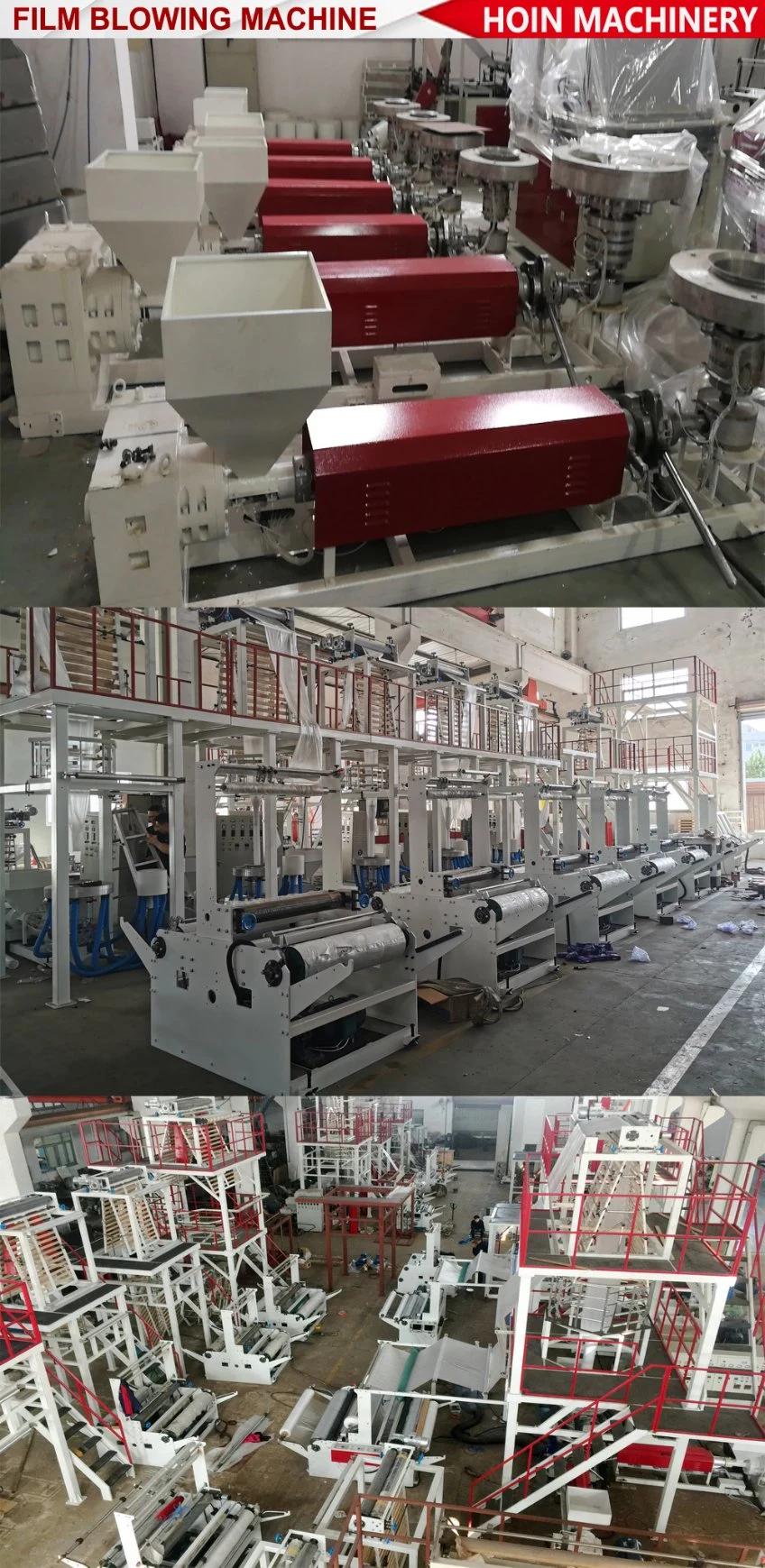

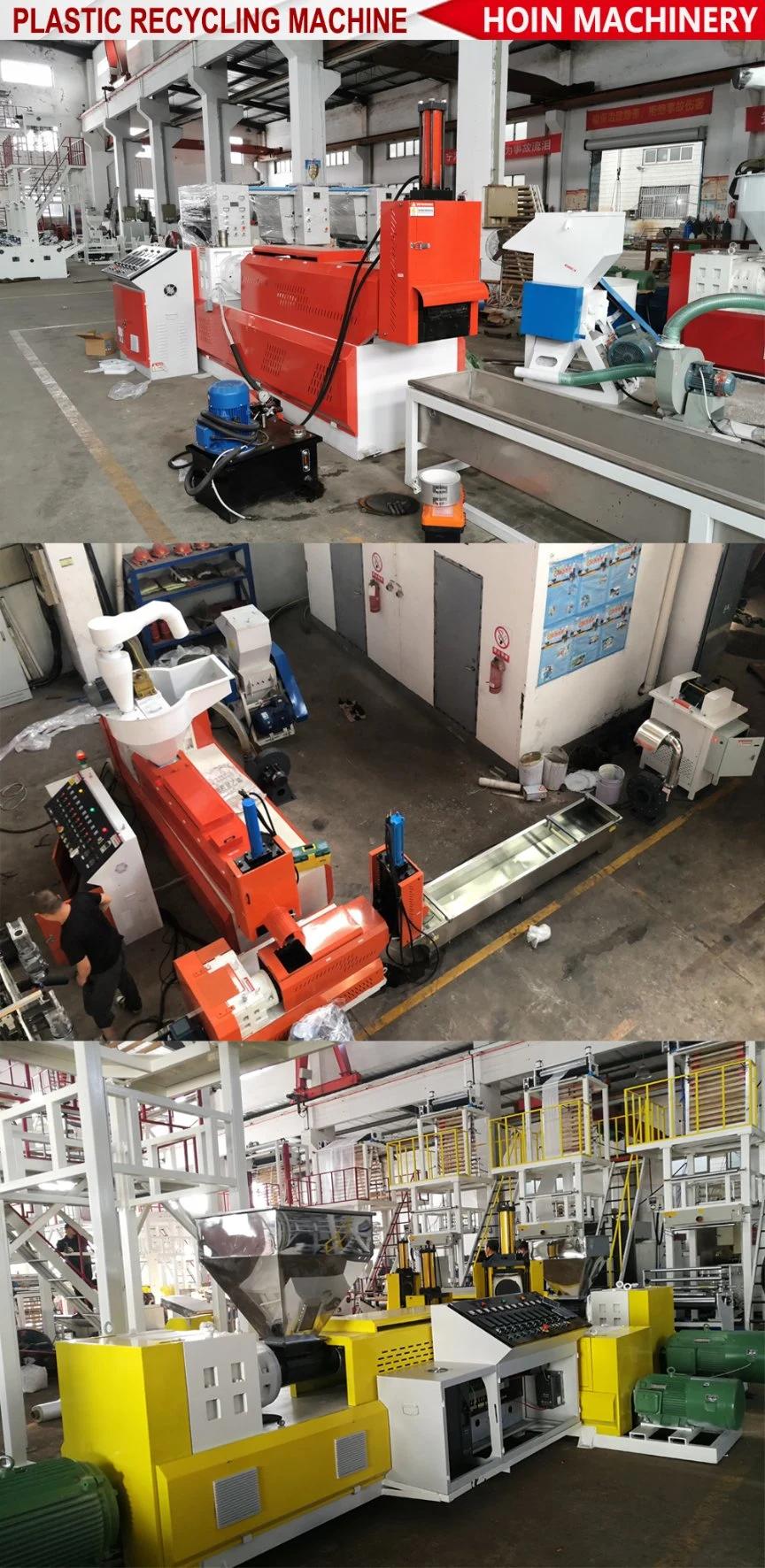

HOIN WORKSHOP

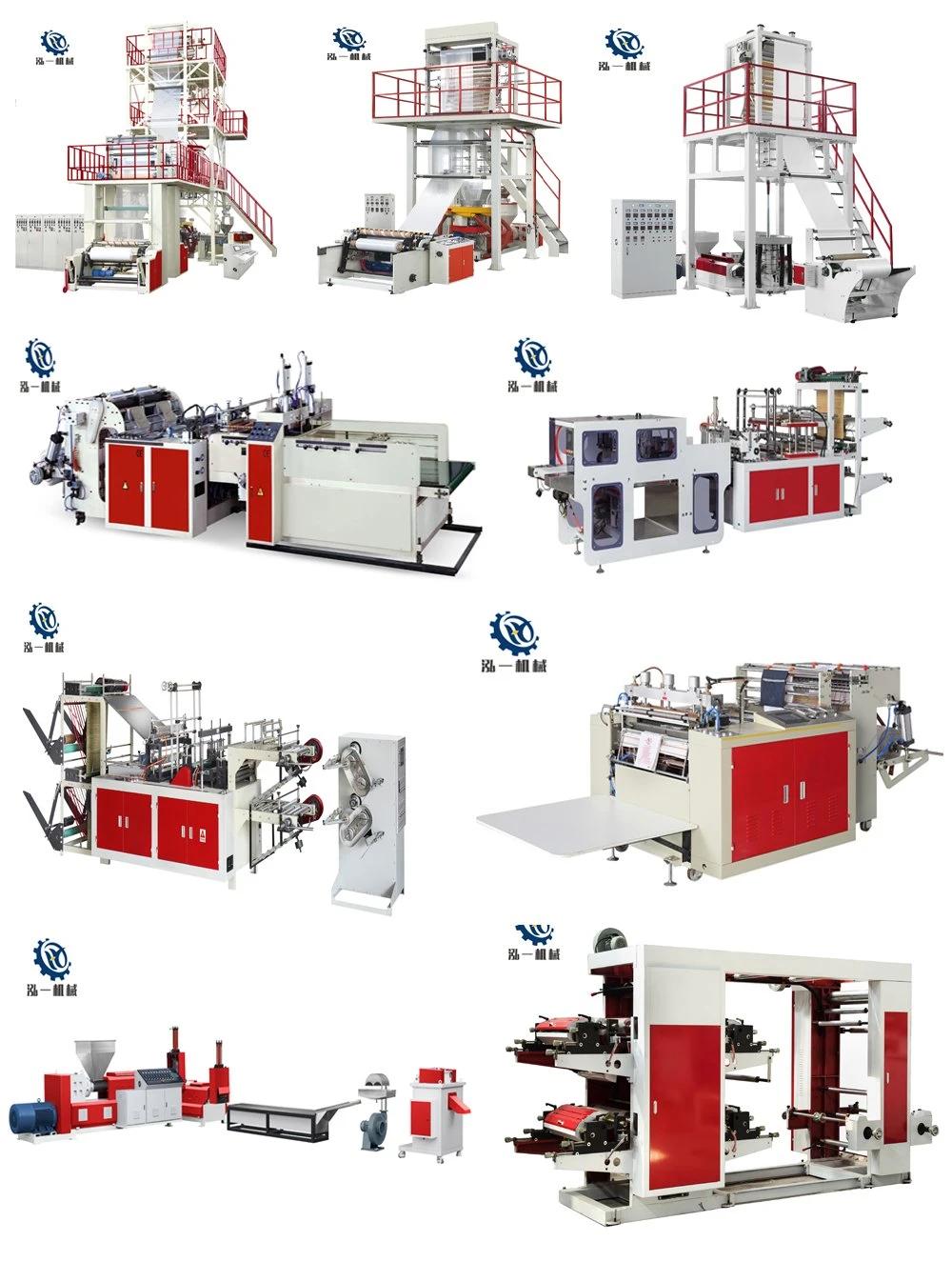

MORE PRODUCTS
AFTER SERVICE OF HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel free to contact with US!
