Single Screw Double Die Plastic Bag Film Blowing Machine

Wenzhou Rili Machinery Co., Ltd
  • After-sales Service：Lifetime After-Sales
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：45mm

Base Info

  • Model NO.：RL-DH
  • Automation：Non-Automatic
  • Computerized：Non-Computerized
  • Machine Weight：4T
  • Certification：CE
  • Speed：High Speed
  • Die：Fix Die or Rotary Die
  • Rewinder：Single or Double
  • Transport Package：Stretch Film Packaging, Wooden Case
  • Specification：5.5m*2.1m*4.7m
  • Trademark：RILI
  • Origin：Made in China
  • HS Code：8477209000
  • Production Capacity：200 Sets, Year

Description

Basic Info.

Model NO. RL-DH Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE Speed High Speed Die Fix Die or Rotary Die Rewinder Single or Double Transport Package Stretch Film Packaging, Wooden Case Specification 5.5m*2.1m*4.7m Trademark RILI Origin Made in China HS Code 8477209000 Production Capacity 200 Sets/ Year

Product Description

Single Screw Double Die Film Blowing Machine

The Film blowing machine is used to blow the plastic films like LDPE (low density polyethylene), HDPE (high density polyethylene) and LLDPE (linear low density polyethylene) into bubble film. Its products are widely used to pack fruit, food, clothes, textile, like garbage bags and vest/T-shirt bags, shopping bags and daily necessities and other industrial products.



Film blowing machine features:

Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment

Heaters: stainless heaters



Film blowing machine control Panel

1. Temperature of barrel and die head controlled by digital temperature controller

2. Inverter controls main motor driving speed and film taking up motor running speed

3. Electronics used are all Chinese top brand

4. Current meters and Voltage meters show the working state of motors

5. Small fan installed to avoid high temperature caused by long time running


Main Technical Parameters:
ModelRL-DH65RL-DH75
Film Width200-600mm300-800mm
L/D Ratio 28:128:1
Max.Extrusion output70kg/h100kg/h
Screw Diameter6575
Main Motor30kw37kw
Air Ring620mmx2780mmx2
Winding Motor1.5kw1.5kw
Die size60 or 80mm60 or 80mm

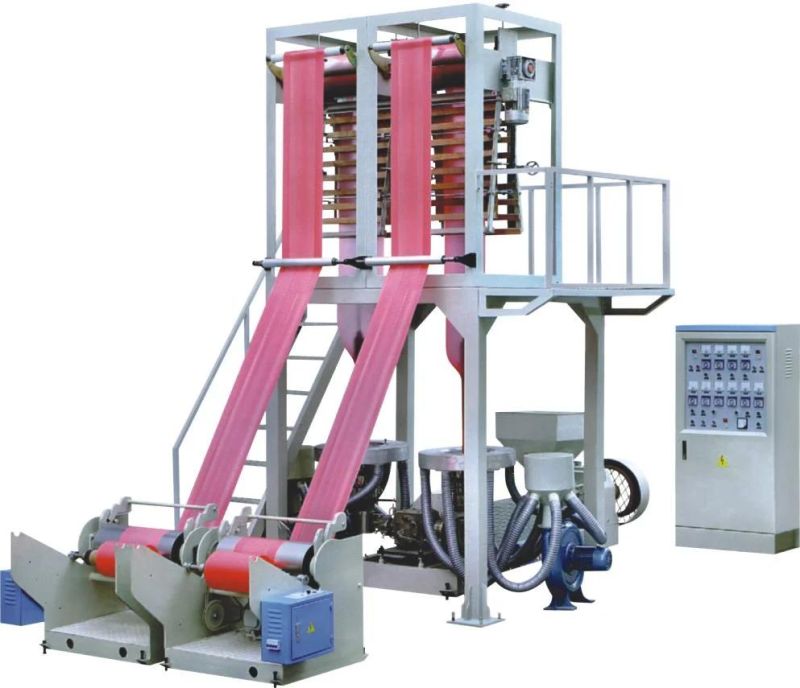

Machine Pictures:

Single Screw Double Die Plastic Bag Film Blowing MachineSingle Screw Double Die Plastic Bag Film Blowing Machine
