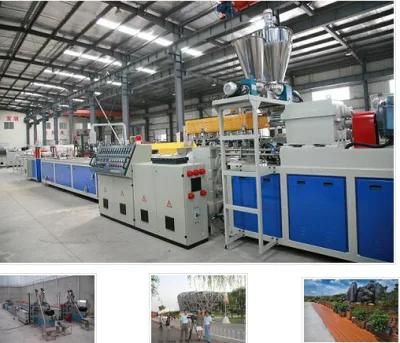

WPC (PCB + PE) Outdoor Decking Extrusion Production Line
SKY WIN Technology Co., Ltd.- Product Type：WPC Profile
- Screw：Multi-Screw
- Automation：Automatic
- Certification：CE, ISO9001:2008
- Customized：Customized
- Output：90-200kg,H
Base Info
- Screw Diameter：65,120
- Screw Rotary Speed：30-55r,Min
- Materials Processed：Waste PCB Powder+ PE Pellets
Description
Basic Info.
Screw Diameter 65/120 Screw Rotary Speed 30-55r/Min Materials Processed Waste PCB Powder+ PE PelletsProduct Description
I. Practical Application: Products for landscape, decking, railing, fencing, wall panel, pallet, partition board, etc.
II. Technical parameters
Machine Type | Output(Kg/h) | Total Power(KW) | L/D | Rotational Speed(r/min) | Outline Dximension(mm) | Weight(Kg) |
SWMSY-1 | 40-60 | 75 | 10-32 | 30-70 | 15400*1500*2500 | 4900 |
SWMSY-2 | 70-160 | 103 | 10-32 | 30-55 | 20300*2230*2900 | 6000 |
SWMSY-3 | 90-200 | 126 | 10-32 | 30-55 | 22900*2530*3100 | 7700 |
