PP Two Layers ABA Film Machine Blowing
HEBEI CHENGHENG PLASTIC MACHINERY TECHNOLOGY CO., LTD.- Type:PE Film Blowing Machine
- Raw Material:LDPE HDPE LLDPE
- Maximum Folding Width of Film:1000mm
- Screw Diameter:65mm
- Automation:Automatic
- Computerized:Computerized
Base Info
- Model NO.:CHSJ-PP2
- Machine Weight:12000kg
- Certification:CE, ISO9001:2008, BV
- Clor:Red, Green, White
- Delivery:Quick
- Grade:Power Saving
- Speed:Quick
- Standard:Light
- Material:LDPE, PP, PVC, HDPE LLDPE
- Quality:High
- Transport Package:Wooden Box or Plastic Film
- Specification:4.8x3x4.5
- Trademark:ChengHeng
- Origin:Ningjin, Hebei, China
- HS Code:847730000
- Production Capacity:30 Sets Per Month
Description
PP-ABA-55/1000PP-ABA-65/1200 Film width (mm) 400-800mm 500-1200mm Film thickness 0.006-0.08mm 0.006-0.08mm max output 95kg/h 120kg/h According to different width, thickness of film, die size and raw material Raw material PP/LDPE Diameter of screw Φ55×2,30/1 Φ65×2,30/1 SACM 645 ,bimetallic ,five years guarantee Main motor 22kw×3 30kw×3 100% Original three-phase variable frequency motor.
Equipped with inverter control Take up roller(mm) 1000mm 1200mm Gearbox 173 173 Weight 7500kg 9500kg winder Center surface winder Center surface winder
Optional Device:
1:EPC device not necessary
2:Automatic edge recycling system
3:IBC COOLING SYSTEM
4:Germany film thickness and width control system
5:IBC COOLING SYSTEM
6:OSCILLATING TAKE UP UNIT
7:HEATING SLITING SYSTEM
8: GRAVIMETRIC DOSING UNIT
9:Automatic Double winder with slitting knife with PLC
10: Mick computer controller
11: faster change filter
12: 360 rotary diehead
Packaging & Shipping

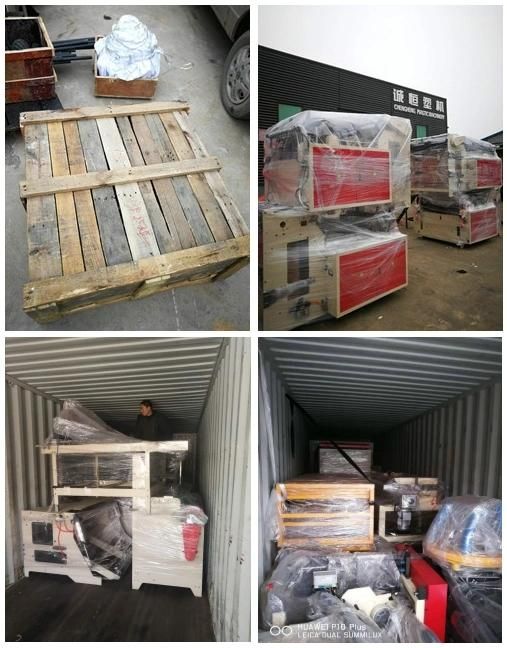

Package: the machine could be packed by film or wooden boxes.
Shipment: from tianjin,China port to destination port
About us:
1) All Our Machines with CE BV SGS and ISO certificates
2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
5) Guarantee for five years , Long Life Services
