Film Compactor Granulating Line with Less Energy Cost, Work Stably
Zhangjiagang Lianda Machinery Co., Ltd.- After-sales Service：24hours on Line
- Warranty：1year
- Certification：CE, ISO9001:2008, UL
- Condition：New
- Low Power Consumption：The Power Consumption Reduced 15%
- Highly Automatically：Only 2 People Per Line
Base Info
- High Efficiency：Output Increased 20%.
- Delivery Time：60 Working Days
- Transport Package：Film Package,Pallet or Customized
- Specification：300-1000kg,h
- Origin：China
- HS Code：84772010
- Production Capacity：40sets Per Year
Description
>> Film compactor/Agglomerator will cut film and compact the film by High speed friction
>> The Film compaction/ agglomerator is designed with observation window to facilitate customers to open,clean and change the blades
>> After the material enters the compactor, it is crushed and compacted, and the high-speed rotating compactor throws the material into the single-screw extruder along the flow path. A higher temperature can be created in the compactor, compacting the plastic into the pellets and evaporating the water.
>>Water-ring pelletizer, pelletizing speed is controlled by inverter,including hot cutting die, diverter cone, water-ring cover,knife holder,knife disc,knife bar etc
>>Non-stop hydraulic screen changer, there is a pressure sensor on the die head to prompt screen change, no need to stop for screen change, and fast screen change
>> The pellets will be cut directly on the water-ring die head, and pellets will be fed to the Vertical dewatering machine after water cooled, the problem of strands breakage will not occur;
Controlling System
>>Feeding: Belt conveyor runs or not depends on the electric Currency of Film Compactor/Agglomerator. The Belt conveyor will stop conveying while the electric current of Film compactor/ agglomerator is over the set value.
>>Temperatur of Film Compactor/Agglomerator: The temperature generated by the friction of the material must ensure that the material is heated, curled, contracted, and enters the extruder smoothly, and has a certain bearing on the rotation speed of the compactor motor
>>Screw extruder speed can be adjustable ( According to the cituation of fed material)
>> Pelletizing speed can be adjustable (According to the material output and size)

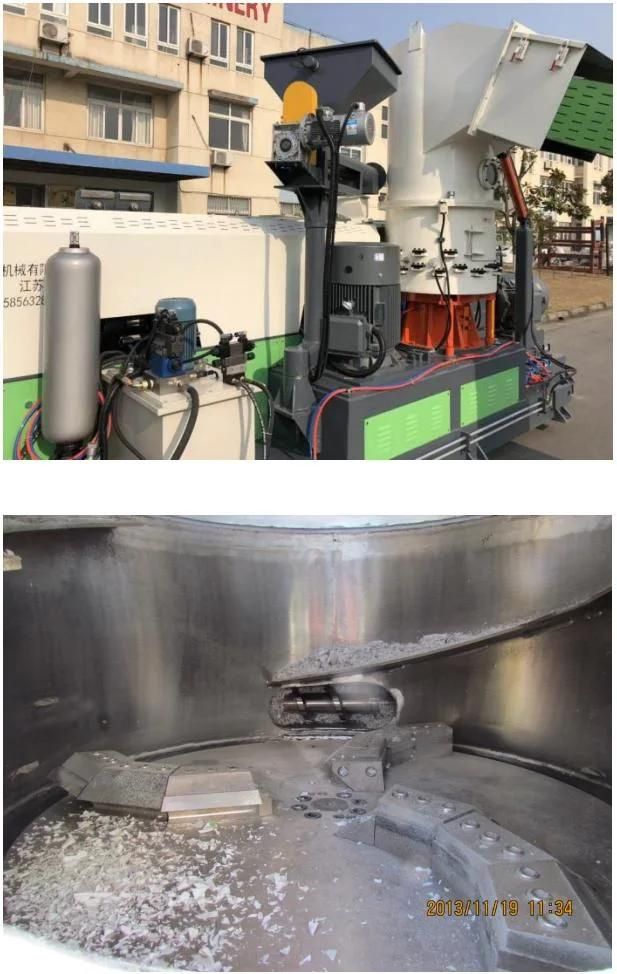

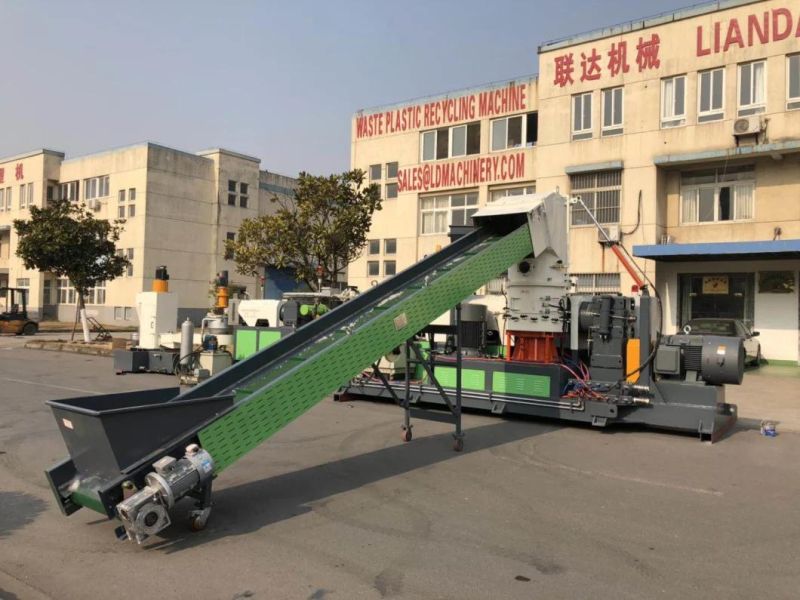

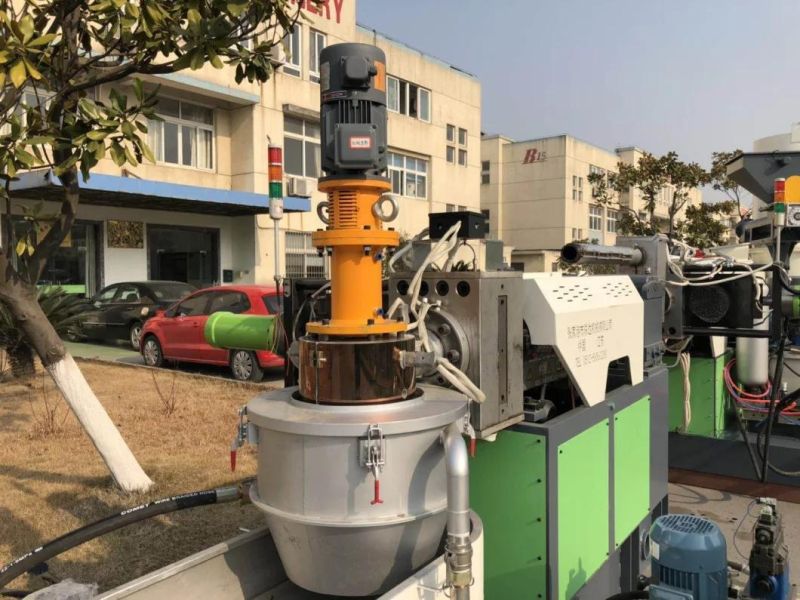

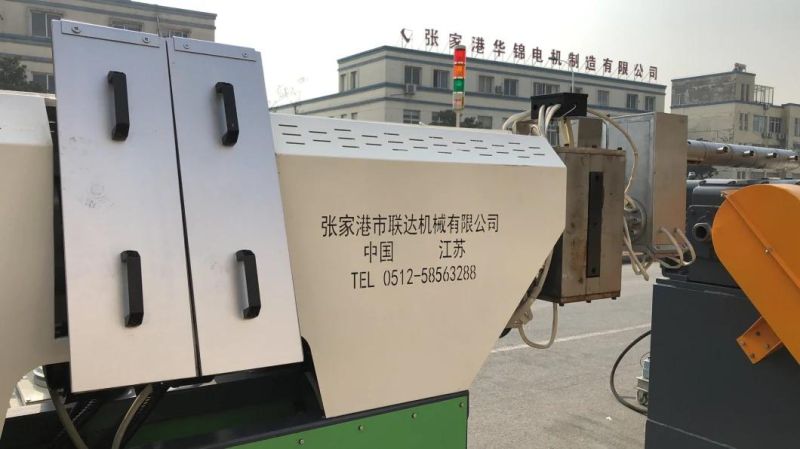

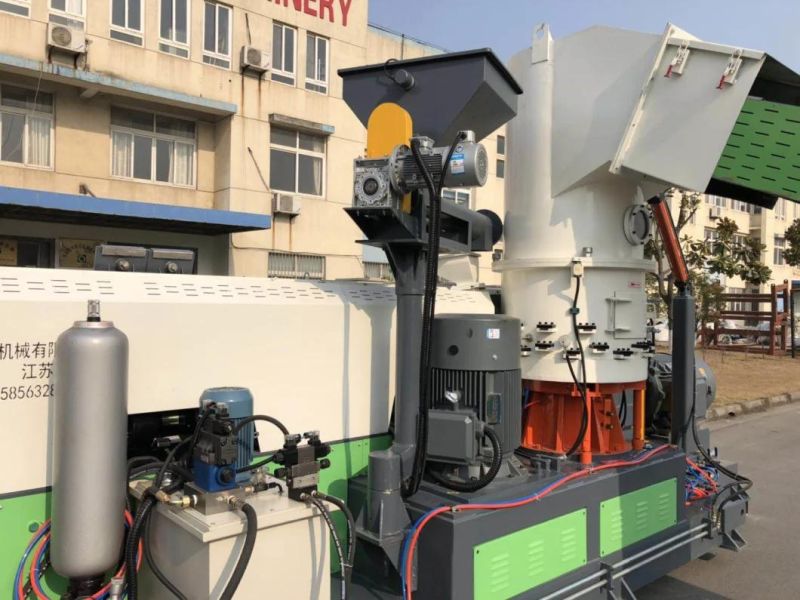

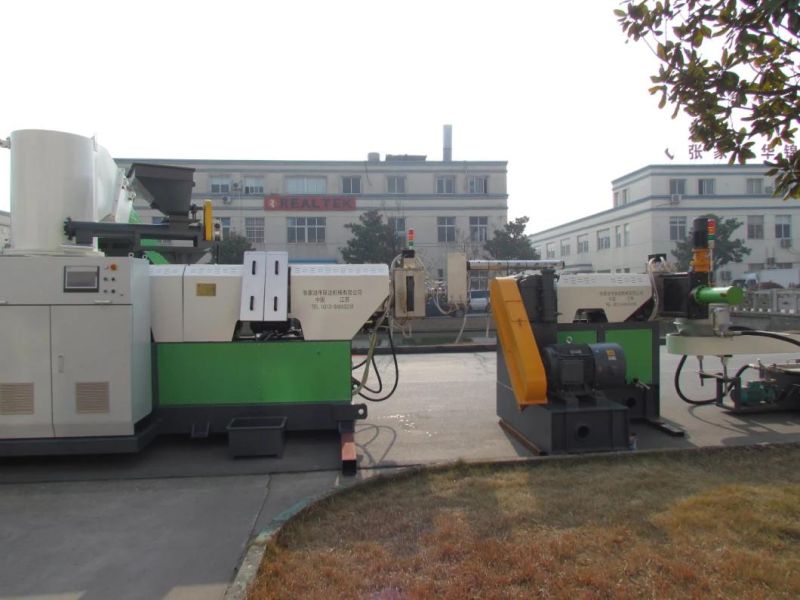

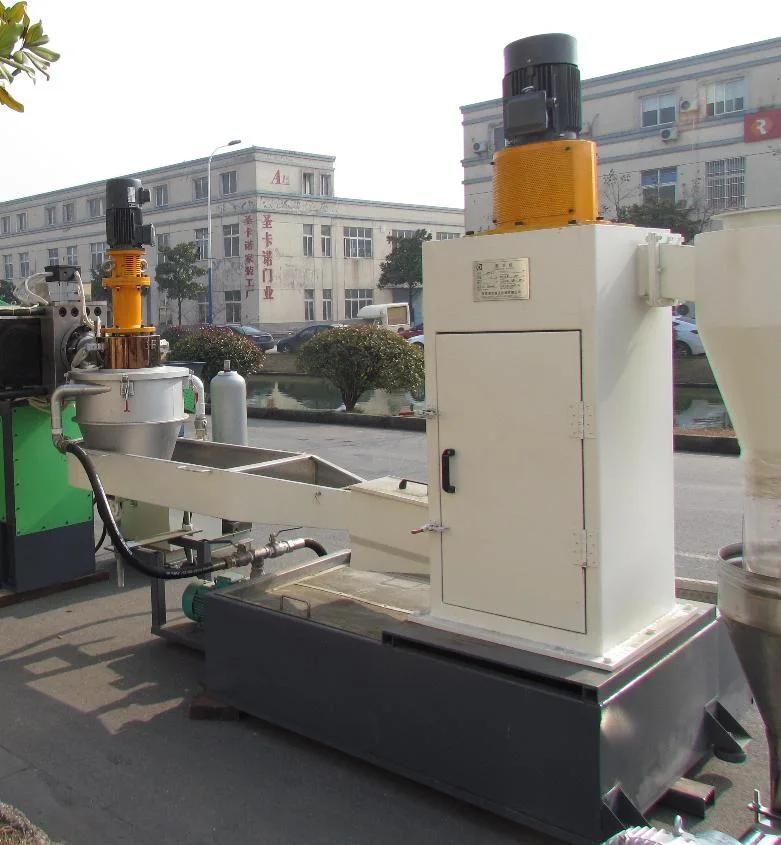

Machine Photos
Ability:
>>LIANDA pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets.
Stability:
>>The pelletizing system is available for 24 hours working non-stop operation.
Efficiency:
>>The pelletizing system have very low consumption values for electricity, water and labor.
Control:
>>Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control.
Service:
>>Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.
