• Model NO.：BDX
• Computerized：Computerized
• Certification：CE
• Delivery：Around 30 Working Days
• Transport Package：Wooden Case or Wooden Pallet
• Specification：single shaft
• Trademark：sevenstars
• Origin：Zhangjiagang Jiangsu China
• HS Code：8479820090
• Production Capacity：Depend on The Model

Basic Info.

Model NO. BDX Computerized Computerized Certification CE Delivery Around 30 Working Days Transport Package Wooden Case or Wooden Pallet Specification single shaft Trademark sevenstars Origin Zhangjiagang Jiangsu China HS Code 8479820090 Production Capacity Depend on The Model

Product Description

Factory Price of Single Shaft Shredder
Application
This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays, ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption. Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.

Working flowchart and final material size
Shredding the big hard plastic waste into 40mm pieces,
Drop into crusher directly, crush the pieces into 10mm scraps

Properties:
1. Rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. Knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° To continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° To use;
5. Main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. Hydraulic pusher, an independent power systems, solid structure, smooth operation;

Model	WT-S600	WT-S800	WT-S1000	WT-S1200	WT-S1400	WT-S1500
feed opening(mm)	600*600	800*610	1230*800	1000*1400	1200*1400	1500*1500
rotor dia(mm)	φ220	φ400	φ400	φ400	φ450	φ500
rotor speed(rpm)	85	85	85	85	85	85
rotary blade(pcs)	28	46	58	70	88	132
fixed blade(pcs)	4	4	4	4	4	4
cylinder stroke(mm)	500	850	1000	1000	1000	1000
hydraulic power(kw)	2.2	2.2	3	4	4	4
screen diameter(mm)	Ø20-80	Ø 20-80	Ø 20-80	Ø 20-80	Ø 20-80	Ø 20-80
main motor(kw)	18.5	37	45	55	75	90
output(kg/h)	300-400	500-700	700-900	900-1000	1100-1200	1200-1300

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

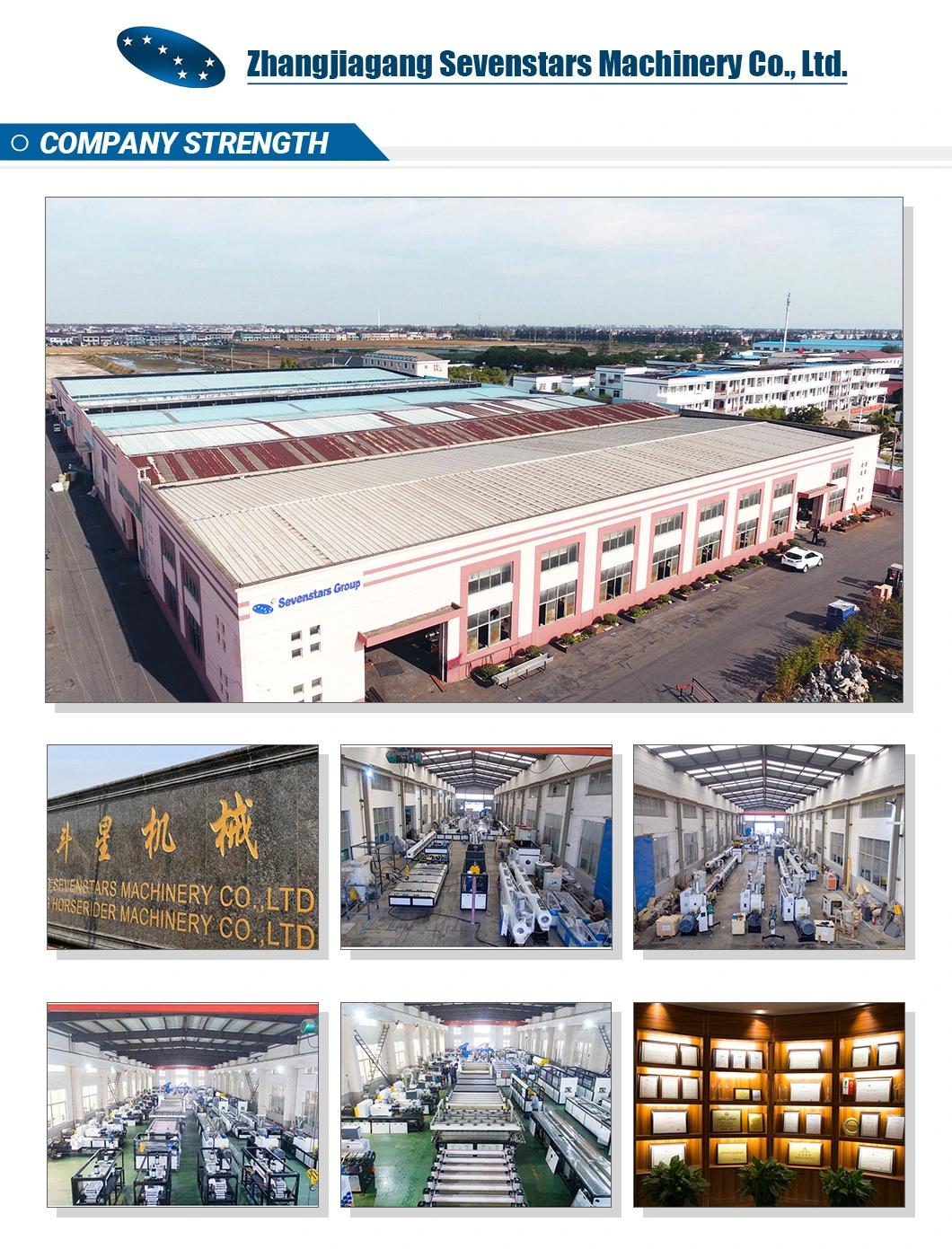

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
