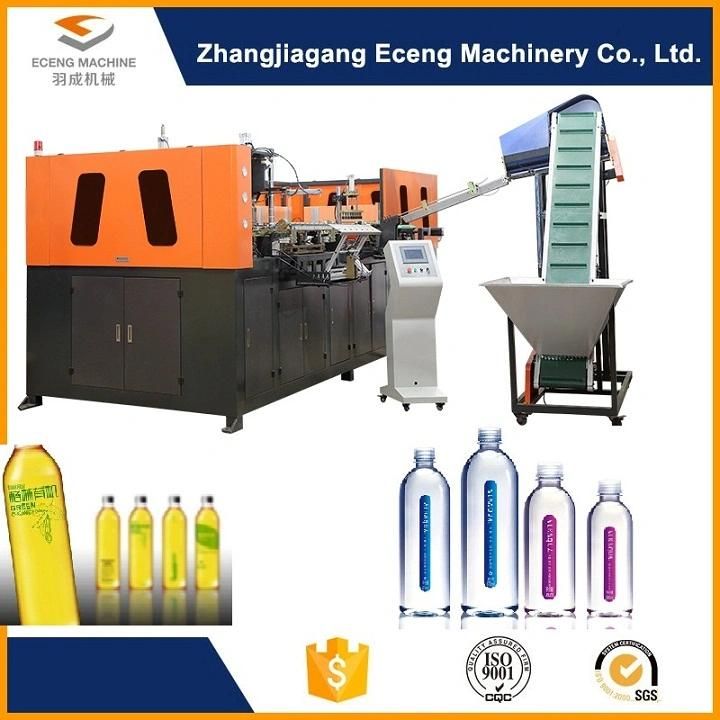

Price Automatic Pet Bottle Blow Moulding Machine

Zhangjiagang Eceng Machinery Co., Ltd.
  • Type:Stretch Blow Molding Machine
  • Raw Material:PET
  • Making Method of Parison:Stretch Blow
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008

Base Info

  • Model NO.:YCQ-2L-8E
  • Color:Orange
  • Bottle Material:Pet
  • Cavity:8
  • Product Max Volume:2L
  • Transport Package:Wooden Package,According to Customer′s Request
  • Specification:CE ISO SGS
  • Trademark:Eceng
  • Origin:Zhangjiagang Jiangsu
  • HS Code:8477300000
  • Production Capacity:100per Year

Description

                           ItemYCQ-2L-8EBottle type specificationCavity8Theory output8000-9000Max.volume2LBottle mouth maximum overall diameter28-38mmBottle biggest diameter100mmBottle maximum height330mmPower specificationsLight tube quantity32pcsMaximum heating power48KWAll electric machine installation51KWActual consumption35.7KWAir pressure specificationWork pressure7-9kg/cm2Low-pressure gas consumption1600L/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption4800Ltr/minForzen water specificationWork pressure5-6 kg/cm2Temperature range10°CConsumption12000kcal/hrForzen water flow88L/minMachine specificationSize of the machine8.45x1.6x1.9Weight of the machine5ton
3. About price automatic pet bottle blow moulding machine  Eceng YCQ-2L-8E Molding Machine:
    1. Reasonable design, full automatic control, save power and labor.
    2. Adopting high quality components.
    3. Feeding system carries the preform by robot automatically.
    4. Infrared oven heater adopts the quartz lamp to heat the PET tube.
    5. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance nd other benefits.
    6. We have perfect service after sales.
    7. All of the electrical components adopts CE. UL, CCC approved international advaced high-tech product.
    8. All specifications and designs are subject to change without notice.

Price Automatic Pet Bottle Blow Moulding Machine


4.YCQ Series PET Bottle Blowing Machine Advantages:



1) Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.

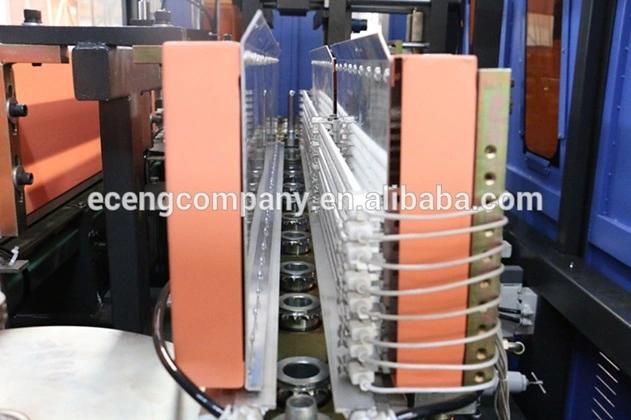

2)Small performs distance heating system



Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.



Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.





3)Efficient and soft perform inlet system

By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
Price Automatic Pet Bottle Blow Moulding Machine

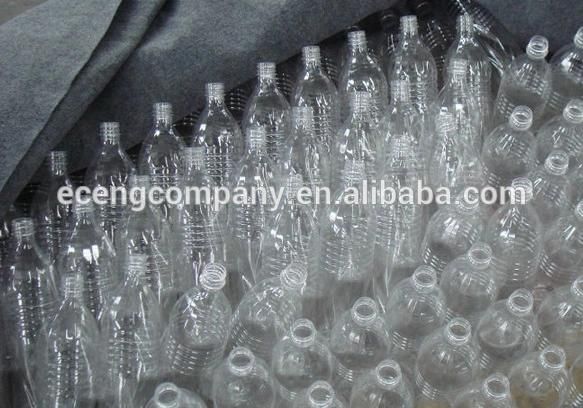

5.Samples photos(preform and PET bottles):
Price Automatic Pet Bottle Blow Moulding Machine


6.Configuration of pet bottle blowing machine:
Price Automatic Pet Bottle Blow Moulding Machine

YCQ Optional items:

1) Exploded bottles ejection unit

During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.

2) HP air recovery system

After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

3) Oven and preform temperature detection system

Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.

Price Automatic Pet Bottle Blow Moulding Machine

Packaging & Shipping

well-known for its fine quality for plastic bottle blowing machine

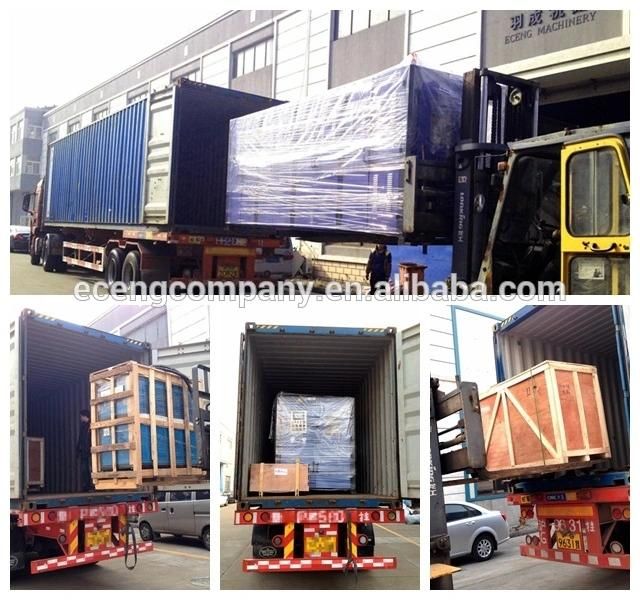

pet bottle blowing machine loading to Container
Price Automatic Pet Bottle Blow Moulding Machine

Our Services

well-known for its fine quality for plastic bottle blowing machine

After sales service

After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

well-known for its fine quality for plastic bottle blowing machine
After sales service
1> Find our products through ecengmachinery.en.made-in-china.com Alibaba,GlobalMarket,Made in China,Globalsources,Tradekey.
2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
3>Every 3 year , we can help to overhaul the machine freely(labor).
4>Free production technology and process configuration.
5> We can help you to design the product line , workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer's journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
