• Model NO.：FDS110-160
• Condition：New
• Application：EPS Foam for EPS Plant
• Warranty：1year
• Transport Package：Standard Export Package
• Trademark：VST
• Origin：Zhejiang, China (Mainland)
• Production Capacity：20 Unit , Month

Basic Info.

Model NO. FDS110-160 Condition New Application EPS Foam for EPS Plant Warranty 1year Transport Package Standard Export Package Trademark VST Origin Zhejiang, China (Mainland) Production Capacity 20 Unit / Month

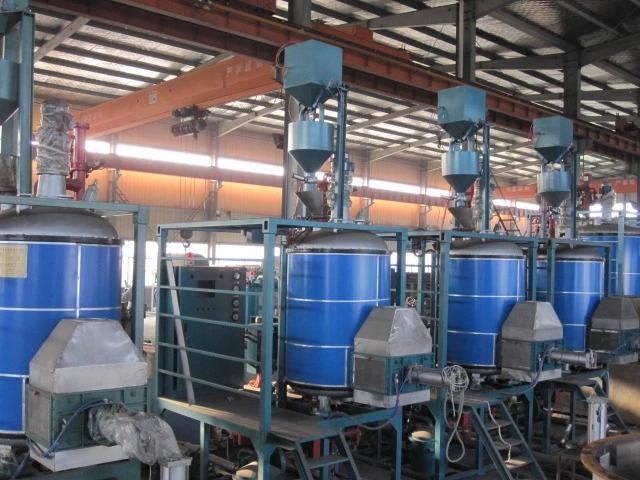

Product Description

Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve

TECHNICAL DATA
Item		FDS-1100	FDS-1440	FDS-1660
Expansion Chamber	Diameter Volume Useable volume	Φ 1100mm 1.4 m³ 1.0m³	Φ 1400mm 2.1 m³ 1.5m³	Φ 1660mm 4.8m³ 3.5m³
Steam	Entry Consumption Pressure	DN50 6-8kg/cycle 0.6-0.8MPa	DN50 8-10kg/cycle 0.4-0.8MPa	DN50 11-14kg/cycle 0.4-0.8MPa
Compressed Air	Entry Pressure	DN50 0.9-1.1MPa	DN50 0.5-0.8MPa	DN50 0.5-0.8MPa
Drainage	Condensate	DN100	DN125	DN150
Throughout	15g/l 20g/l 25g/l 30g/l	550g/l 750g/l 850g/l 950g/l	750g/l 820g/l	900g/l 1100g/l
Connected Load		19Kw	22.5Kw	24.5Kw
Overall  Dimension	(L*W*H)	2900*4500*5900(mm)	6500*4500*4500(mm)	9000*3500*5500(mm)
Weight		3200kg	4500kg	4800kg
