HDPE Plastic Pallet for Storage Blow Molding Machine

Zhangjiagang Dawson Machine Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE

Base Info

  • Model NO.：ABLD150
  • Application：Drum, Table Board, Roadblocks, Medical Bed Board
  • Max. Product Volume：1500L
  • Blow Molding Machine Weight：72 Ton
  • Machine Dimension：11.5*7.5*8
  • PLC Control：Mitsubishi
  • Contactor：Schneider
  • Air Valves：Airtac
  • Hydraulic Valve：Taiwan Hitech
  • Clamping Force：1800 Kn
  • Platen Size：2120(W)*1800(H)
  • Length of Mold：1730-2200mm
  • Close/Open Stroke：1000-2700mm
  • Clamping Stroke Measurement：Transducer Italy Gefran
  • Programmer：Japan Moog
  • Accumulator Capacity：70L
  • Transport Package：Film Packaging
  • Specification：ABLD150
  • Trademark：DAWSON
  • Origin：Jiangsu Zhangjiagang
  • HS Code：8477301000
  • Production Capacity：as Per Samples

Description

extruder1Screw diameter120*2 mm2L/D ratio333Drive motor132*2 Kw4Heating zone with cooling fan6*2 zone5Output/Capacity620~840 Kg/hr(HDPE  particle)6Heating capacity36*2 kwAccumulator  Head1Accumulator capacity70L2DesignFirst in and first out3Heating zone6 zone4Heating capacity64 kw5Max die&pin diameter1000mm6Accumulator push-out stroke measurementTransducer  Italy Gefran7Extruder stopHaveCLAMPING UNIT1Platen size1800X21202Length of mold1730-2200mm3Clamping force1800KN4Close/Open stroke1000-2700mm5Clamping stroke measurementTransducer  Italy Gefran6Hydraulic valveTaiwan HitechPARISON CONTROL1ProgrammerJAPAN MOOG2Servo valve
MOOG
 3Servo cylinderIntergret of die head4Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps

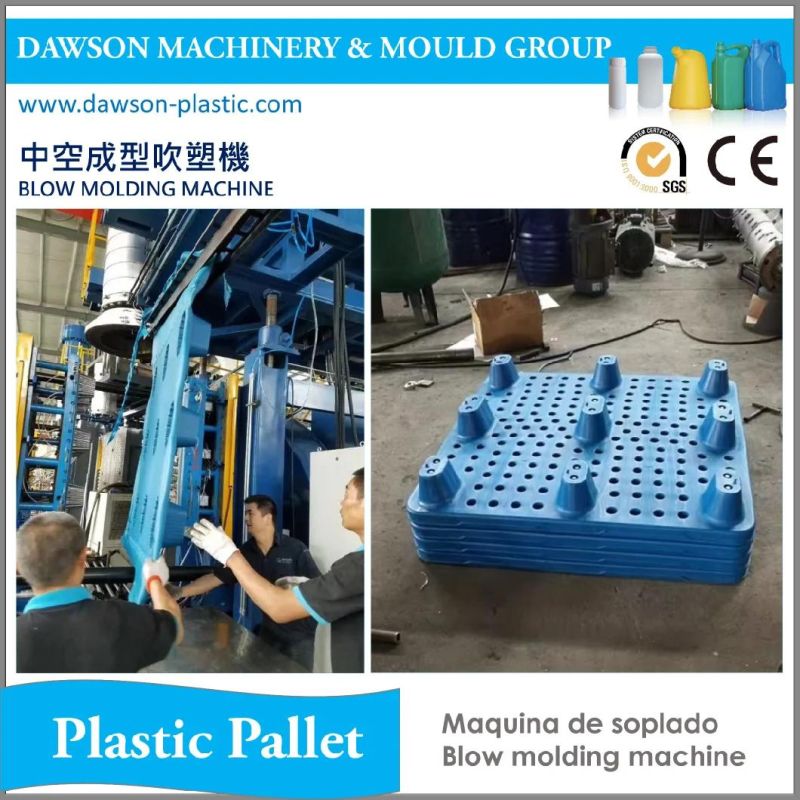

HDPE Plastic Pallet for Storage Blow Molding Machine

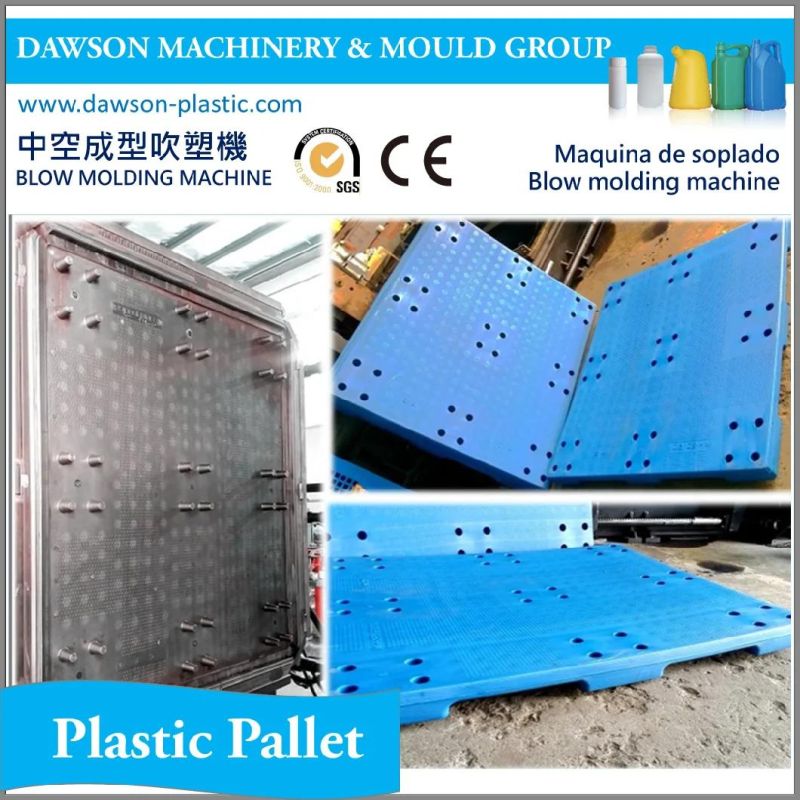

HDPE Plastic Pallet for Storage Blow Molding Machine
