800mm PP Water Cooling Film Blowing Machine (SJSS-65)
Zhejiang Songshan Machinery Co., Ltd.- Type：PP Film Blowing Machine
- Raw Material：PP
- Maximum Folding Width of Film：800mm
- Screw Diameter：65mm
- Automation：Non-Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJSS-65
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Transport Package：Wooden Box, or as Required
- Specification：5*3*5m
- Trademark：Songshan
- Origin：China
- HS Code：84778000
- Production Capacity：30sets,Month
Description
1. The Machine(SJSS series water cooling PP film blowing machine)The product is featured by high transparency, good printing performance etc. Die head rotates 360°continuously to enhance the evenness of film.
2. Main Technical Variables:
General features:
Model: SJSS-65
Maximum Film width: 800mm
Output capacity: around 55kg/h Note: output depends on film width/thickness etc
Power supply: 380V three phase; 50Hz
Raw Material: PP
Dimension (L×W×H): 5000mm×3000mm×5000mm
Weight: About 3000kg
Extruder unit downward blowing type:
Main motor power: 22kw
Screw diameter: 65mm
Screw L/D ratio of screw: 30:1
Speed of screw: 5-100rpm
Barrel cooling: 1/6 Hp cooling blower × 2pcs
Film thickness: 0.01-0.1mm
Gear Box: model 173
Material of screw and barrel: 38CrMoAlA
Heaters: stainless heaters and cast aluminum heaters
Heating capacity: 25kw
Rotary inflation head
Inflation Die: 300mm
Rotating motor: 0.25KW mini moderating motor
Cooling air blower: 3kw
Aluminum Alloy air ring x 1 set (6 air inlet hose)
Automatic hopper loader included
Film bubble ring: 800mm and another 2pcs according to request
PP Film Take Down unit
Film bubble taking motor: 0.75kw
Steel roller/rubber roller length: 1000mm
Guiding roller: 2pcs
Stainless A-frame with Gusset device
Film taking off speed: 5-40m/min
Double winding station
Winding type: by fraction
Winding motor: 15N/M torque motor
Torque motor controlled by speed adjuster, easy for operation
Friction metal/rubber roller: 220mm diameter*1000mm (L)
Maximum winding diameter: 600mm
Air shaft: 4pcs
Control Panel
1. Temperature of barrel and die head controlled by digital temperature controller
2. Inverter controls main motor driving speed and film taking up motor running speed
3. Electronics used are all Chinese top brand
4. Current meters and Voltage meters show the working state of motors
5). Small fan installed to avoid high temperature caused by long time running

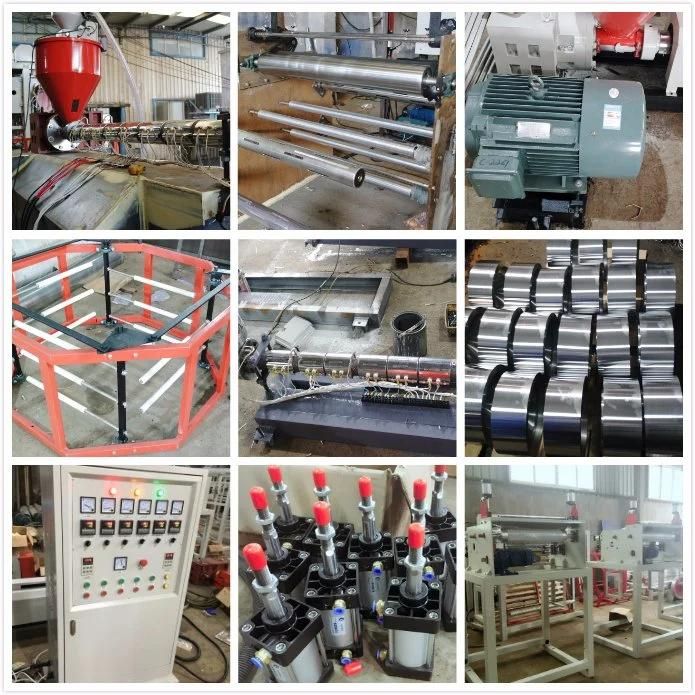

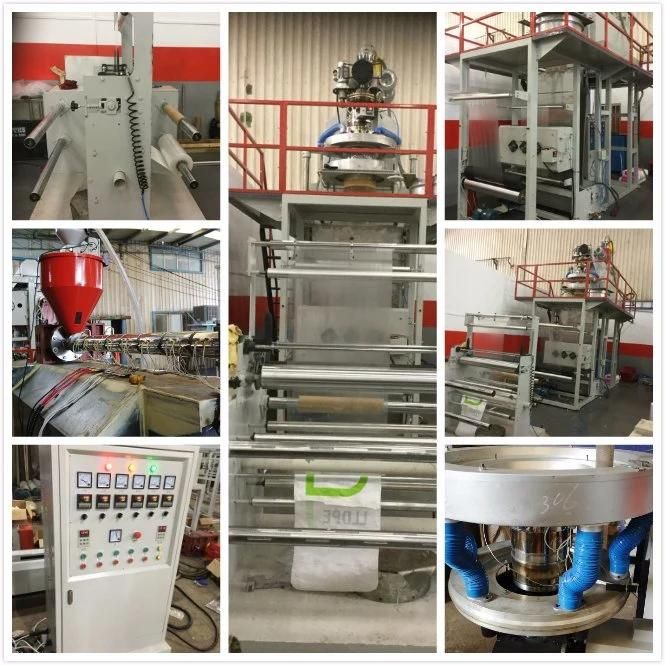

3. More Detailed Pictures Based on Zhejiang, we face the whole country, and approach to the world.
4. High-quality MachinesRuian Songshan Machinery is studying and adopting international standards and industry-leading technology to create high-quality film blowing machine and high-speed bag making machine, and flying high around the world with "integrity, responsibility, innovation and dedication".

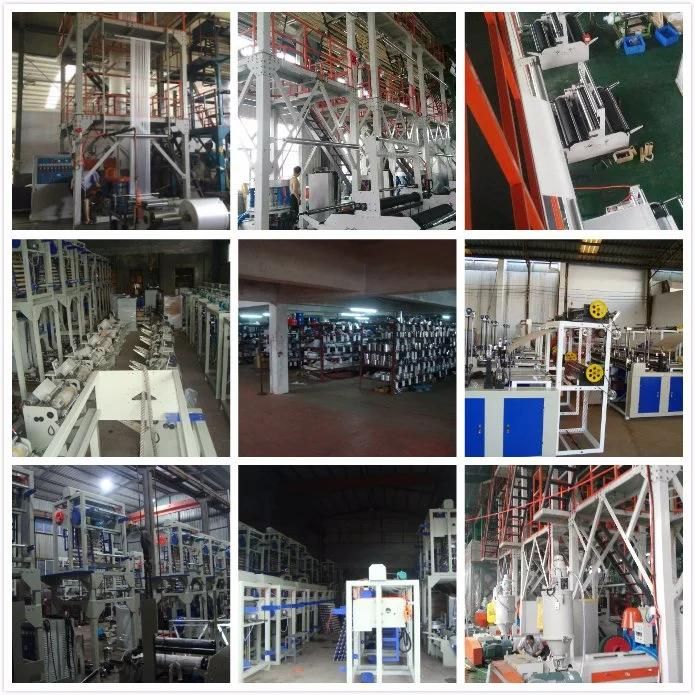

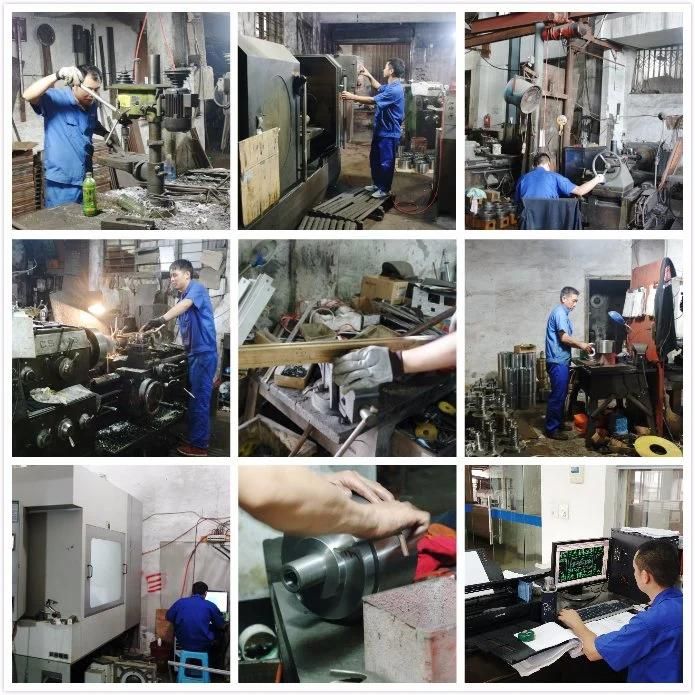

5. Workshop& WarehouseRuian Songshan Plastic Machinery Co., Ltd. Was founded in 1995, located in beautiful scenery city-Rui'an near east sea. With mature technologies and abundant manufacturing experiences, Songshan is a qualified plastic machinery manufacturer that specializes in making all kinds of sealing & cutting machine, all kinds of blown film extruder and all kinds of plastic recycling machine. It is integrated manufacture, sales and after sales.

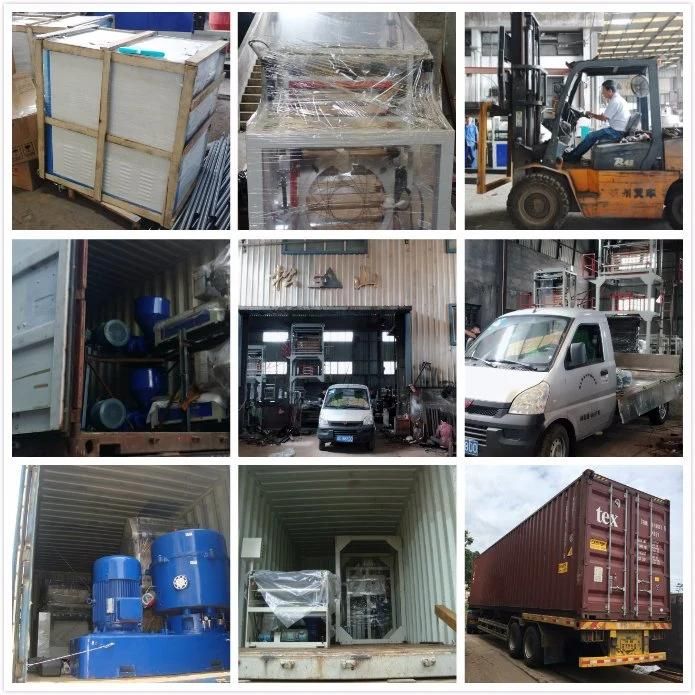

6. Delivery& PackageWith advanced technologies, good quality and perfect after-sales service, our all products are far distributed to Russia, Iran, India, Malaysia, South Africa, Indonesia, and Algeria and so on.
7. After ServiceDelivery Date: 30 days after depositGuarantee: One year. (Also, we will offer you our best after service after one year warranty period as you will afford our technician's cost which includes his visa, air ticket, hotel, food and also their salary USD80 per day per person.)
8. The quality creates the brand.Since "Songshan" establishment, it has become one of the most advanced plastic machinery manufacturer in Zhejiang. We place great emphasis on research and development and search for new and better way to improve our machine.
