PP PE Raffia Yarn Spool/Rope Production Line

Shandong Haidai Intelligent Machinery Co., Ltd.
  • Type：Plastic Raffia Film Yarn Extruder
  • Plastic Processed：PP
  • Product Type：Plastic Raffia Film Yarn Extruder
  • Feeding Mode：One Feed
  • Assembly Structure：Separate Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：HDSLJ-50-70-80-90
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Controlled by Control Panel
  • Screw and Barrel：38CrMoAl & Nitrogen Treatment
  • Screw Treatment：Double Alloy Treatment Good For100% Recycled
  • Speed Synchronous Adjusting System：Synchronous Regulate Whole Machine Speed
  • Stretch Roller：Hard Chrome and Mirror Treatment
  • Lubrication System：Force Lubrication System with Oil Pump
  • Round Beating of Roller：Dynamic Balance Detection of All Rollers
  • Output Capacity：600kg,1000kg,2000kg,3000kg Per Day
  • Line Speed：50m,Min-200m,Min
  • Yarn Size：1000d --100, 000d
  • Quality：Good Quality
  • Loading Time：Within 90 Days After Deposit Received
  • After-Sale Service：Engineer Installation Debugging and Training
  • Technical Support：Yes
  • Warranty：One Year
  • Container：1 20gp and 1 40 Gp Container
  • Transport Package：Container
  • Specification：25m*2.5m*2m
  • Trademark：CNRM
  • Origin：China
  • HS Code：84772090
  • Production Capacity：100set,Year

Description

Item

HDSLJ--70

HDSLJ--80

HDSLJ--90

T-Die Width

600mm

800mm

1000mm

Dia of Screw

70mm

80mm

90mm

Ratio of L/D

33:1

33:1

33:1

Rotation Speed of Screw

20-90r/min

20-90r/min

20-90r/min

Drawing Ration

4--10

4--10

4--10

Power Consumption

100kw/60kw

130kw/80kw

150kw/100kw

Max Outputcapacity

1200kg/24h

2000kg/24h

3000kg/24h

Machine Weight

9000kg

12000kg

15000kg

Machine Dimension

(L*W*H)

25m*2m*2m

26m*2.2m*2.1m

27m*2.2m*2m


(2) Ring twister


Motor modelMain Motor: ZMYA-380-200H-15-80-011Winder Motor:GV-40-1.5KW-10-S-B-G1-LD-H0Maximum output power of the motor(KW)13Total power of the inverter(KW)13Machine dimensions(L×W×H,mm)2350×1050×1450Spool size(OD×ID×H,mm)φ300×φ60×250Applicable yarn range(dia∮)1-5mmTwist range(TPM)20-135Twist directionS or ZTwisting speed(RPM)3500Machine weight(kg)1330Upper cover open total height(mm)2100Production capacity150m/min-200m/minMain electric part and ac invertorsSiemensTransmission typeTiming belt
(5) Spool Winder
ModelHDSW-03
Twine Diameter Range0.5-5mm(PP raffia twine)
Inner Hole DiameterAs required
Traverse Distance150mm/200mm
Voltage380v,3phase,50hz/ customer-made
Winder Power(torque motor)2.5N.m
Twine Feeding Power80w
Speed ControlFrequency converter
Final Spool SizeØ25* *H150mm/200mm
Machine Weight400kg
Machine Dimension1920*920*1550mm



(6) ball winder

ItemTechnical details
Machine model 10DQ150
Main motor2KW SIEMENS
Winding reducer motor0.37KW German Flender
Arm motor0.4KW,SIEMENS
Total power3KW
Rotation speed of main motor3000r/min
Frequency converter power3KW
Machine dimension3800*1330*1540mm
Ball outer diameter180mm
Max Ball weight1000g
Yarn size≤3mm
Winding speed0-600rpm
Machine weight1800kg


3. Product Overviews

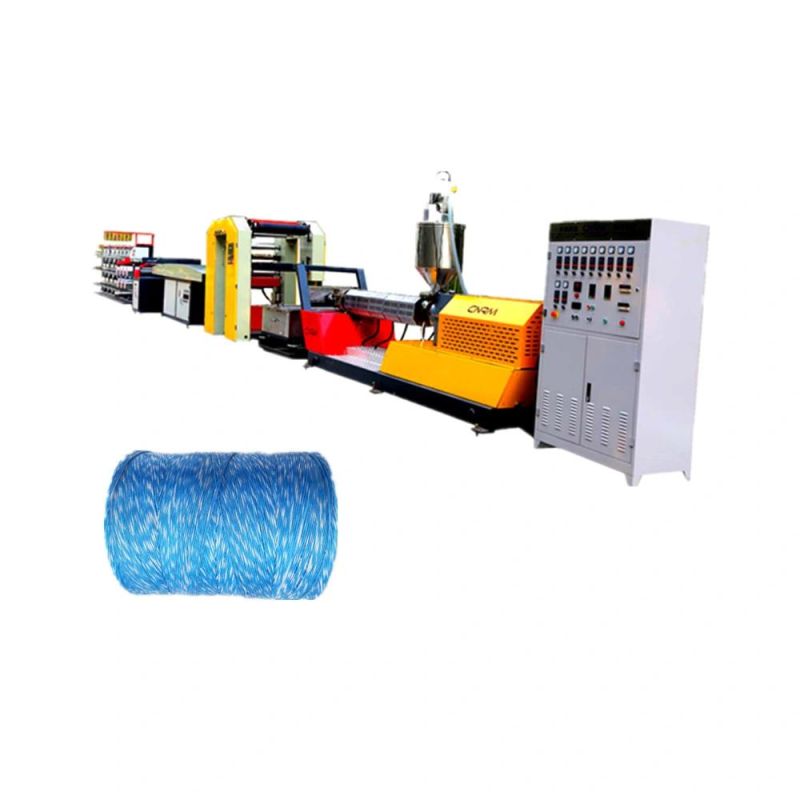

(1) PP raffia extruder
PP PE Raffia Yarn Spool/Rope Production Line

(2) Ring twister
PP PE Raffia Yarn Spool/Rope Production Line

(3) Rope making machine

PP PE Raffia Yarn Spool/Rope Production Line
(4) High speed inflow twister

PP PE Raffia Yarn Spool/Rope Production Line



(5) Ball winder

PP PE Raffia Yarn Spool/Rope Production Line


(6) Spool winder


PP PE Raffia Yarn Spool/Rope Production Line






4.Final products
PP PE Raffia Yarn Spool/Rope Production Line


5.FAQ

(1).Q: Can we send sample for customizing the machine?

    A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other                    demand.

(2).Q: Can we go to your factory discussing more detail and checking the quality of the machine?

    A: Yes, no problem, welcome to our factory and we will do our best to help you.

(3).Q: Can we inspect the machine before delivery?

    A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.

(4).Q: If we have problem on machine or production, can you help us?

    A: Yes, no problem.

   We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer  comprehensive maintenance      options to prevent equipment issues before they become problems. Also we offer one   year guarantee period.  If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.

(5).Q: When can I expect delivery of my item?

    A: All items are dispatched within one week if have stock. Production time will be one month.

(6).Q: Are you a factory or trade company?

    A: We are a factory of yarn extruder machine, yarn twister machine, rope machine, winding and packing machine. We have export right. Learn more about our company, please click here.

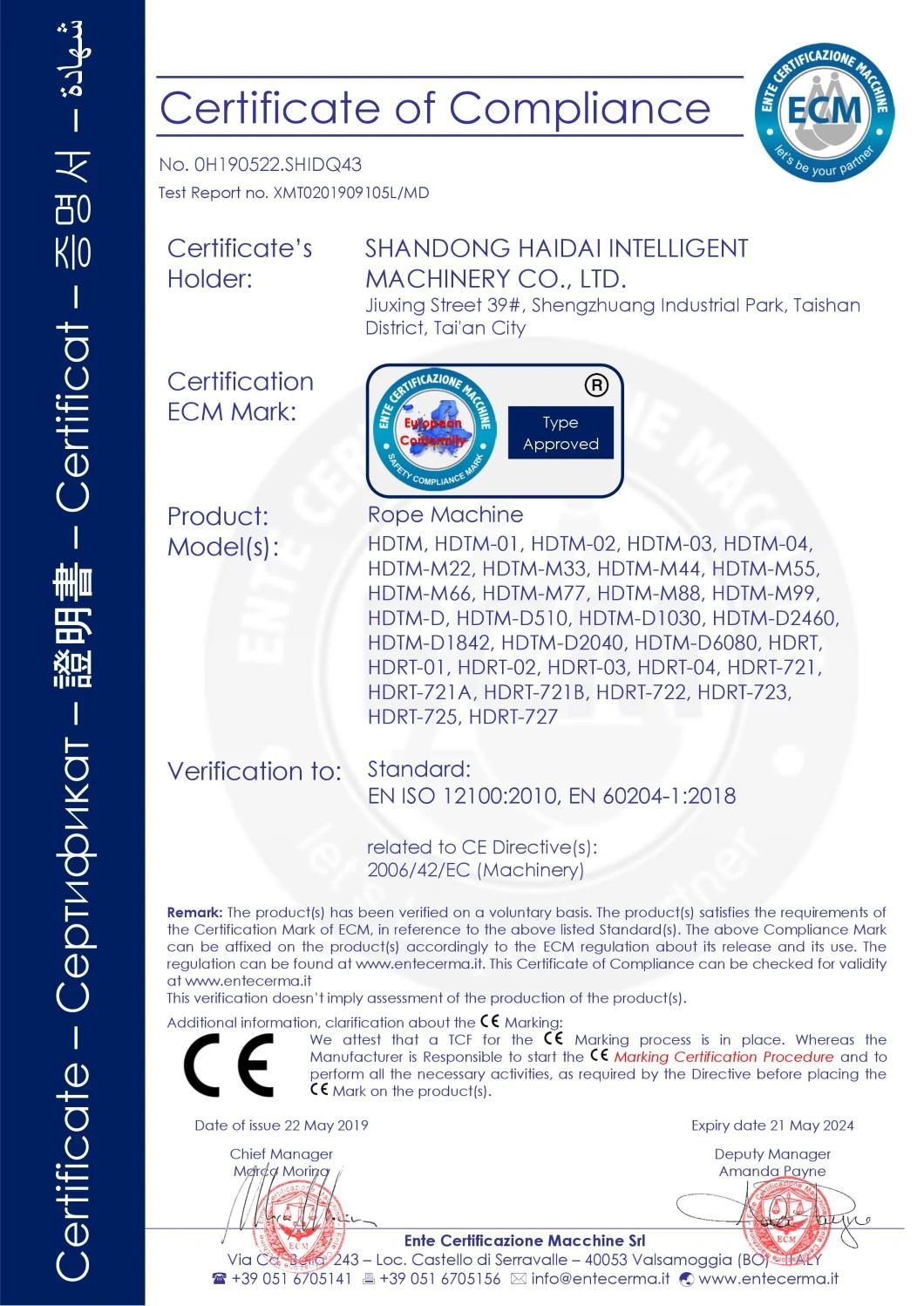

6.Certification
PP PE Raffia Yarn Spool/Rope Production Line
PP PE Raffia Yarn Spool/Rope Production Line

PP PE Raffia Yarn Spool/Rope Production Line

7.Contact us

 PP PE Raffia Yarn Spool/Rope Production Line

   Please feel free to contact us ,24 hours service will for you
