2019 Xiongqiu PP Two Layers ABA Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PP Film Blowing Machine
  • Raw Material：PP
  • Maximum Folding Width of Film：900mm
  • Screw Diameter：55mm*2
  • Automation：Automatic & Manual
  • Computerized：Computerized

Base Info

  • Model NO.：FMP2-1000S8
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Size：L*W*H: 5m*3.5m*5.5m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Film for Container Shipment
  • Specification：double layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

PPA / PPEfilm width(mm)150--700300--900400--1100thickness0.02--0.15mmscrew diameter Φ45mm * 2 Φ55mm * 2 Φ65mm * 2L/D ratio28:1die diameter Φ220mm Φ330mm Φ430mmdie structureSpiral mandrel die chrome plated surface 40Crmain power11kw*218.5kw*222kw*2max output65kg/h85kg/h105kg/hTorque motor winderoptional equipmentauto-loader device, film surface treater, air compressor, rotary die head, draging rotary

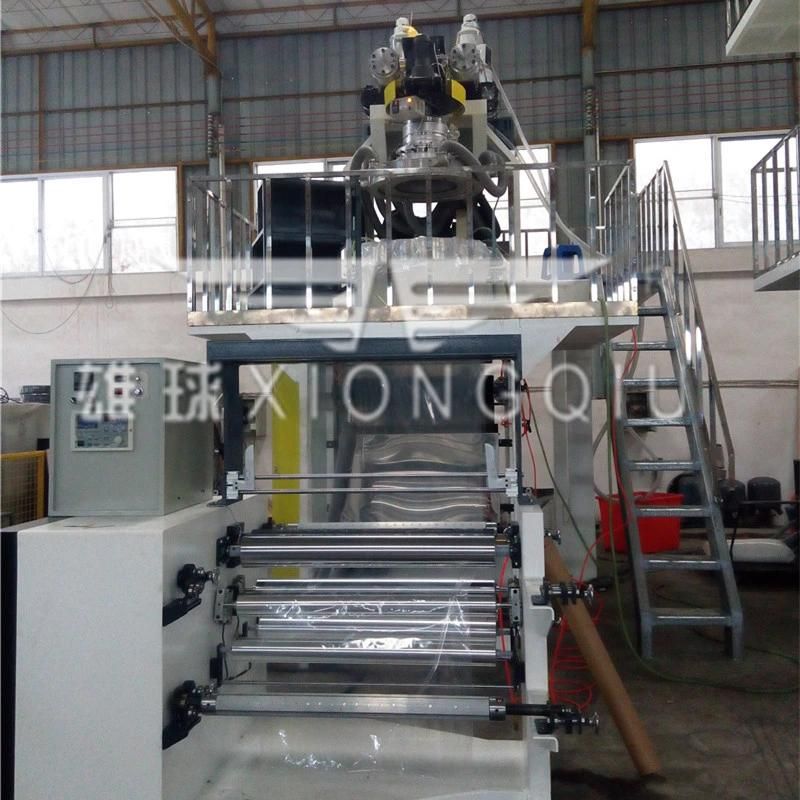

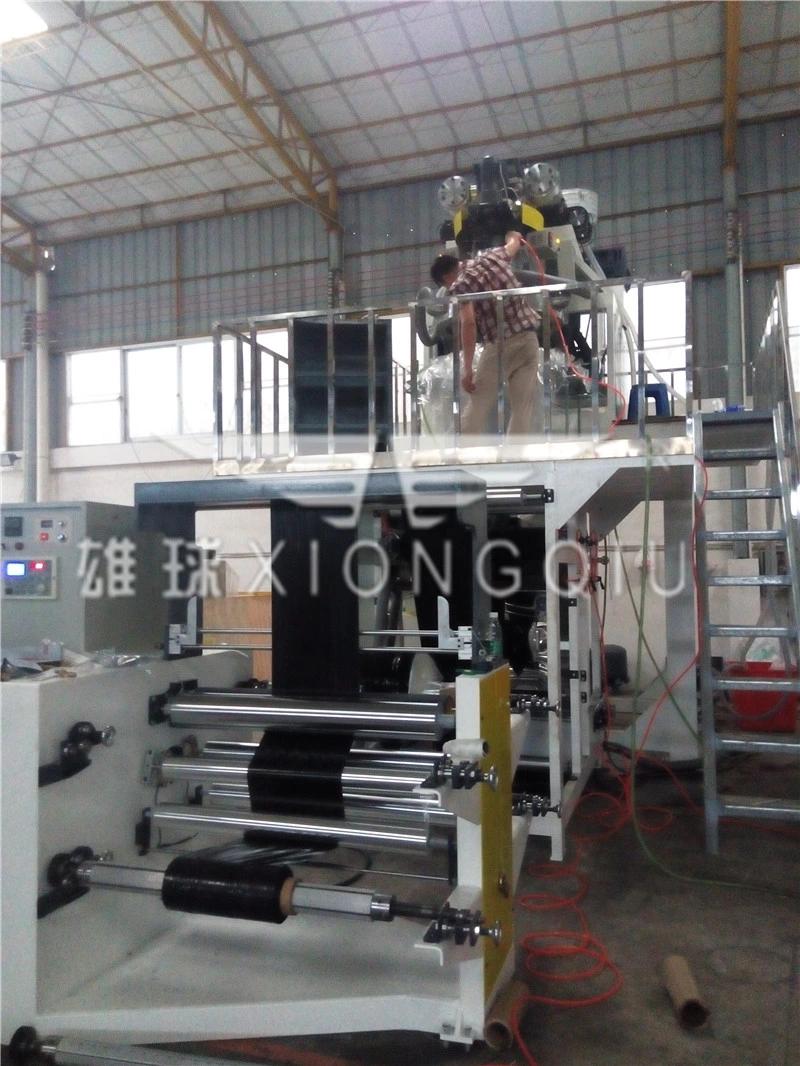

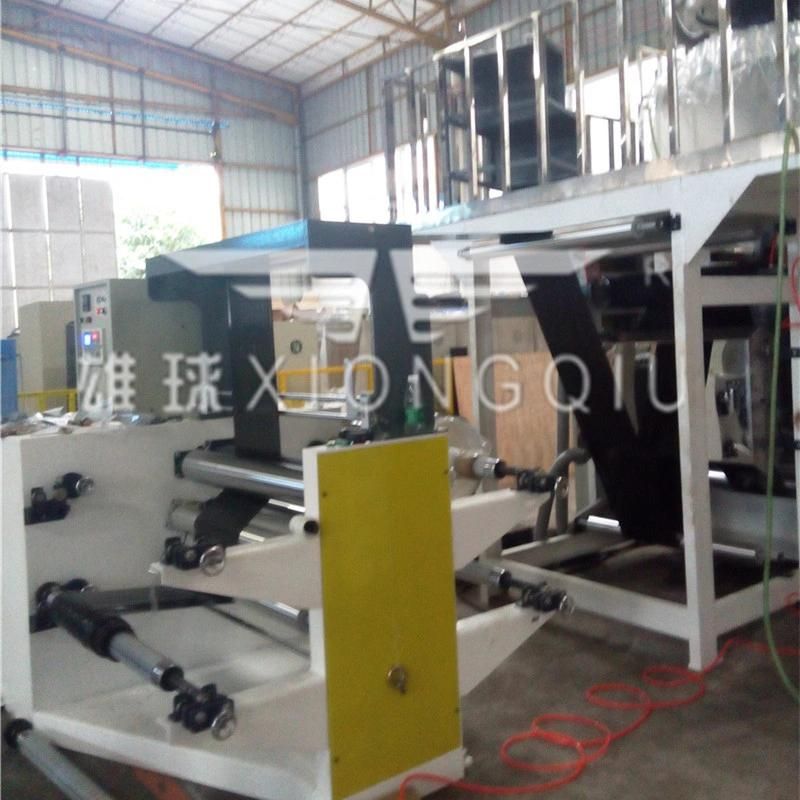

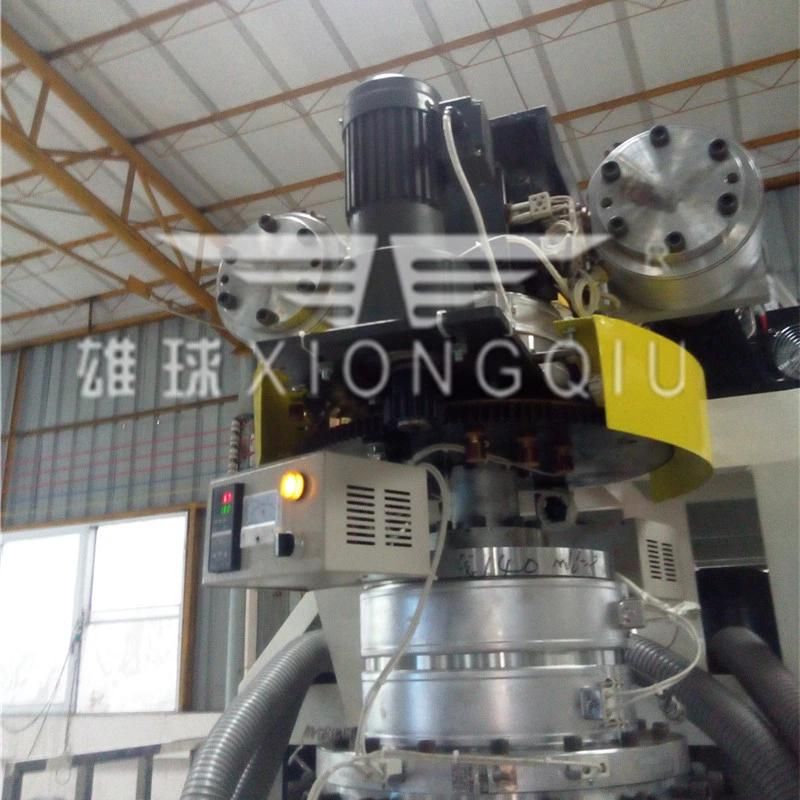

Pictures for reference:

2019 Xiongqiu PP Two Layers ABA Film Blowing Machine
2019 Xiongqiu PP Two Layers ABA Film Blowing Machine
2019 Xiongqiu PP Two Layers ABA Film Blowing Machine
2019 Xiongqiu PP Two Layers ABA Film Blowing Machine
2019 Xiongqiu PP Two Layers ABA Film Blowing Machine
2019 Xiongqiu PP Two Layers ABA Film Blowing Machine
