• Model NO.：ZC-180H Water Cooling Corrugator
• Customized：Customized
• Condition：New
• After-sales Service：24 Hours Technical Support
• Pipe Corrugator：Corrugated Pipe Machine
• Transport Package：Wooden Package
• Specification：ID16--OD200mm corrugated pipe extrusion line
• Trademark：ZhongyunTech
• Origin：Weifang, China
• HS Code：84778000
• Production Capacity：90pieces,Year

Basic Info.

Model NO. ZC-180H Water Cooling Corrugator Customized Customized Condition New After-sales Service 24 Hours Technical Support Pipe Corrugator Corrugated Pipe Machine Transport Package Wooden Package Specification ID16--OD200mm corrugated pipe extrusion line Trademark ZhongyunTech Origin Weifang, China HS Code 84778000 Production Capacity 90pieces/Year

Product Description



Features

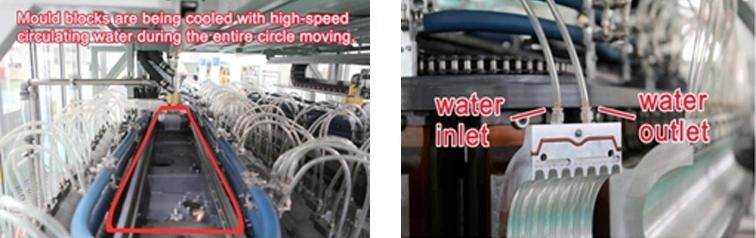

1.High-efficient cooling solution. the mould blocks are cooled with pressure water cooling system continuously,water circulate in sealed channels with pressure to achieve higher cooling efficiency and higher production speed, so as to lower pipe production cost.

2.Full-time cooling. The mould blocks are continuously chilled by the cooling water throughout the whole running track.

3.Highly compatible solution of mould blocks. The mould blocks can be compatible between different models of corrugators so as to make the production more flexible.

4. Mould block temperature control system helps to optimize the pipe quality both appearance and inside.

5. Easy and quick mould block changeover system greatly shorten the down time.

6. No need to adjust corrugator height to recentralize when changeover.

7. Maintenance-free with automatic lubricating system.

8.The corrugator will draw back automatically in case of emergency with UPS back up.

Parameters
