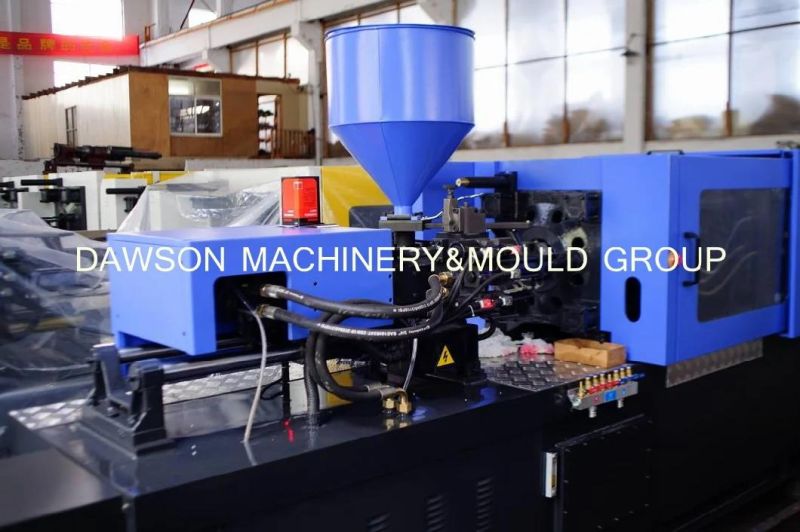

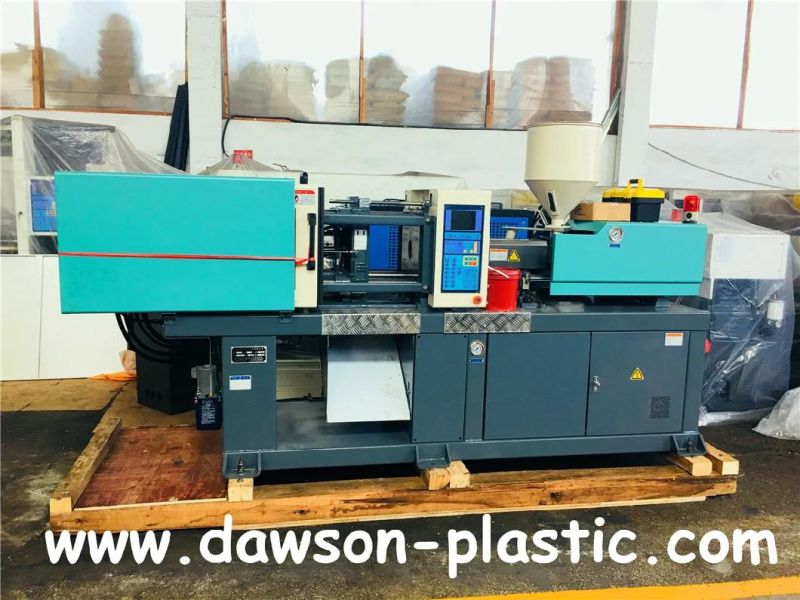

Ce Proved with Servo Injection Molding Machine (SZ-950A)
Zhangjiagang Dawson Machine Co., Ltd.- Type：Injection Blow Molding
- Structure：Vertical and Horizontal Composite
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic
- Automation：Automatic
Base Info
- Model NO.：SZ-950A
- Computerized：Computerized
- Certification：CE, ISO9001:2008, GMP
- Screw Diameter：30-40
- Injection Capacity：113-201
- Opening Stroke：340mm
- Size：4.25*1.2*1.8
- Weight：3ton
- Clamping Force：95ton
- Color：Available
- Screw Torque：510
- Heating Power：7.3
- Screw Speed：0-260
- Transport Package：Nude Package,as Customers Request
- Specification：SZ-950A
- Trademark：DAWSON
- Origin：Zhangjiagang Jiangsu
- HS Code：8477101010
- Production Capacity：30 Sets Per Month
Description
160Screw Speed rpm 0-260 Screw torque N.m 510 Heating power kw 7.3 Clamping force ton 95 Opening stroke mm 340 Mould height mm 135~380 Space between tie bars mm 360×360 Ejector force/stroke KN/mm 25.4/80 Oil pump motor kw 11 Machine Size m 4.25×1.2×1.8 Packing size m 4.5×1.3×2.1 Machine weight ton 3
Advantages of small injection molding machine
1 HIGH LOAD OIL BEARING
The movable part of machine hinge and sliding adopt oil-bearing, decrease the use of lubricating oil, reduce maintenance costs and reduce oil to enhance the clean lines of the machine.
2 SYNCHRONOUS HYDRAULIC PRECISION MOULD ADJUSTMENT MECHANISMS

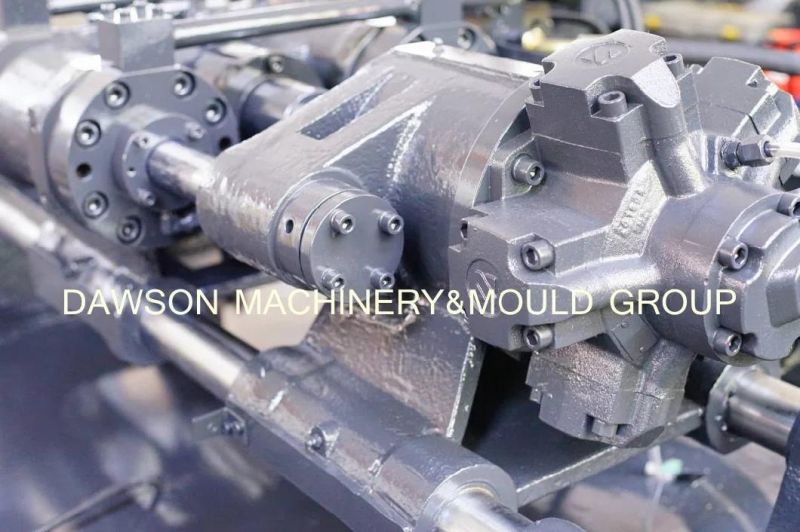

Hydraulic motor, the center location of gear module mould adjustment system, enable the mold adjustment system more perfect.
3 INTELLIGENT DISPLACEMENT DISTRIBUTION OF LUBRICATION SYSTEM
Intelligent displacement oil distribution system, equal distribution of oil and high efficiency of lubrication, extension the life of the reamer.
4 DESIGN AND RESERVE LARGE AUXILIARY SPARE SPACE.
Convenience of the circuit connection for the precision mold of electricity, gas, water oil and configuration flexible delivery device.
5 ADJUSTABLE JUNIOR WARE-RESISTING FEET SLIP
Adjust special polymer wear-resisting materials containing flattering feet, adjustable height, balance weight, durable, and clean.
