Plastic Sheet Extrusion Line Single Screw Extruder

Qingdao Huashida Machinery Co., Ltd.
  • Type:Sheet Extruder
  • Plastic Processed:PP
  • Product Type:Granulating Extruder
  • Feeding Mode:One Feed
  • Assembly Structure:Integral Type Extruder
  • Screw:Single-Screw

Base Info

  • Model NO.:HSD
  • Engagement System:Full Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Don′t Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Application:Produce Electro Fusion Tape
  • Product Size:0.1mm-30mm
  • Transport Package:Standard Package
  • Specification:EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001
  • Trademark:HSD
  • Origin:Qingdao China
  • HS Code:3917230000
  • Production Capacity:50 Units,Month

Description

Basic Info.

Model NO. HSD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Application Produce Electro Fusion Tape Product Size 0.1mm-30mm Transport Package Standard Package Specification EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001 Trademark HSD Origin Qingdao China HS Code 3917230000 Production Capacity 50 Units/Month

Product Description

Plastic Sheet Extrusion Line Single Screw Extruder

This line major used on electro-fusion girth welding joint closure manufacture of HDPE structured wall spiral pipe and pre-insulated pipe(PU foam pipe with HDPE outside casing).
Plastic Sheet Extrusion Line Single Screw Extruder
Plastic Sheet Extrusion Line Single Screw Extruder
Plastic Sheet Extrusion Line Single Screw Extruder

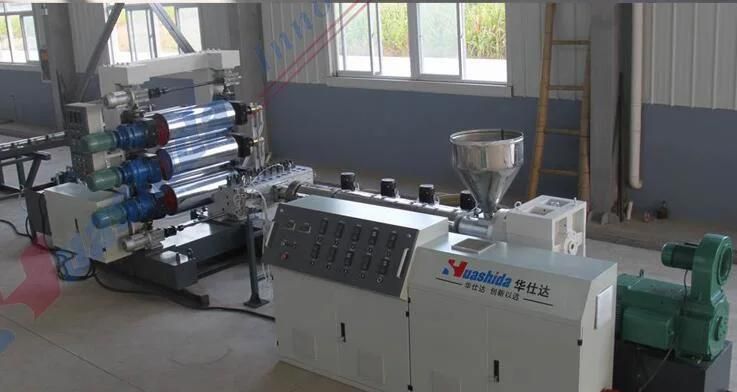

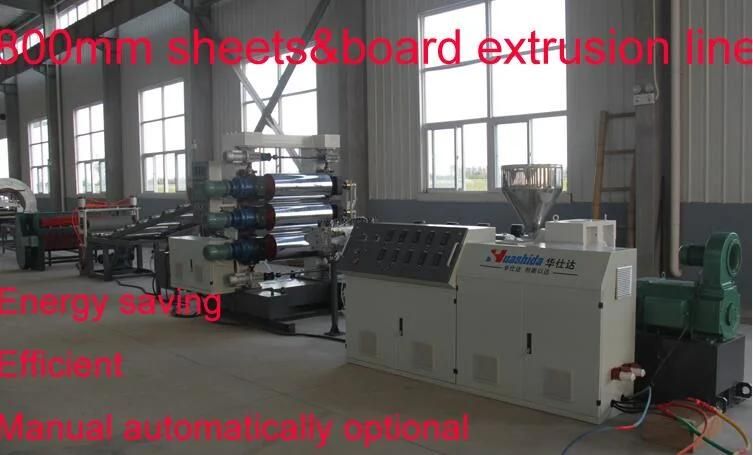

The sheet extrusion line is the most complete, high performance, reliable sheet lines. We offer them as complete systems in 3  different sizes: With a 65mm, 90mm, or 120mm extruder.

The single screw extruder with good motor, digital controls, vacuum venting, screen changer, gear box, and a flexible lip die. Your extruder also can be equipped with the PLC/PCC control system, the specially design screw for HIPS, PP, and PET.

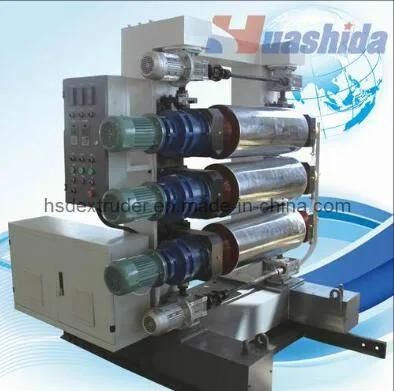

The sheet take-offs (Three rolls calendar) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.
Plastic Sheet Extrusion Line Single Screw Extruder

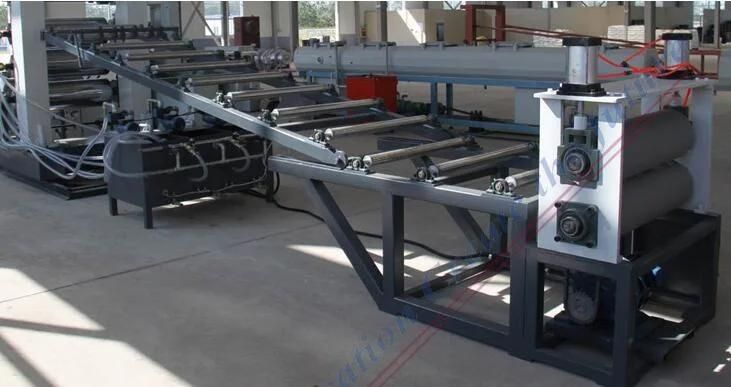

Every lines include an edge trim system.
ExtruderSheet WidthSheet ThicknessCapacityTotal Power
Dimension
SJ65/30Max. 800mm0.2-3mm150Kg/h100Kw18× 2× 2.5
SJ90/30(33)Max. 1200mm0.3-15mm240-260Kg/h150Kw24× 2× 2.5
SJ120/30(33)Max. 3000mm0.5-2.0mm450-500Kg/h250Kw20× 4× 2.5


For more informaiton, please go to website: hsdextruder.en.made-in-china.com
