• Model NO.：BRD
• Condition：New
• Transport Package：Wood Pallet and PE Film
• Specification：PE
• Trademark：BEIER MACHINERY
• Origin：China

Basic Info.

Model NO. BRD Condition New Transport Package Wood Pallet and PE Film Specification PE Trademark BEIER MACHINERY Origin China

Product Description

PE pipe application: polyethylene is now in widespread use in many industries particularly industrial piping systems, including underground gas and water pipelines, where it is the dominant material.

Features:
a-The optimum spiral bush highly improves the output of extruder
b-Accurate temperature control system ensures material melting performance
c-Unique screw design achieves better plasticizing and high quality products
d-Precisely designed gearbox with a high torsion guarantees stable running
e-H sharp frame to decrease vibrating of extruder
f-Advanced PLC operation system realizes synchronization and high quality products

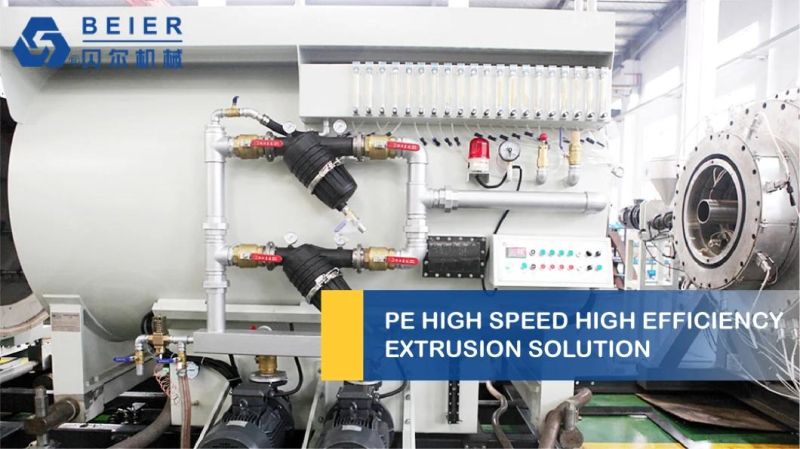

g-Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks

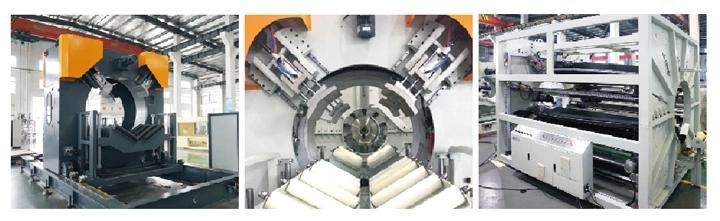

h-Offer stable haul-off unit with 2-12 caterpillars
i-Provide saw &chip free cutting options
j-Low energy consumption, excellent performance, and easy maintenance

Main Technical Parameter

Model	Pipe range(mm)	Extruder model	Extruder motor power(kw)	Max.Output(kg/h)
BRD-63	Φ20-63	BRD60/38	90	450
BRD-110	Φ20-110	BRD60/38	110	500
BRD-160	Φ40-160	BRD60/38	110	500
BRD-250	Φ50-250	BRD75/38	160	680
BRD-400	Φ160-400	BRD90/38	250	1000
BRD-630	Φ280-630	BRD90/38	280	1100
BRD-800	Φ315-800	BRD120/38	315	1300
BRD-1200	Φ500-1200	BRD120/38	355	1400
BRD-1600	Φ1000-1600	BRD90/3/&BRD90/38	250+250	2000
BRD-2000	Φ1000-2000	BRD90/3/&BRD90/38	280+280	2200
