Soft Hard Waste Plastic Film Woven Bags Crush Wash Dry Production Line
Jiangsu Acemien Machinery Co., Ltd.- Material Processed：Bottle,Film,Bag,Pipe etc
- Plastic Type：PE PP HDPE LDPE Pet BOPP etc
- Screw：Double-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：ACPE-1
- Output：300-2500 Kg,H
- Guarantee Period：12 Months
- Delivery Time：30-90 Workdays
- Transport Package：Wooden Case ,Plastic Film(or Customer′s)
- Specification：PE 300-2500
- Trademark：ACEMIEN
- Origin：China
- HS Code：84778000
- Production Capacity：350 Sets,Year
Description
Total10 sets All brands can accoring customer's requirements.

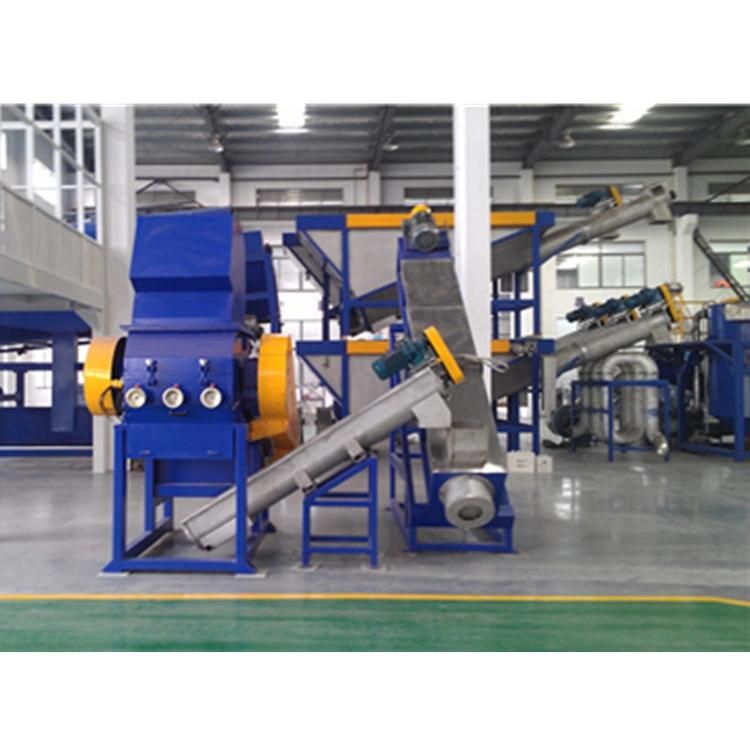

We can design a complete films washing line according to your request.
1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.

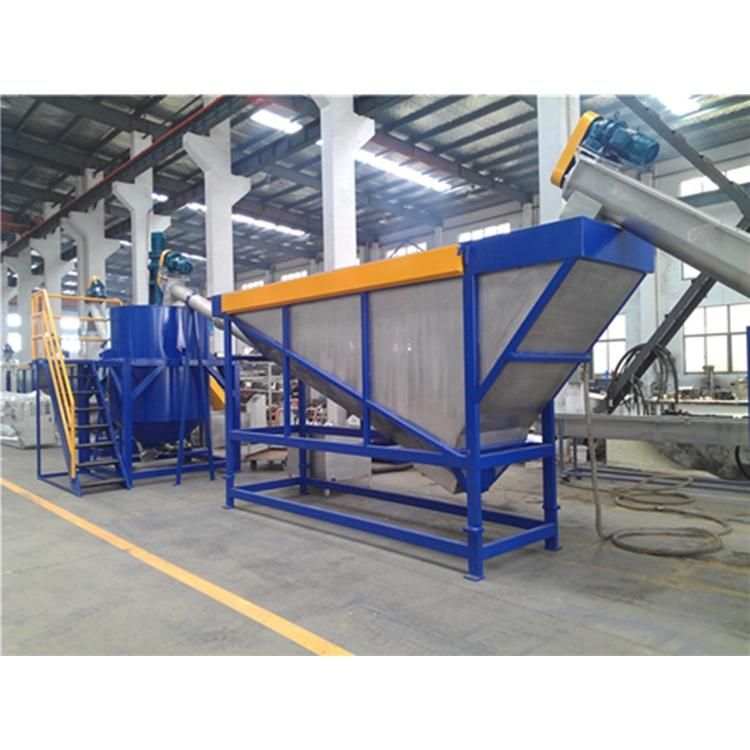

5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
General information(Take capacity 500kg/h Waste Film Recycling Production Line as example):
Payment: T/T,L/C
Delivery: 45-90 days
Origin: China
Minimum Order: 1 set
Packing: wooden case with plastic film(also can according to customer's requirements)
Inspection: in house
Guarantee: 12months
Services:After shipping,two engineers will go to customer's company to install and test machine,and teach customer's workers the operative skills. - pre-sales services:
we will take customers to visit our factory and check the machines quality from airport/bus station/train stations.
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, control method etc. - after sales services:
we will offer electric diagram, installation diagram, usage manual.
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services etc.
- we will offer customers spare parts at cost prices all life long of the machines .
Jiangsu Acemien Machinery Co.,Ltd, Our company was founded in 2013. We concentrate on five series equipment,as follows:
1)PVC Synthetic resin tile extrusion equipment
2)PVC Imitation marble sheet and profile extrusion equipment
3)Plastic recycling and granulation equipment
4)Conventional extrusion equipment such as pipe/profile/sheet
5)Auxiliary equipment such as mixer/crusher/pulverizer.
Last year, Our ACEMIEN COMPANY mainly exported to Sri Lanka, India, Indonesia, Vietnam, Turkey, Tanzania, Iran, Turkmenistan, etc.
In China, Acemien Company sales of 200-300 sets equipment.In order to expand production, many customers have bought equipment from our company again.
We can design a complete films washing line according to your request.
1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.
5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
General information(Take capacity 500kg/h Waste Film Recycling Production Line as example):
Payment: T/T,L/CDelivery: 45-90 days
Origin: China
Minimum Order: 1 set
Packing: wooden case with plastic film(also can according to customer's requirements)
Inspection: in house
Guarantee: 12months
Services:we will take customers to visit our factory and check the machines quality from airport/bus station/train stations.
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, control method etc.
we will offer electric diagram, installation diagram, usage manual.
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services etc.
- we will offer customers spare parts at cost prices all life long of the machines .
Jiangsu Acemien Machinery Co.,Ltd, Our company was founded in 2013. We concentrate on five series equipment,as follows:
1)PVC Synthetic resin tile extrusion equipment
2)PVC Imitation marble sheet and profile extrusion equipment
3)Plastic recycling and granulation equipment
4)Conventional extrusion equipment such as pipe/profile/sheet
5)Auxiliary equipment such as mixer/crusher/pulverizer.
Last year, Our ACEMIEN COMPANY mainly exported to Sri Lanka, India, Indonesia, Vietnam, Turkey, Tanzania, Iran, Turkmenistan, etc.
In China, Acemien Company sales of 200-300 sets equipment.In order to expand production, many customers have bought equipment from our company again.
