• Model NO.：SJSZ80,156, 92,188
• Customized：Customized
• Condition：New
• Voltage：380V±10%,50,60Hz(According to Your Need)
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Sheet Size：200-2200mm,0.2-20mm
• Sheet Layer：1 Layer
• Power(W)：55kw,75kw
• Brand Name：Leader Machinery
• Place of Origin：Shandong, China (Mainland)
• Delivery Detail：30days
• Transport Package：Separate Wood Case and Pallet
• Specification：ISO9001-2000
• Trademark：LEADER
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：100set,Year

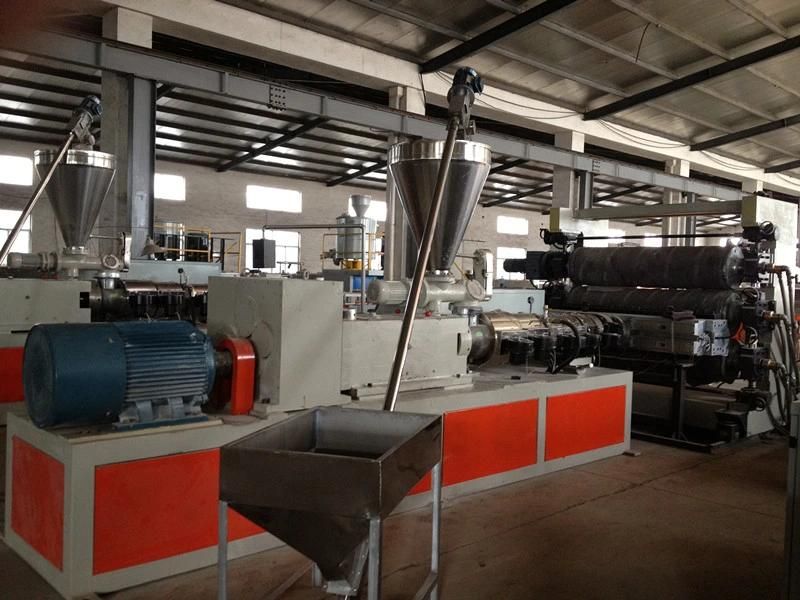

This Line Consists of
1
High Speed Hot/Cold Mixer
1 set
2.
Conical Twin Screw Extruder
1 set
3.
Co-extruder
Optional
4.
Extrusion Die Head T-die Head
JC-Times 1 set
5.
Three Roller Calendar
1 set
6.
Cooling Frame
1 set
7.
Edge Trimming Unit
1 set
8.
Edge Material Crushing Unit
1 set
9.
Double Roller Hauling off Machine
1 set
10
Cutting off Machine
1 set
11
Double Station Winding Machine
1 set

Main technical data:
1. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm

2. Usual sheet thickness:
0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm

3. Extruder:
Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.


4. T -type die head:
Suitable compression ratio to ensure uniform flow stability.

5. Three-roller calendar:
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.


6. Cooling frame:
According to product specifications, configurations with different specifications of the stainless steel cooling roller

7. Edge-cutting devices:
Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

8. Cut off machine:
Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
