Single Wall Corrugated Flexible Pipe Making Machine

Qingdao Hanhai Plastic Machinery Co., Ltd.
  • Warranty：1 Year
  • Product Type：PE Water-supply Pipes
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, BV

Base Info

  • Model NO.：SJ65,33
  • Customized：Customized
  • Condition：New
  • After-sales Service：Engineers Available to Service Machinery Overseas
  • Motor：Simens Beide
  • PLC：Simens
  • Weight for PE Corrugated Pipe Machine：8-15 Ton
  • Diameter for Plastic Corrugated Pipe：16-200mm
  • Other Name：PE Corrugated Pipe Extruder
  • Other Name1：PE Corrugated Pipe Extrusion Line
  • Other Name2：PE Corrugated Pipe Production Line
  • Other Name3：PE Corrugated Pipe Machinery
  • Other Name4：PE Single Wall Corrugated Pipe Extrusion Line
  • Other Name5：PE Single Wall Corrugated Pipe Production Line
  • Screw Material：38crmoala
  • Power：380V,50Hz,3pH
  • Raw Material：PE, PP, PVC
  • After Service：13 Months
  • Speed：5-15m Per Minute
  • Transport Package：Packed by Plastic Film
  • Specification：20m*2m*2.5m
  • Trademark：Hanhai
  • Origin：Qingdao, China
  • HS Code：84772090
  • Production Capacity：100-400kg

Description

GearboxMaterial of the houseQT200Gear type Helical gearsMaterial of the gear20CrMnTiHeat treatment of the gear surfaceQuenchingMaterial of the axes bearings40Cr
Imported high quality bearingMain Motor22KW2.Mold die with modules
    1. mold standard:Internal Dia : 1.5" 2 "
2.2Heater Die adopt casting aluminum heater, mica heater for mouth die.
2.3Calibration Unit :The material of sizing unit is high-quality wearing resistance copper
2.4 Mould block: AL
2.5 All the molds inner runner are chrome plated and good mould steel.
2.6 material:40Cr and nitrided
2.7 modules:50 pairs
3. Corrugated style forming machine   one set
3.1Structure Horizontal
3.2Corrugators up/down moving motor 2.2KW
3.3Guide track The material is 40Cr
3.4Block seat Material is 40Cr, nitrided
3.5Back/Forward Track
3.6Hydraulic system Oil pump: 1.1KW
3.7Corrugators motor AC motor 2.2KW x 1 set
3.8Corrugators gear box Helical gears
3.9Corrugators cooling Block is cooled by air, 0.25KW x5set cooling fan

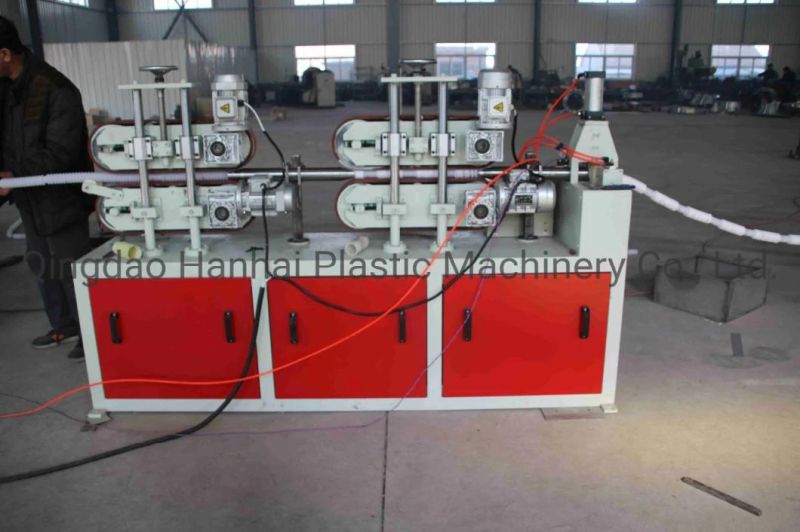

4.  haul off machine and shrink pipe equipment  one set
5. Cutter

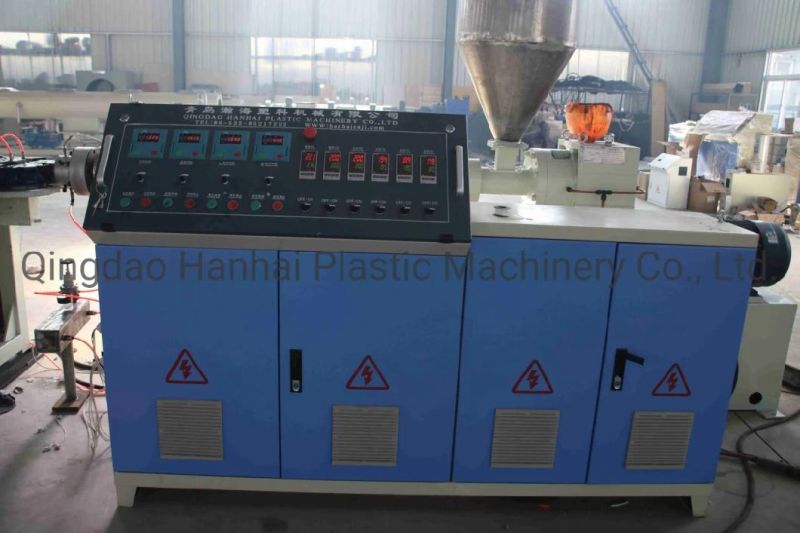

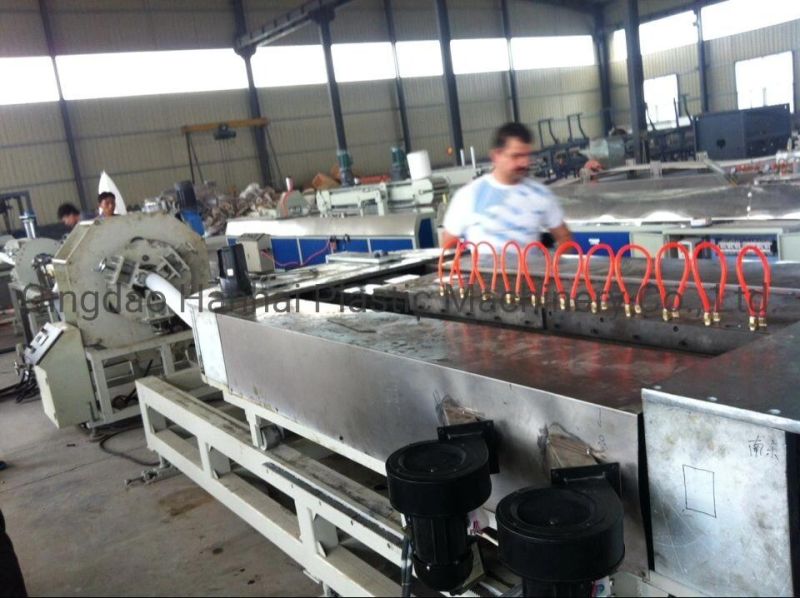

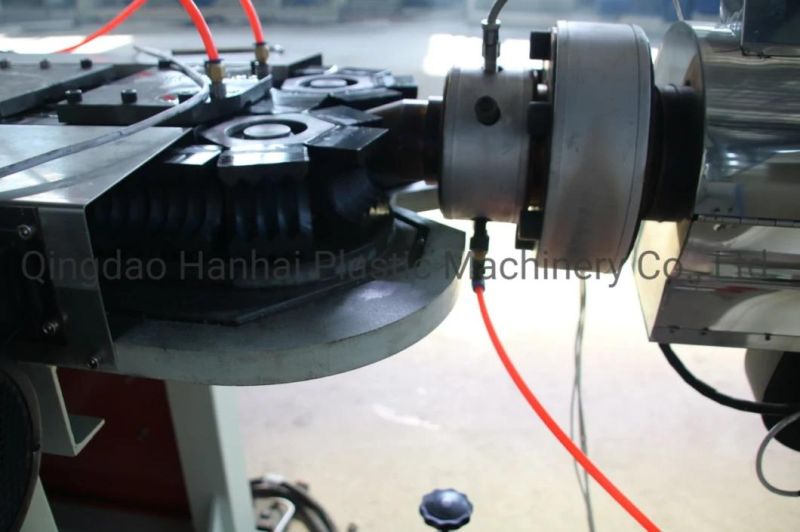

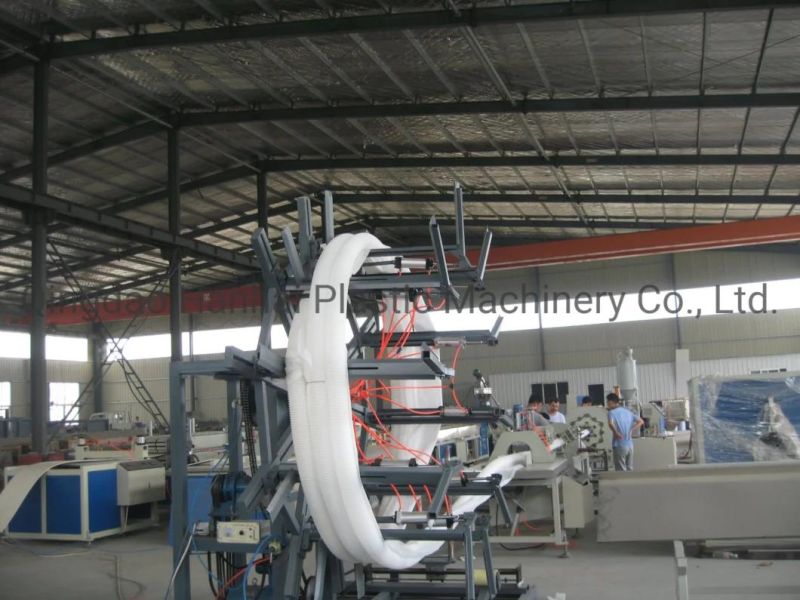

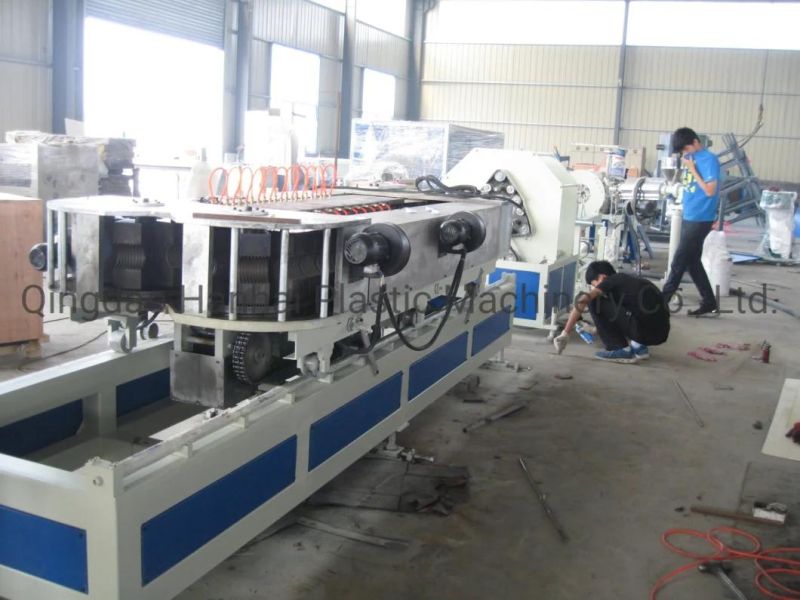

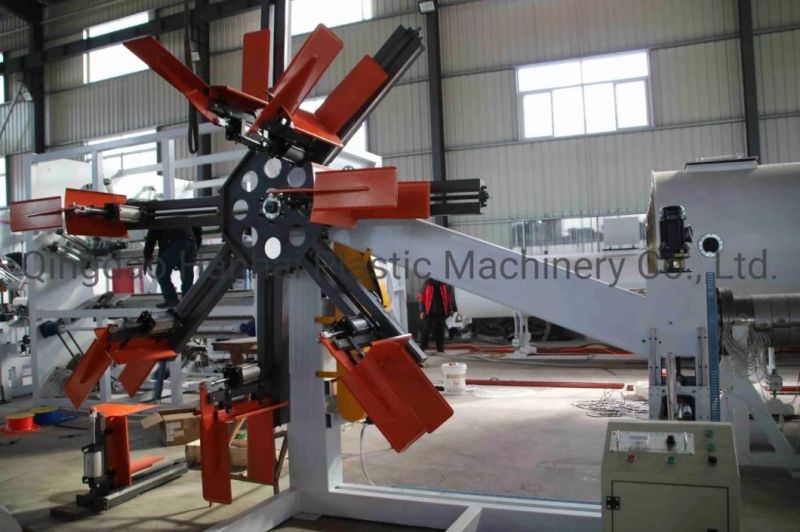

3.Machine pictures:
Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine


You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to   our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers; (3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.

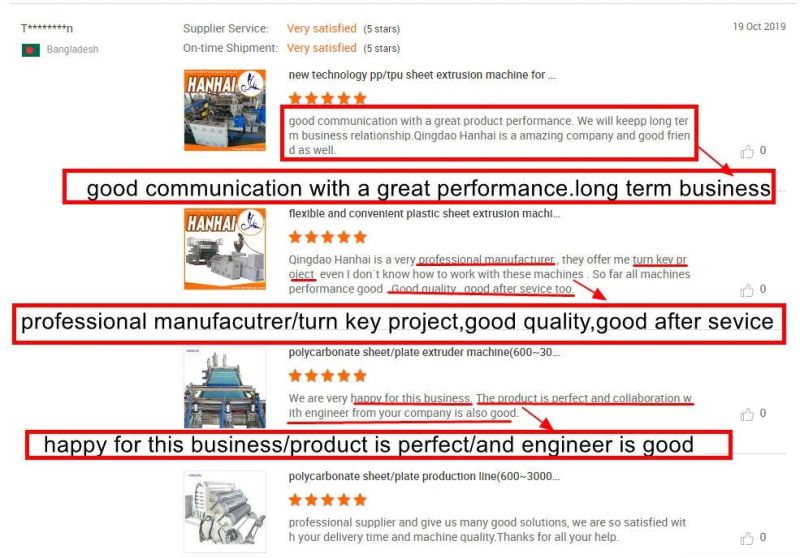

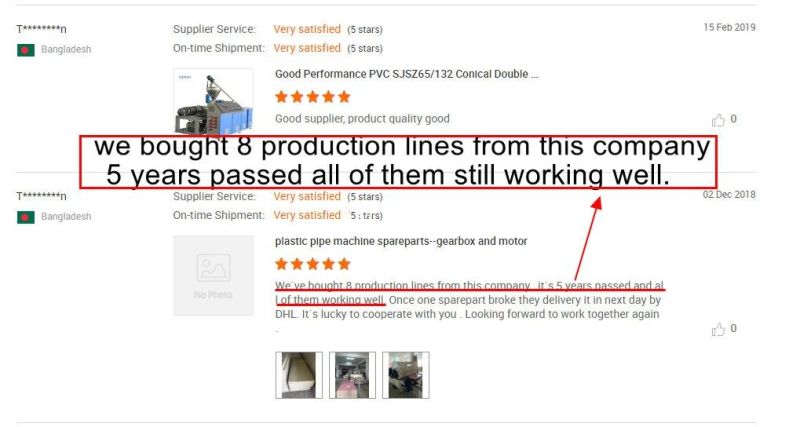

Reviews by customers

Single Wall Corrugated Flexible Pipe Making Machine
Single Wall Corrugated Flexible Pipe Making Machine

FAQ:
1.Are you manufacturer or trading company?
We are manufacturer.

2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.

3.Delivery time: 20~30 days.

4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C(at sight).

5.Warranty: 1 year.

Feel free contact us at any time and most welcome to visit our factory!
