• Model NO.：70mm
• Transport Package：Plywood Case
• Specification：75mm
• Trademark：OULIN
• Origin：China
• HS Code：84779000
• Production Capacity：400-600 Sets Per Year

Basic Info.

Model NO. 70mm Transport Package Plywood Case Specification 75mm Trademark OULIN Origin China HS Code 84779000 Production Capacity 400-600 Sets Per Year

Product Description

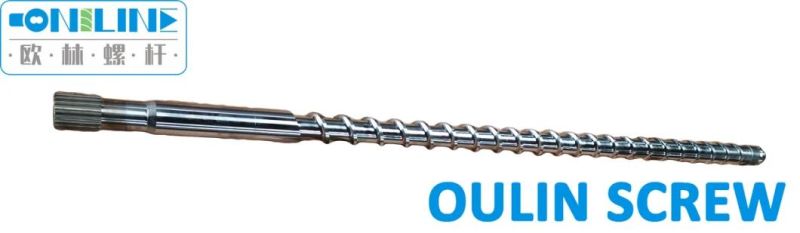

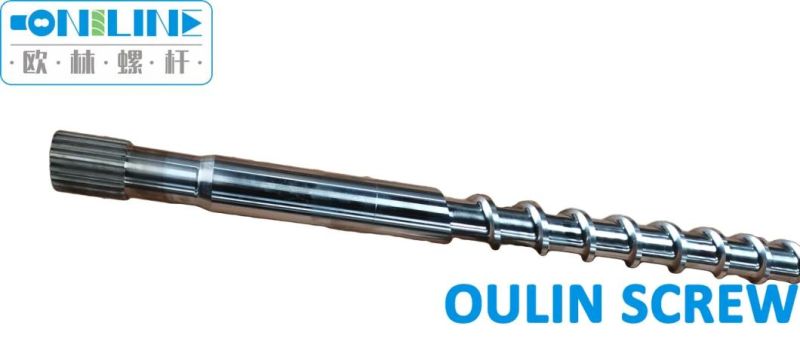

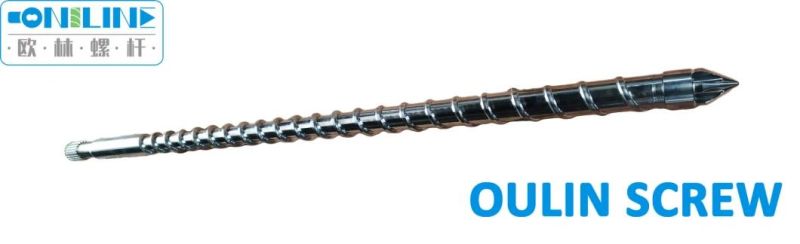

Detail Information For Ferromatik Milacron 450T 70mm SKD61+ Bimetallic Screw for Nylon with 40%-50% Fiber Glass:

Application: for nylon with 40%-50% fiber glass.

Customer's Requirement:  maximum abrasive resistance.

Screw's quality: bimetallic screw, use SKD61 as base material, 30% tungsten carbide powder be added into alloy layer.

Barrel's quality:  OLIN-AR03 bimetallic barrel, excellent abrasive resistance, medium corrosive resistance.

Detail Information For All Brand Injection Molding Screw and Barrel:

Brief introduction:
it can be used in vertical& horizontal type injection molding machine, has different quality for different working sotuation, we can design it according to different material or customers'requirements.

Specification:
Diameter: Ø20mm-Ø300mm
Clamping force: 100KN-35000KN
Shot weight: 30g-30000g

Quality:
there are many different quality can be chosen, from normal nitriding quality to best abrasive& corrosive resistance, welcome to contact us.

Heat treatment:
Advance hardening and tempering
Nitriding treatment
Mid/high-frequency quenching
Vacuum hardening

Technical Parameters:
Nitriding depth: 0.50mm-0.80mm
Nitriding hardness: HRC56-58
Surface roughness: Ra 0.4
Screw straightness: 0.015mm
Alloy layer depth: 3mm
Hardness for alloy layer/ fully hardened screw: HRC56-64



OULIN SCREW:  YOUR LOYAL PARTNER FOR SCREW AND BARREL
