• Model NO.：YS series
• Condition：New
• Dimension(L*W*H)：18000*4000*3000mm
• Application of Pipe：Electronic Wire, Auto Wire Protection, Irrigation
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Cooling：High Speed Water Cooling in Mould
• Warranty：12 Months
• Power(W)：45kw
• Motor Power：11kw,15HP
• Capacity：30-50kg,H
• Production Speed：8-12m,Min
• Inverter：ABB Frequency Controller
• Contactor：French Schneider
• Color：Customer Choice
• Transport Package：Sea Worthy Packing
• Specification：PE
• Trademark：YUSHENG
• Origin：Zhangjiagang City (Near Shanghai), China
• HS Code：8477800000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. YS series Condition New Dimension(L*W*H) 18000*4000*3000mm Application of Pipe Electronic Wire, Auto Wire Protection, Irrigation After-Sales Service Engineers Available to Service Machinery Overseas Cooling High Speed Water Cooling in Mould Warranty 12 Months Power(W) 45kw Motor Power 11kw/15HP Capacity 30-50kg/H Production Speed 8-12m/Min Inverter ABB Frequency Controller Contactor French Schneider Color Customer Choice Transport Package Sea Worthy Packing Specification PE Trademark YUSHENG Origin Zhangjiagang City (Near Shanghai), China HS Code 8477800000 Production Capacity 10 Sets Per Month

Product Description

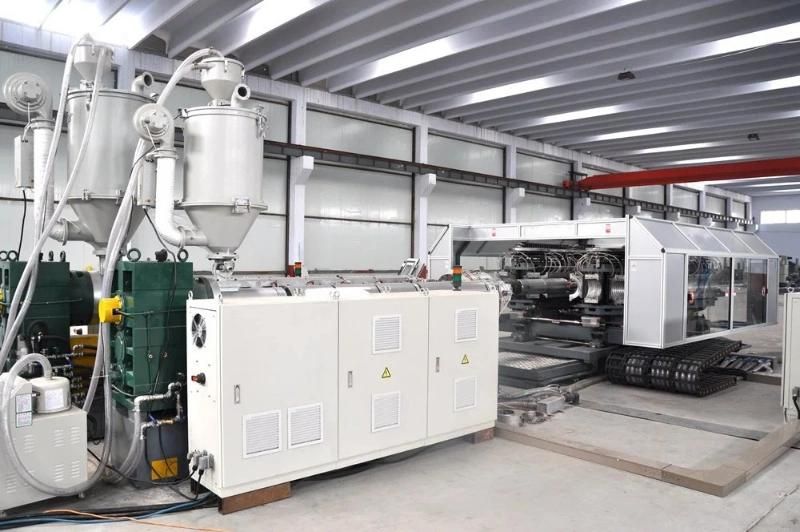

The new high speed PE/PP double wall corrugated pipe machine



Everything we do just make our customers have more competitiveness.So we made targeted effort in terms of intelligence, power consumption and production speed.

• Realize unattended in the process of pipe production.
• Less power consumption depend on the Extruder and the Corrugator to achieve good matching.

• Cycle water cooling in mould,special design Waterway joint and the same central hight of different sizes moulds make preduction Faster.

Contact me and I will give you more details of interest!

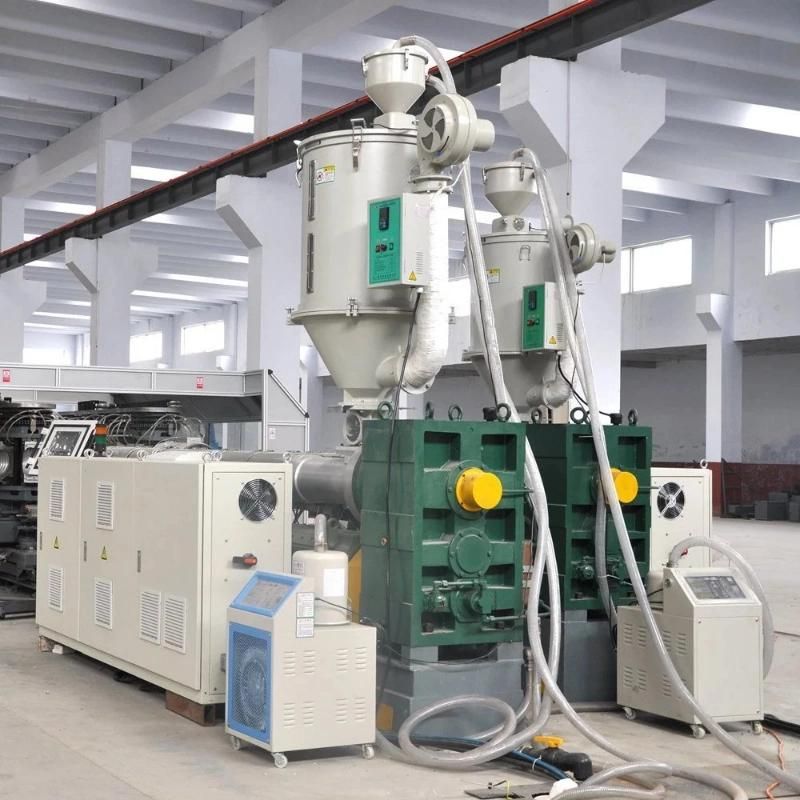

THE EXTRUDER

• Optional innovative extruding system can reduce the electricity consumption at maximum. Good design with buffer function in feeding system can decrease work power of main driver motor maximum; extrusion system with large L/D(36) can have high efficient and stable products extruded.
• Optimized design of extrusion die head can reduce risks of melting overflow and tension manpower on operations; Efficiently eliminate broken flows while extrusion line runs and have pipes extruded by low temperature and pressure. Good operational methods with above advantages can reduce any power consumption greatly.
• Inner and out-layer side adjustment system of Extrusion die head is different from traditional system (firstly loosen, adjust and fasten, validating in duplicates); This new innovation can directly adjust with easy operation and avoid melting overflow, also expand life cycle of die head.



THE CORRUGATOR

• Optimized design for running mechanism of mould blocks, it not only make the mould blocks running more smoothly with smaller resistance and sturdy usages.
• Optimized design for mould blocks cooling water system can run in one direction with high speed running ratio, which completely avoid to damage corrugator severely caused by inverse running of mould blocks
• Innovative clasp style plus sealing in one line with rapid assembly technology of mould blocks can realize easy and fast assembly of mould blcoks on their bearer plates by virtue of the all-new design of bearer plate structure and mould blocks structure. This can greatly ensure reliable sealing in cooling water channel and decrease the workload of changing mould block sizes greatly.
• Quickly loosen or fasten components and rotary side plate for mould blocks, and not need to have connectors.
• Same materials for innovative mould blocks by combination with cooling system, which have optimized maximum heat conductivity, good cooling efficiency, quick forming and high production rate.
• Innovative design of harden treatment does not easily drop off and have long life cycle.

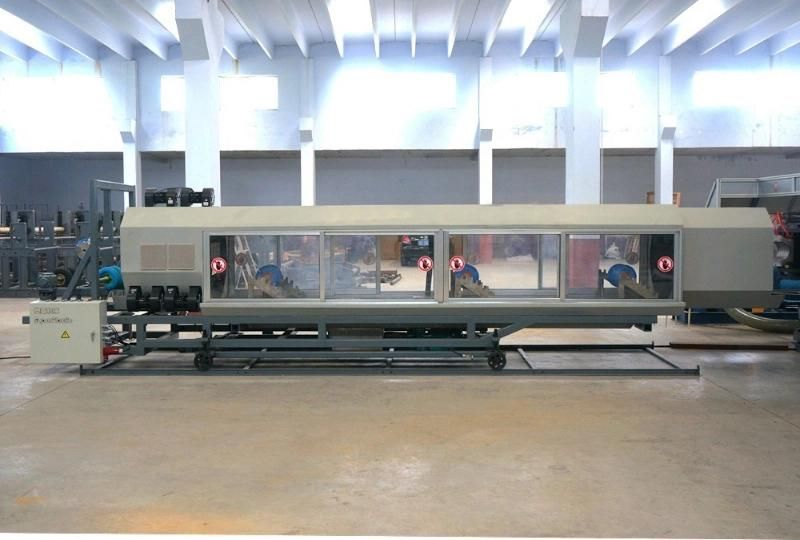

THE COOLING TANK

• Use curtain structure, which is easy to close and open with flexible operation and maintenance.
• Stainless frame in physical tank;
• Water spraying cooling system, smooth pipe tunnel with reliable running performance.
• Equipped with co-transfer hauling off devices, which can efficiently minimum resistance.
• Blowing device with big power to make water on pipes dry.

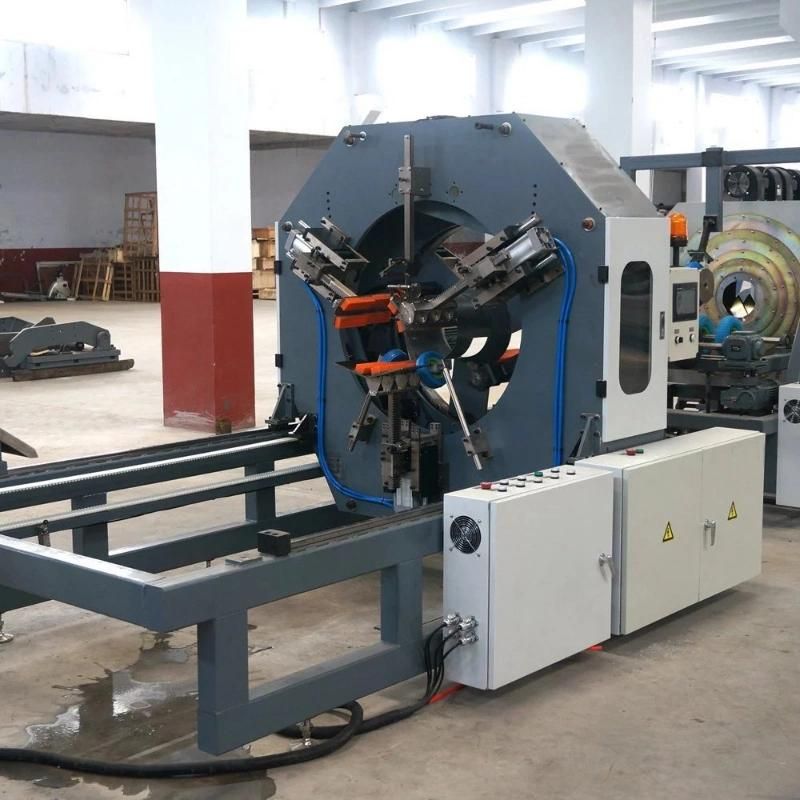

THE CUTTING MACHINE

• Continuous cycle cutting, and start to cut by hydraulic push, validate cutting depth at end steps to ensure good surface.
• Optimize inspection ability and simplify process with precision cutting.
• Randomly cut by automatically and manually.
• Dual hydraulic devices, individually control operation with long and shorte cutter; central layout of parts stalled in spiral plate without titling.

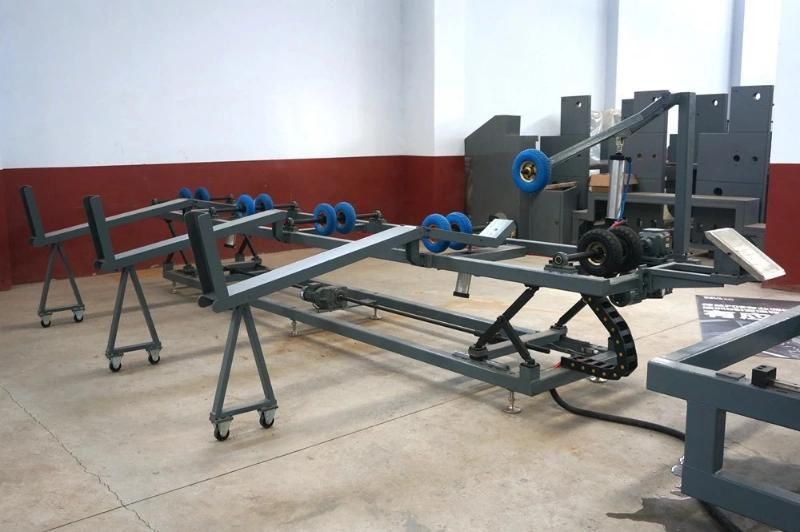

THE STACKER

• Quick transfer pipe, separate scrapped materials and titling pipes easily.
• Adjust height with electric power
• Auxiliary transfer by upper fastens.
• Finished pipes can temporarily stocked on stacker frames, or directly move it to truck.
