• Model NO.：RM-9A
• Name：One Blower One Oven Semi Automatic Pet Bottle Blow
• Capacity：1000PCS,H
• Volume：0.1L-2.0L
• Preform Length：15mm-400mm
• Preform Inner Diameter：10mm-160mm
• Max.Mould Thickness：300mm
• Clamping Force：65kn
• Mould Opening Stroke：28mm
• Main Machine：175*67*186cm
• Warranty：1 Year for Spare Parts
• Transport Package：Wooden Packgae
• Specification：SGS,ISO,CE
• Trademark：RELIABLE
• Origin：Jiangsu, China
• HS Code：8422309090
• Production Capacity：15 Sets, Month

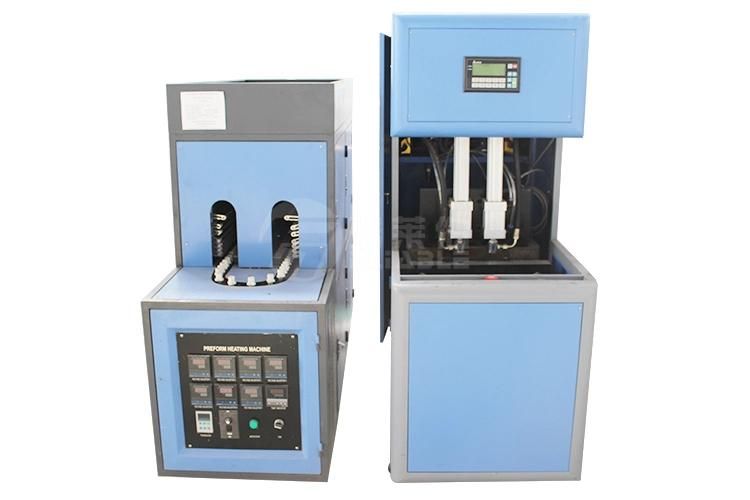

Description RM-9B Semiautomatic bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soy bean, vinegar, and pesticide (less than 5liters) according to the different bottle shape and diameter.

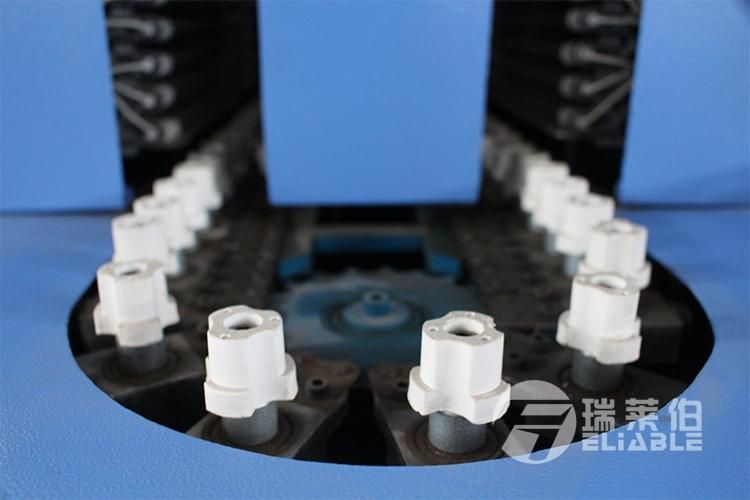

Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

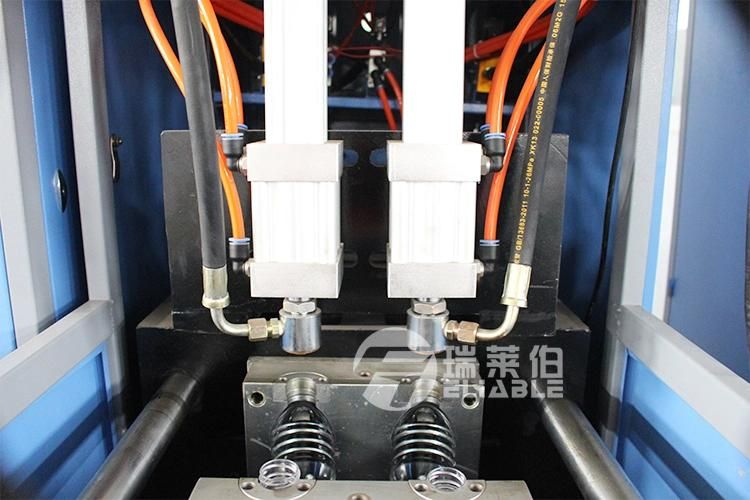

The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.


  Technical Data

Main parameter:
Model	RM-9B
Container	Product material	PET
	Volume	0.1L-2.0L
	Theoretical output	2000PCS/H
	Preform length	15mm-400mm
	Preform inner diameter	Φ10mm-160mm
Moulding	Max.mould plate Dimenstion(L x W)	400x460mm
	Max.mould thickness	300mm
	Clamping force	65KN
	Mould opening stroke	28mm
Machine size and weight	Main machine (L x W x H)	175*67*186cm
	Main machine weight	600Kg
	Heater (L x W x H)	187*63*145cm
	Heater weight	250Kg
	Power	17.5kw

 RELIABLE Advantage

Design Ability	All the machines designed by CAD.
Manufacturing Ability	Mechanical parts: high quality stainless steel, processed by CNC.
Reliability	Electrical parts from world famous suppliers.
Professional	Focus on beverage and pharmaceutical packing machines. Exported to over 45 countries with good reputation. 10 years Alibaba Golden supplier without complaint.
Good Service	Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
Export Experience	Exported to over 45 countries, with good reputation.
Profession on Export	Authorized import & export licence.

 RELIABLE ServiceBefore sales:
Please cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.

During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory; or we can take the testing video and send to buyer for check .

After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the factory price of spare parts FAQQ1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference
