Small Model Plastic Cup Making Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Transport Package：Film Packaging

Base Info

  • Specification：4.5m*1.6m*2.4m
  • Trademark：HOIN
  • Origin：Ruian,Wenzhou,China
  • HS Code：8477409000
  • Production Capacity：10sets,Months

Description

Material

PP/PE/PS/PET/PVC (Hard Sheet)

Sheet Thickness

0.3-2.0mm

Sheet Width

500-600mm

Max Install Area Of Mould

650×300mm²

Max Forming Area

650×270mm²

Up Heater Power( More length )

Heating enough ensure cup in good shape

8Rows×8Zones×800w

Down Heater Power

7Rows×8Zones×800w

Max Shaping Depth

170mm(Can Be Adjust)

Max Forming Depth

130mm(Can Be Adjust)

Productivity

10-30 Strokes/min

Heating Rated Power

About 40kw/hour

Total Power

140Kw

Main Motor Power

7.5Kw

Power Supply

380V/50Hz(Three Phase Four Wire)

Voltage

0.6-0.8Mpa

Air Volume Required

2500~3500L/min

Water Volume Required

40~45L/min

Machine Weight

About 5T

Overall Dimension

4.5m×1.5m×2.5m

C.MACHINE DETAILS

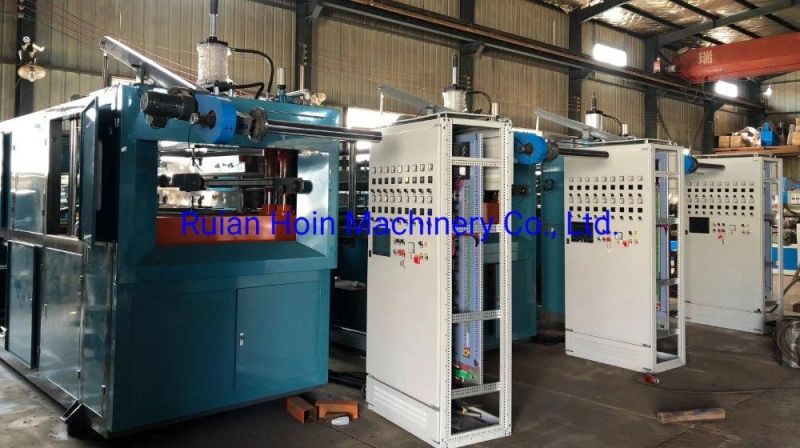

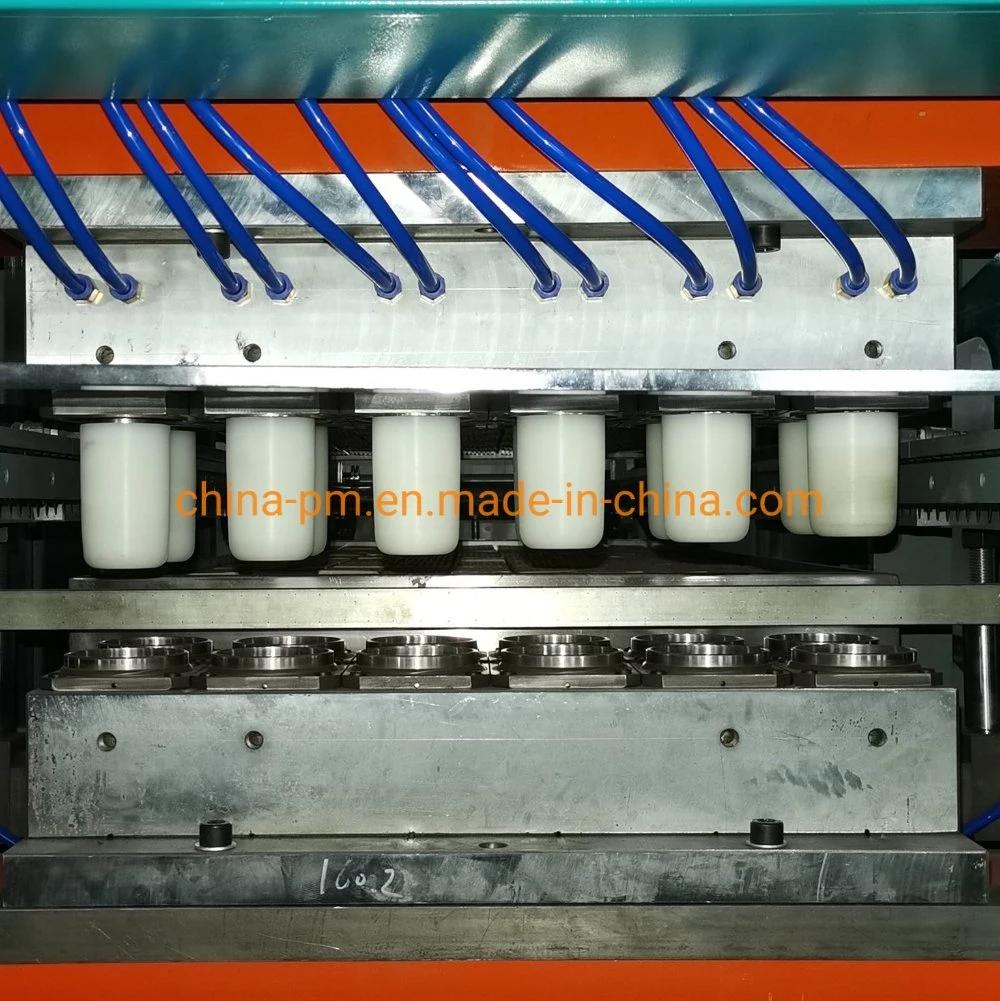

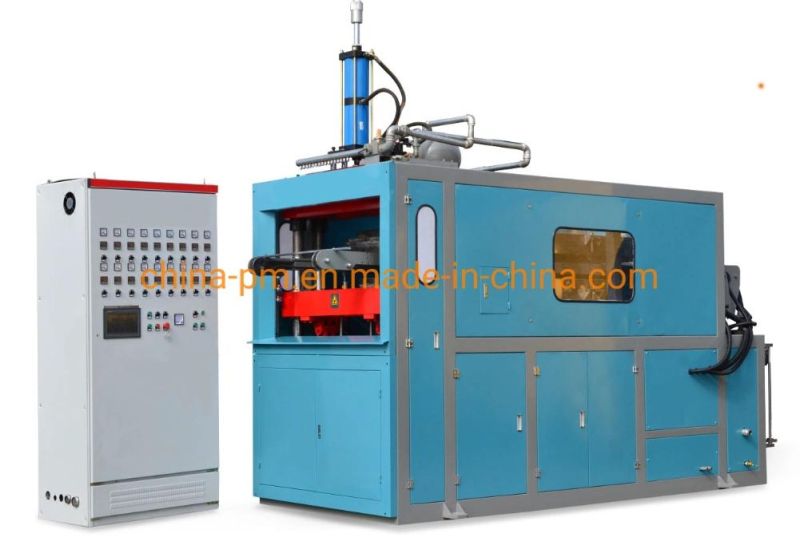

Cup Making Machine PhotoSmall Model Plastic Cup Making MachineMould For Making Plastic Cup

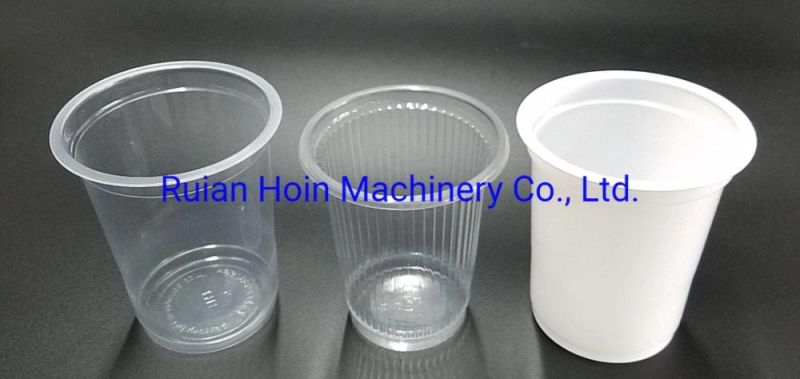

Small Model Plastic Cup Making MachineCup Samples
Small Model Plastic Cup Making MachineCup Making MachinesSmall Model Plastic Cup Making Machine Small Model Plastic Cup Making MachinePlastic Sheet Extruder
Small Model Plastic Cup Making MachineD.MORE PRODUCTS
