• Model NO.：XRM1000
• Certification：CE
• Warranty：One Year
• Shredding Room：1050*1000mm
• Motor Brand：Simo, Wannan,Siemens, Weg
• Blade Materials：D2 ,DC53
• Delivery Time：45 Working Days
• PLC Control：Siemens
• Hydraulic Power：5.5 Kw
• Voltage：Accoording to Customer
• Bearing：Heavy Duty Bearing
• Output：1000kg,Hr
• Outpur Size：40-100mm
• Main Electrical Parts：Schneriders
• Weight：9000 Kg
• Rotor Diameter：450 mm
• Rotary：70 Rpm
• Transport Package：Wooden Case and Plastic Films
• Specification：XRM1000
• Trademark：Zinmachine
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Sets Per Year

Shredder ModelXRM760XRM800XRM1000XRM1200XRM1600XRM1800Rotor Diameters400 mm400 mm450 mm500 mm550 mm650 mmRotary Blades Qty 30 pcs33 pcs48 pcs85 pcs110 pcs150 pcsFixed Blades Qty1 pcs1 pcs2 pcs2 pcs2 pcs3 pcsCapacity 400-600 kg/hr500-800 kg/hr800-1000 kg/hr1200-1500 kg/hr1500-2500 kg/hr2500-3000 kg/hrPower37 kw45 kw55 kw75kw or 110kw132 kw160kw Chamber Size760*400 mm800*400 mm1000*450 mm1200*500 mm1600*550 mm1800*650 mmWeight3800 kg4800 kg6700 kg11000 kg14000 kg18000 kg
Application Area:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;

Machine Photos:

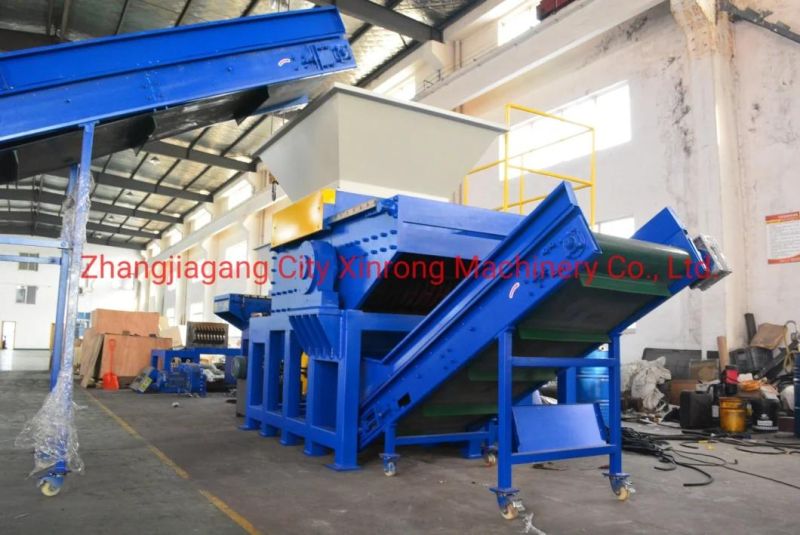

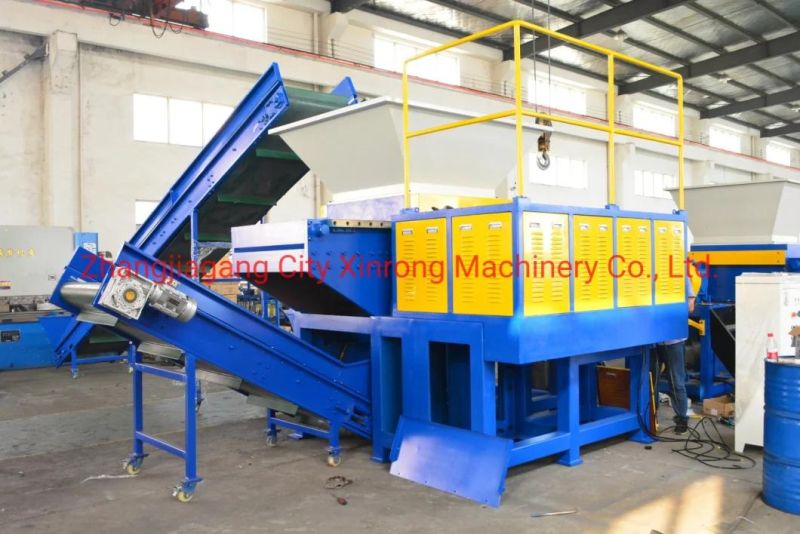

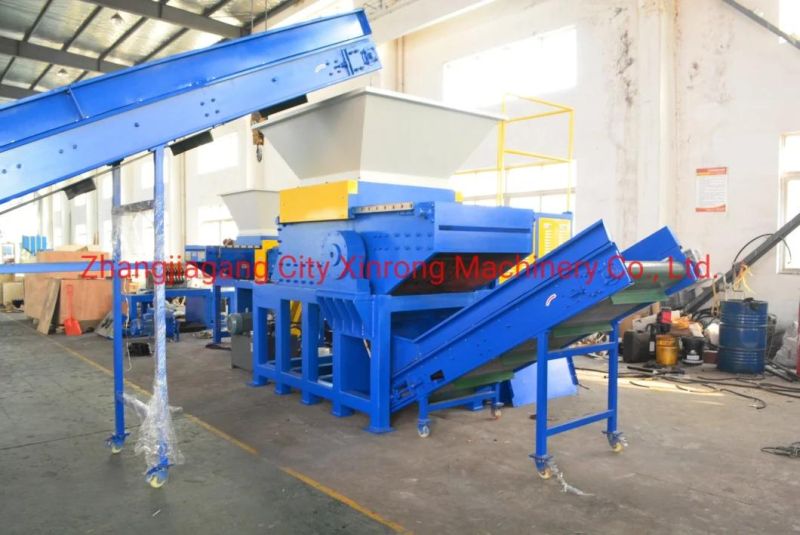

Single Shaft Shredder-XRM 1000


Customer working site:

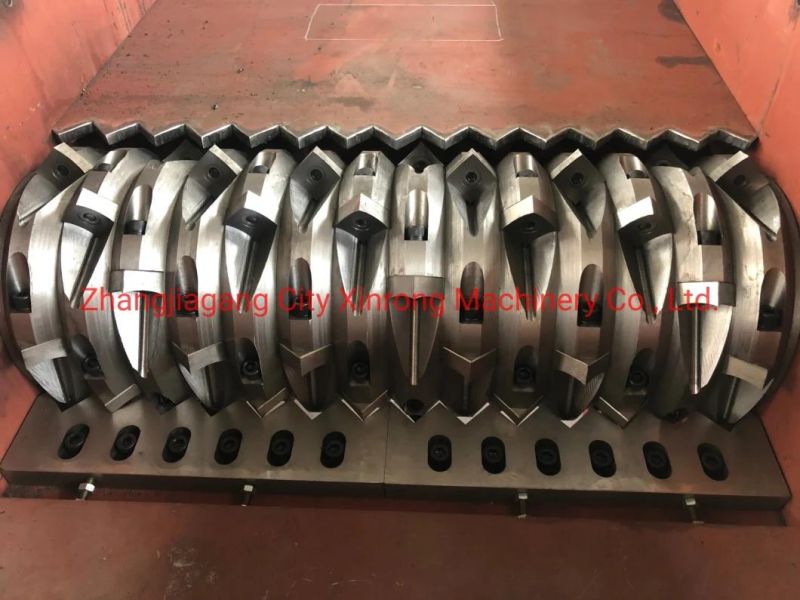

Rotor:

About us:
Shredding effects:
Machine Delivery:
IF YOU WANT TO KNOW MORE DETAILED INFORMATION OF THE MACHINE, PLEASE FEEL FREE TO CONTACT OR EMAIL US.
