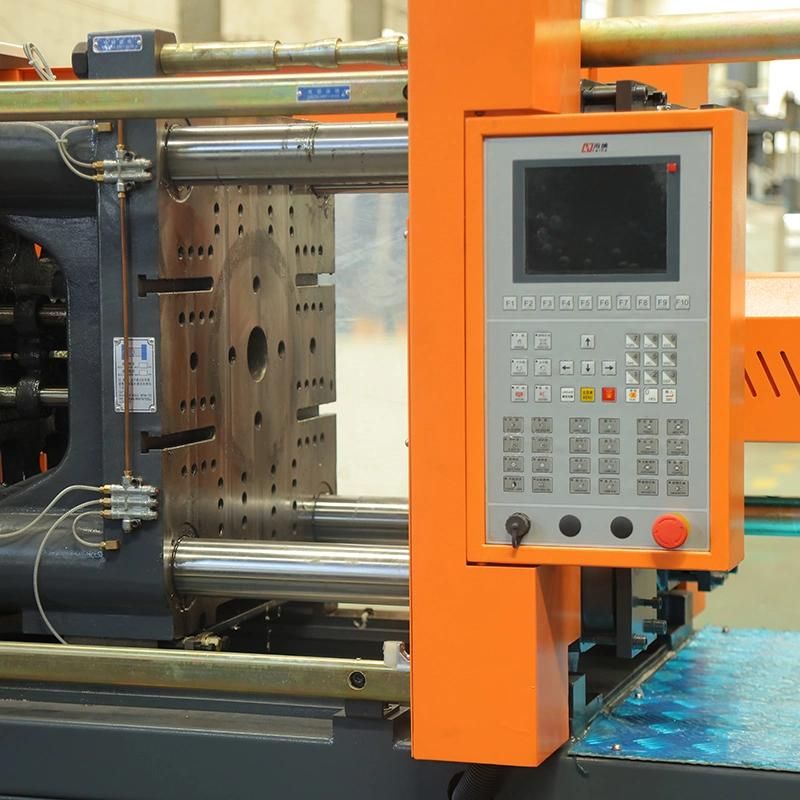

Plastic Leaf Injection Molding Machine
Ningbo Haijiang Machinery Manufacturing Co., Ltd.- After-sales Service：Online Service
- Warranty：18 Months
- Type：Injection Blow Molding
- Structure：Vertical
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
Base Info
- Model NO.：HJF180
- Clamping Way：Hydraulic & Mechanical
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Clamping Force：3600kn
- Injection Pressure：160MPa
- Pump Motor Power：37kw
- Oil Tank Capacity：620L
- machinery Dimensions(mm)：6.3m*1.9m*2.4m
- Max Mold Height：670mm
- Transport Package：Wooden Box Package
- Specification：CE
- Trademark：HAIJIA
- Origin：Zhejiang Ningbo
- HS Code：8477101090
- Production Capacity：3000 PCS,Year
Description
Screw TypeA Screw Diameter Mm 42 Screw L/D Ration L/D 22.5 Shot Size(Theoretical) cm³ 304 Injection Weight(PS) g 274 Injection Rate g/s 260 Injection Pressure MPa 202 Screw Speed rpm 0~185 Clamping Force KN 1800 Opening stroke Mm 450 Space Between Tie Bars mm 465*465 Max.Mold Height mm 500 Min.Mold Height mm 180 Ejector Stroke mm 130 Ejector Tonnage KN 45 Max.Pump Pressure MPa 16 Pump Motor Power KW 55 Heater power KW 7.5 Machine Dimension(L*W*H) M 5.1*1.4*1.9 Machine weight T 7 Oil Tank Capacity L 240
Main configuration for Standard machinery
Remark:
1, Machine above HJF650 include proportional back pressure valve.
2, Machine above HJF650 include hydraulic safety device.
3, Machine above HJF780 include automatic door and loading platform.
4, If the machine needs to add the above additional equipment, an extra charge is required.
Main configuration for Servo machinery
SPARE PARTS( FOR FREE)
Note: Different machines, the quantity of free accessories is different.
Main configuration for Standard machinery| No. | Parts | Allocation | Manufactured country |
| 1 | PLC | Porcheson | China |
| 2 | Vane Pump | Albert | USA |
| 3 | Directional Valve | Tokimec | Japan |
| 4 | Proportional Valve | HNC | Taiwan |
| 5 | Electric Motor | Qianlima | China |
| 6 | Contactor | LS | Korea |
| 7 | Plasticizing Oil Motor | STF | China |
| 8 | Air Breaker | LS | Korea |
| 9 | Thermal Overload Relay | LS | Korea |
| 10 | Limit Switches | Omoron | Japan |
| 11 | Liner Position Sensors (Electric Ruler) | Minor | China |
| 12 | Lubrication Pump | Chaorun | China |
Remark:
1, Machine above HJF650 include proportional back pressure valve.
2, Machine above HJF650 include hydraulic safety device.
3, Machine above HJF780 include automatic door and loading platform.
4, If the machine needs to add the above additional equipment, an extra charge is required.
Main configuration for Servo machinery
| No. | Parts | Allocation | Manufactured country |
| 1 | PLC | Porcheson | China |
| 2 | Directional Valve | Tokimec | Japan |
| 3 | Air Breaker | LS | Korea |
| 4 | SSR(solid state relay) | Fotek | Taiwan |
| 5 | Plasticizing Oil Motor | STF | China |
| 6 | Limit Switches | Omoron | Japan |
| 7 | Liner Position Sensors (Electric Ruler) | Minor | China |
| 8 | Servo Gear Pump | Sumitomo | Japan |
| 9 | Servo Driver | Delta | Taiwan |
| 10 | Servo Sensor | Ashcroft | German |
| 11 | Servo Motor | Albert | USA |
SPARE PARTS( FOR FREE)
| 1. Toolbox: 1SET, | 8. Nozzles: 1PCS, |
| 2. Screwdriver: 2PCS, | 9. Heating Ring: 2PCS, |
| 3. Vise: 1PCS, | 10. Lubrication Oil : 1 Bucket |
| 4. Wrench: 1PCS, | 11. Thermocouple: 2PCS |
| 5. Hexagon Wrench: 1SET, | 12. Mold clamping with bolts: 8PCS, |
| 6. Limit Switch: 2PCS, | 13. Machine shockproof pads: 6PCS, |
| 7. Seal Ring: 2PCS, | 14. Power socket for auxiliary machines: 2PCS, |
