• Model NO.：Sevenstars
• Control：PLC
• Contactor：Schneider
• Capacity：200-1000kg,H
• Temperature Controller：Rkc
• Machine Color：Optional
• Raw Material：PP PE
• Converter：ABB Siemens Eura
• Granules Cutting：Water Ring Cutting
• Dry：Centrifugul Drier
• MOQ：1 Set
• Transport Package：by Wooden Case or Other Type
• Specification：CE
• Trademark：Sevenstars- PE film recycling granulator
• Origin：China
• HS Code：84775900
• Production Capacity：100 Sets Per Year

1.Working flow
 PE film recycling granulator
1.FIlm feeding conveyor---> 2.Film compacting machine --->3.Single screw extruder---


>4.hydraulic screen changer --->5. Die face cut system--->6.Water cooling trough--->


10.Centrifugal dewatering machine--->11.Vibration screen --->12.Conveying blower


-->13.store silo2.Machines and functions of PE film recycling granulatoraBelt Conveyor:conveying  clean pe film flakes into agglomerator.bAgglometator:compacting machine,two in one with extruder,high speed rotating,pregranulating pe film .easy to be plasticized.cExtruder :single screw ,high speed rotating.low consumption.excelent plasticized effection.dHydraulic filter changer:non-stop.high efficiency.eDie face cutting system :watering cutting type.hot cutting.fDown spouting:cooling the cutted graules,recyclable.gCentrifugal drier:dewatering or remove moisture from the wet granules.
 hVibration screen:separate big graules from regular granules.big granules could be granulating again directly.
 iAir loading system:conveying the pe granules to storage and remove the rest moisture by air.jStorage hopper:storaging recycled and reworked final product:pe granules
 3.Main parameters
Plastic recycling machine PE film recycling granulatorModelSJ85SJ100SJ130SJ160unitExtruder screw diameter85100130160mmMain motor of extruder5590132160kwMain motor of compacting machine37557590kwProduction capacity100-150200-300300-400500-600kg/h  PE recycled granules machine's capacity can get 1500kg/h4.Payment and Delivery and Warranty and PackagingPLC conrol  PE film recycling granulator1.Payment.30 percent as down payment paid by T/T
70 percent as balance paid before delivery2.DeliveryApproc.60 work days upon receipt of down payment.3.Warrantly12 months4.PackagingFilm and wood box as sea shipment standards
5.Pictures:Whole PE film recycling granulator and company album and CE certificate etc

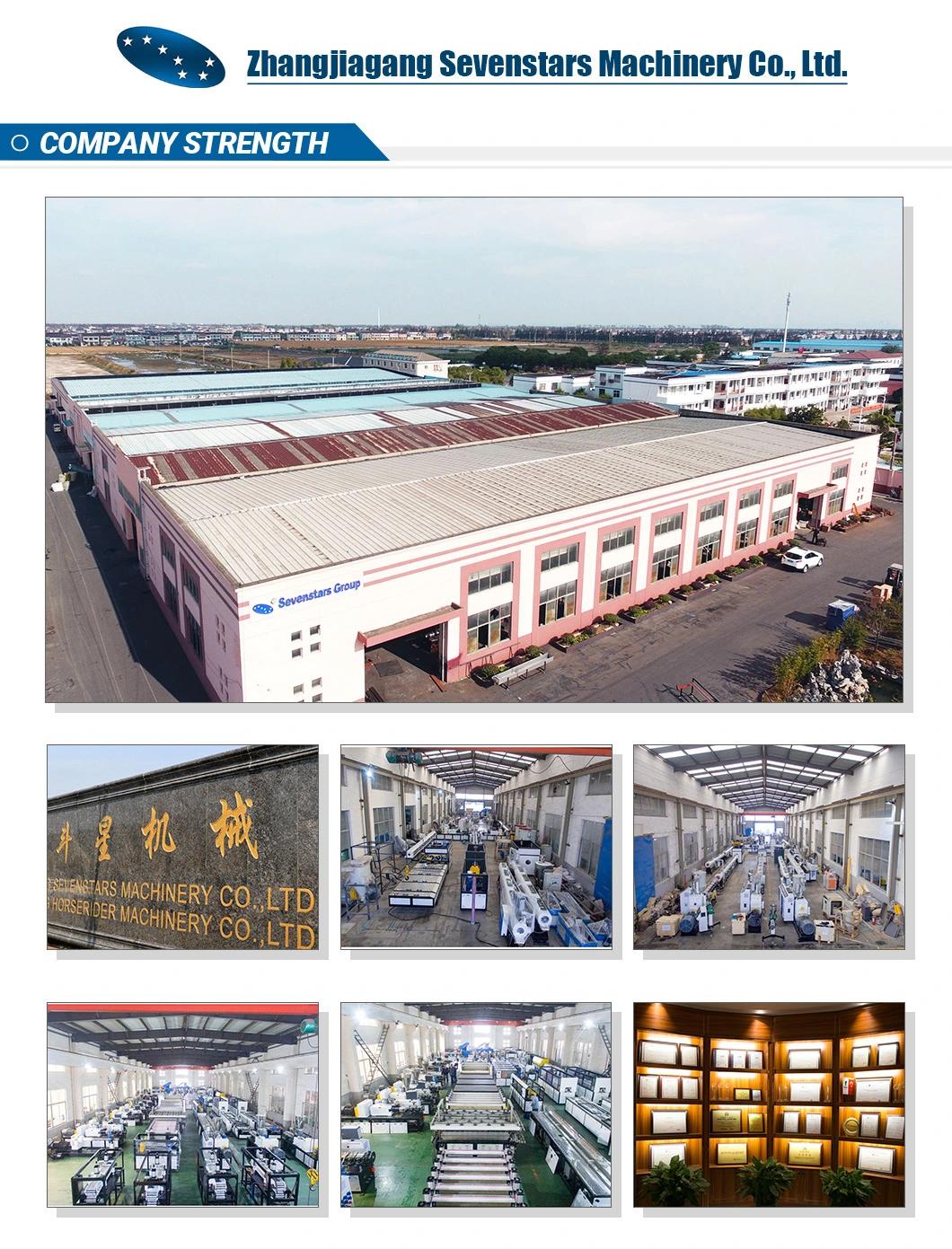

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
