PP PE Film/Woven Bags Plastic Granules Making Machine
Zhangjiagang Boxin Machinery Co., Ltd.- After-sales Service：Can Be Debugged Abroad
- Warranty：One Year
- Type：Sheet Extruder
- Plastic Processed：PE
- Product Type：Granulating Extruder
- Feeding Mode：One Feed
Base Info
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Name：Film Granules Making Machine
- Keywords：Plastic Granules Making Machine
- Material Processed：PP PE Films
- Function：PP PE Film Pellet Making
- Control System：PLC
- Quality Assurance：Strict Testing System Before Delivery
- Inverter：ABB
- Application：Waste Plastic Film Pelletizing
- Certification：SGS,CE
- Applicable Industries：Manufacturing Plant
- Transport Package：Plastic Film and Wood Box
- Specification：10000*6000*6000mm
- Trademark：BOXIN
- Origin：Jiangsu China
- HS Code：8477201000
- Production Capacity：300-2000kg,H
Description
Throughput Rate (kg/h)
Efficiency Volume
(Liter)
Motor Power
(KW)
Diameter of screw
(mm)
L/D
Motor Power
(KW)
BX-80
300
37
80
33
45/55
160-220
BX-100
500
55
100
33
90/110
300-380
BX-120
800
90
120
33
132
450-480
BX-130
1000
110
130
33
160/185
500-650
BX-160
1200
132
160
30
220/250
800-1000
BX-180
1400
315
180
30
315
1000-1200
5. PE PP Film/bags double stage Plastic Granules Making Machine layout:
1.Conveyor belt → 2.Semi automatic metal detector →3.Compactor machine→4.The first stage extruder→5.hydraulic screen changer→6.the second stage extruder →7.hydraulic screen changer →8.Die face cutting system→9.Water cooling tank→10.Centrifugal dewatering machine→11.Vibrator screen machine→12.Air conveyor & Storage silo
6. Details for plastic pelletizing making extruder :
Function: as standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls' scraps, roll hauling off device is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor's room is. Metal detector can be combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal is found in feeding section

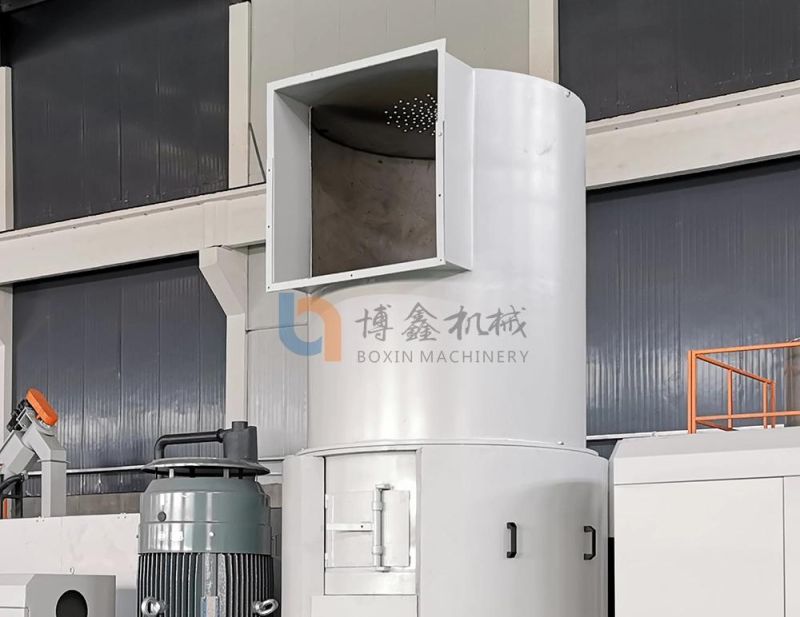

Function: the rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

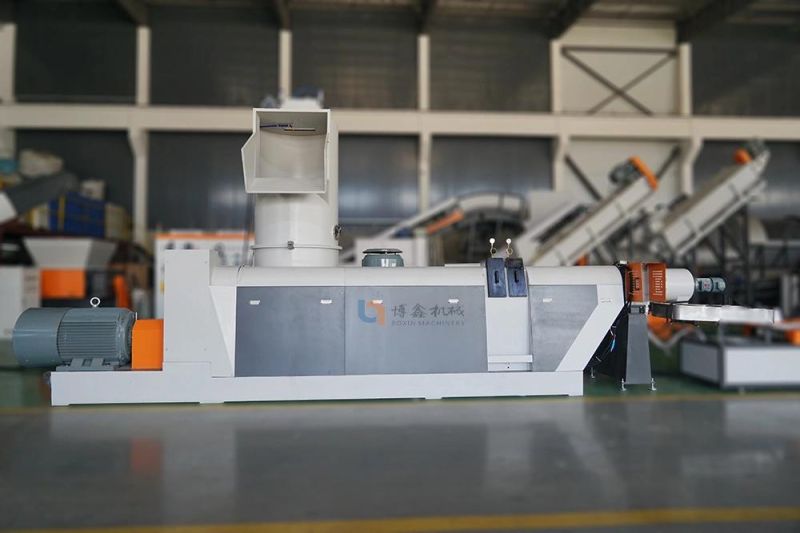

Function: A specialized single screw extruder applied to gently melt the pre-compacted material. The plastic scraps will be well melted, plasticized in a 32 to 34D processing section. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.

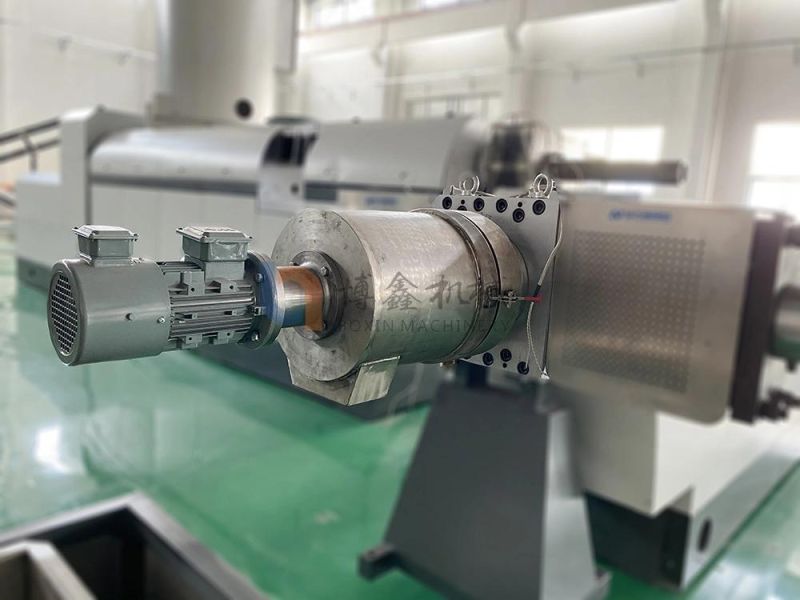

Function: Our cutting system is an advantage. Both PE film and PP woven&non-woven material can get into pellets with excellent quality.

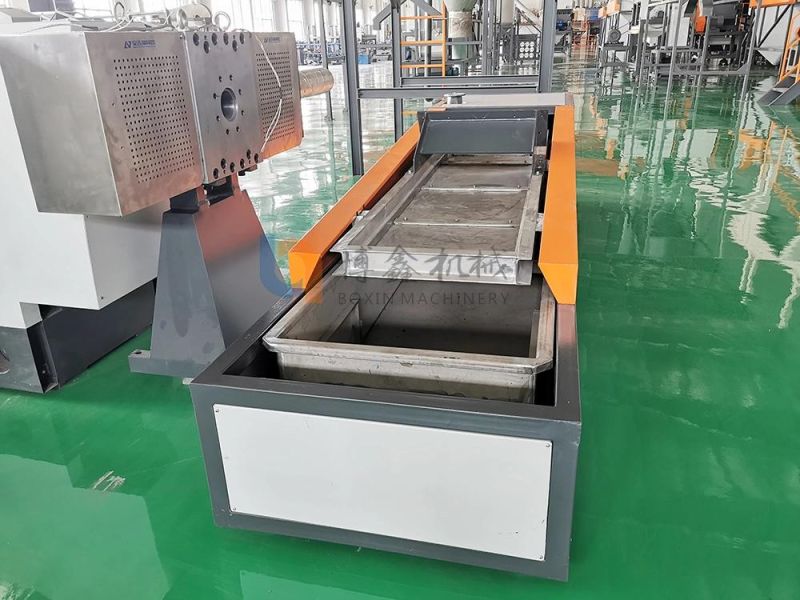

Function: Remove the unqualified particles and remove the moisture. Our latest design of the vibration and dehydration integrated machine is not only beautiful in appearance but also the practical can be more effective.
7. Feature for plastic film recycling machine:
1. Die-face water ring pelletizing system is a standard pelletizing method,
2. Self-adjusting pelletizing,
3. RPM of rotator blades is automatic based on melt extruding pressure,
4. Dewatering vibration sieve combining with horizontal-type centrifugal dewatering have a good drying efficiency.
8.Quality Control (Plastic Extruder pelletizing machinery)
· We have technical, engineer team design the sample machinery before enter into market
· Production QC team ensure the machine manufacturing quality
· We will running every machine after finished before shipment
· Optional choose by client running the machinery by material
9. Service System( noodle making machine )
· Pre-sale: We given client the details technician offer, sign the sales contract etc.
· In-sales: We supply the details layout, installation instruction, technician support for the clients;
· After sales: We arrange engineer to install the machinery and training the workers for client;
· We have 24hours team to solve the after sales problem;
· We have free spare parts with the machine;
· We supply long term spare parts for every customer
· We always up date the new technology to every customer
