• Model NO.：XJ-150
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Product：Inner Tube,Tire Tread,Rubber Hose etc.
• Warranty：12 Months
• Transport Package：No Package
• Specification：XJ-65 XJ-85 XJ-115 XJ-150 XJ-200 XJ-250
• Trademark：HUICAI
• Origin：Qingdao, China
• HS Code：8477800000
• Production Capacity：100 Set One Month

Type
Performance indexXJ-65XJ-85XJ-115XJ-150XJ-200XJ-250Screw thread typeDouble-head same depth converged typeDouble-head same distance varied depth converged typeDouble-head converged typeDouble-head varied depth converged typeDouble-head converged typeDouble-head converged typeOuter diameter of screw mm6585115155200250Screw length-diameter ratio L/D44.34.84.434.354.5Compression ratio
  1.31.31.34  Screw rotated speed r/min20.27.35.4728.40.56.8033.46.6027-8122.4-67.219.7-59.1Motor power kw7.511/152218.3-55 Commutator motor18.3-55 Commutator motor18.3-55 Commutator motorProduction capacity kg/n50-8070-210100-420700-12001500-22002000-3200Steam pressure mpa0.2-0.30.3-0.40.4-0.60.60.6-0.80.6-0.8Cold hydrodynamic pressure mps0.2-0.30.2-0.30.2-0.30.20.2-0.30.2-0.3Compressed air pressure mpa    0.3-0.60.6Overall size (L×W×H)(mm)1630 ×604×10502050 ×700×12001630 ×604×10503411 ×814×14704564 ×1800×17504950 ×1150×1483Product weight kg (not including machine head)1200250030005000800011400

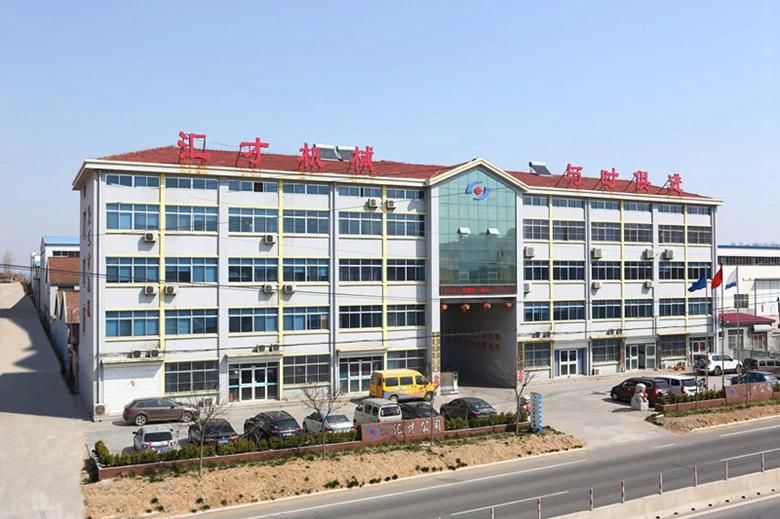

Company profile

Based on 15 years working with rubber machine we have had an impressive development over the years.
Please contact us if you want the best manufacturers (high product standards, reliable, financially strong, continuous investments etc).
