• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Trademark：SKY WIN
• Origin：China

Basic Info.

Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Trademark SKY WIN Origin China

Product Description

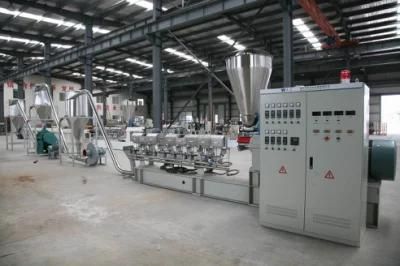

Acooding to the characteristics of WPC floor,our company develop WPC Floor Base Extrusion Line.Mainly used in
the production of width 955mm,thickness3-5mm floor base.
Features: strong specificity, stable and reliable operation, easy to operate, extrusion speed.
Production Process :                                                    ↗PVC Powder
PVC scrap(new material)→Crushing→Grinding→formulas→CaCO3→Mixing Unit→Extruder
                                                                                  ↘Additives
→Mould→Shaping Table→Shaping Mould→Cooling Rack→Longitudinal Cutting→Traction

→Transverse Cutting→Manipulator Unloading→Finsihed Products
Technical Parameters


Equipment Type	Product  Width(mm)	Product  Thickness(mm)	Rotary  Speed(r/min)	Total  Power(kw)	Output(kg/h)	Outline  Dimension(mm)	Total  Weight(kg)
SWDJ-1	955	3-6	1-30	120	80-350	19000*2200*3200	8500
SWDJ-2	1220	3-6	1-30	120	80-350	20000*2200*3200	9500
