Big Diameter HDPE Plastic Double Wall Corrugated Pipe Extrusion Line PE Pipe Making Line
Zhangjiagang Camel Machinery Co., Ltd.- Warranty：1 Year
- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, SGS TUV
Base Info
- Model NO.：SJ-BWG
- Customized：Customized
- Condition：New
- After-sales Service：Provide on-Site Installation, Commission and Train
- Name：HDPE Plastic Double Wall Corrugated Pipe Extrusion
- Motor：Siemens Beide,Weg
- Contactor：Siemens,Schneider
- Temperature Controller：Rkc,Omron
- Pipe Size：63-800mm
- Product Application：Water Drainage, Electric Conduit
- Gearbox：Jc Brand
- Inverter：ABB,Holip
- Mould Cooling：Air+Water
- Raw Materials：PE PP LDPE HDPE PVC
- Mould Materials：Aluminum
- Screw Material：38crmoala
- Transport Package：Covered by Plastic Film
- Specification：20mx3mx3m
- Trademark：CAMEL
- Origin：China(Mainland)
- HS Code：84772090
- Production Capacity：800 PCS,Year
Description
Basic Info.
Model NO. SJ-BWG Customized Customized Condition New After-sales Service Provide on-Site Installation, Commission and Train Name HDPE Plastic Double Wall Corrugated Pipe Extrusion Motor Siemens Beide/Weg Contactor Siemens/Schneider Temperature Controller Rkc/Omron Pipe Size 63-800mm Product Application Water Drainage, Electric Conduit Gearbox Jc Brand Inverter ABB/Holip Mould Cooling Air+Water Raw Materials PE PP LDPE HDPE PVC Mould Materials Aluminum Screw Material 38crmoala Transport Package Covered by Plastic Film Specification 20mx3mx3m Trademark CAMEL Origin China(Mainland) HS Code 84772090 Production Capacity 800 PCS/YearProduct Description
BIG diameter HDPE plastic double wall corrugated pipe Extrusion line PE pipe making lineDouble wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion,good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line formore than ten years. We have the whole series of double wall corrugated pipe machine: horizontal type, verticaltype and shuttle type. Our machine can process wide range of material, including HDPE, PP, PVC, etc.
Our double wall corrugated pipe extrusion line can produce from inner diameter of 63mm to 800mm.
Techiniacal Parameter
| Model | Structure | Raw material | ID (Min.mm) | ID (Max.mm) | Speed (m/min) |
| SGB250 | Horizontal | HDPE / pp | 110 | 250 | 0.5-5.0 |
| SGB400 | Horizontal | HDPE / pp | 200 | 400 | 0.5-3.5 |
| SGB600 | Vertical | HDPE / pp | 250 | 600 | 0.5-3.0 |
| SGB800 | Vertical | HDPE / pp | 250 | 800 | 0.3-3.0 |
| SGB800 | Shuttle | HDPE / pp | 500 | 800 | 0.3-3.0 |

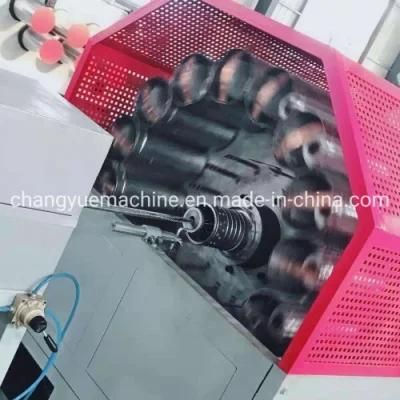

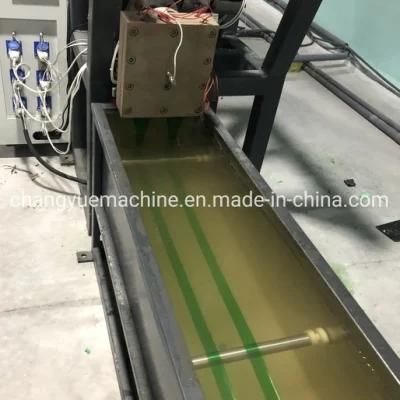

Details Images
