• Model NO.：300-2000kg
• Process Material：Film
• Power：50kw
• Capacity：300-800kgs
• Voltage：380V
• Transport Package：Wooden Box for Control Box, Other Cover with Film
• Specification：500kg,h
• Trademark：Glory
• Origin：China
• HS Code：84778000
• Production Capacity：20sets,Year

Place of Origin:

 Jiangsu ,ChinaBrand Name:PolestarModel Number:300kg/h,500kg/h,800kg/h,1000KG/HCertification:SGSMinimum Order Quantity:1 setPrice:25000-60000USD/setPackaging Details:Wood pallet covered by plastic filmDelivery Time:60 daysPayment Terms:L/C,T/TSupply Ability:35 sets/month
Quick Detail:
1.pe pp film washing line
2.film recycling line
3.waste plastic recycling machine
4. film crushing washing and drying line

Description:
Brief introduction:
The whole pe film washing line equipment is researched, design and manufactured by our company, integration of Europe technology, it has features as high efficiency, working stable, low humidity content(less than 5%). We use good quality on our washing machine(SUS-304,more than 3mm thickness) ensures whole production equipment long service life time.

Working flow:
Belt conveyor→2.crusher→3.Screw feeder→4.friction washer→5.Screw feeder→6.Floating washer→7.Screw feeder→8.Dewatering machine→9.Hot air drying system→10.Storage hopper→11.Control cabinet
Function of each equipment:
1.Belt conveyor:conveying or transporting dirty plastic films into crusher.If too much scrap iron,metal detector may be needed.
2.Plastic crusher:cutting or shearing type:cutting jumbo film or bag into small pieces
3.Screw feeder:feeding film pieces into the next step
4.High speed friction washer:clean the dirty on the surface of film scraps
5.Floating washer:clean the rest dirty on the surface of film scraps
6.Dewatering machine:dewater for film scraps to get final good quality film scraps
7.Hot air drying system and air blower:use hot air to remove the moisture from PP/PE scraps.
8.Storage hopper:store the PP/PE scraps for next step packing.
9.Control cabinet:elements:Schneider,ABB,Siemens,Danfoss,RKC, etc

Applications:
This PE film washing line can be suitable for recycling PE PP bag, woven bag, non-woven bag, HDPE milk bottle, oil barrel, Oil tank, car cover, agricultural film etc.

Specifications:Capacity300kg/h500kg/h800kg/hItemQty:(Set)Qty:(Set)Qty:(Set)Belt conveyor111Wet Crusher111Screw feeder111Hot  washer----11Screw feeder----11High speed
friction washer111Floating washer112Dewatering machine111Pipeline dryer111Storage silo111
Competitive Advantage:
My friend,if you are interested in our pe film crushing and washing line
Pls tell me:
1.What about the pollution degree of your film? Is it oily?
2.What is the capacity of one washing line you required?
3.Do you need the related machines or other machines?

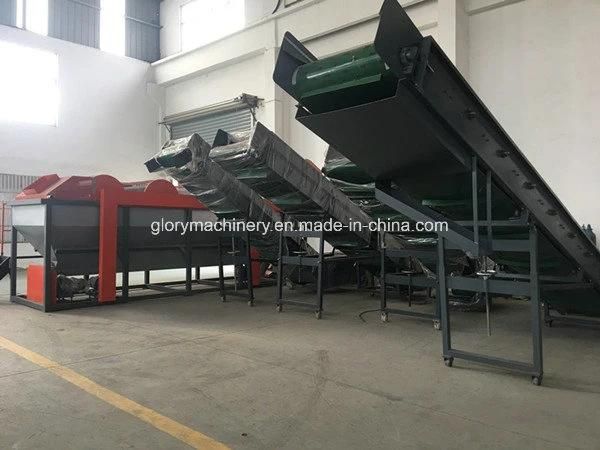

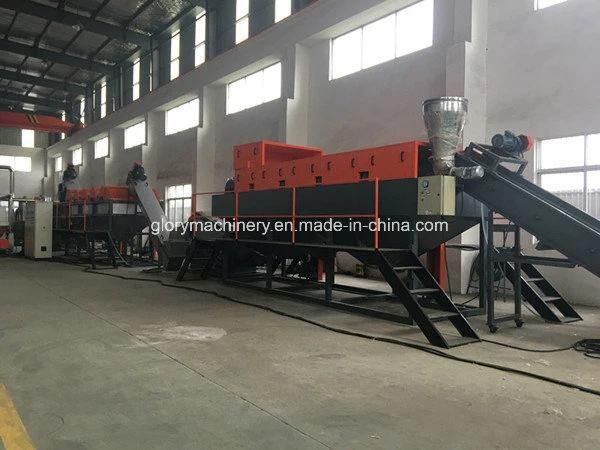

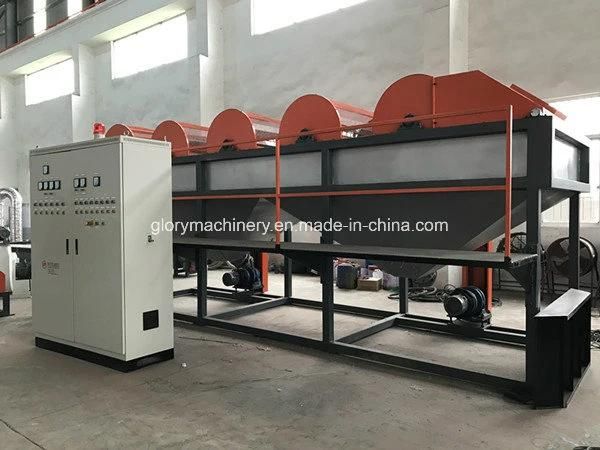

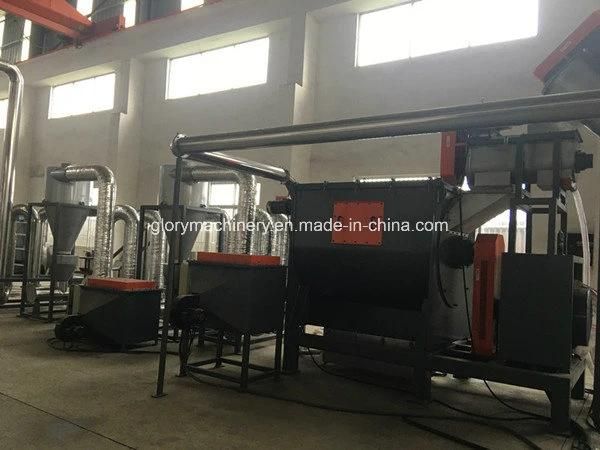

picture of the machines








GLY-3114
