• Model NO.：Double Shaft Shredder
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Motor：45kw
• Transport Package：Wooden Cases
• Specification：4800*2640*2480
• Trademark：Prowell
• Origin：China
• HS Code：8477800000
• Production Capacity：100set,Year

Basic Info.

Model NO. Double Shaft Shredder Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Motor 45kw Transport Package Wooden Cases Specification 4800*2640*2480 Trademark Prowell Origin China HS Code 8477800000 Production Capacity 100set/Year

Product Description

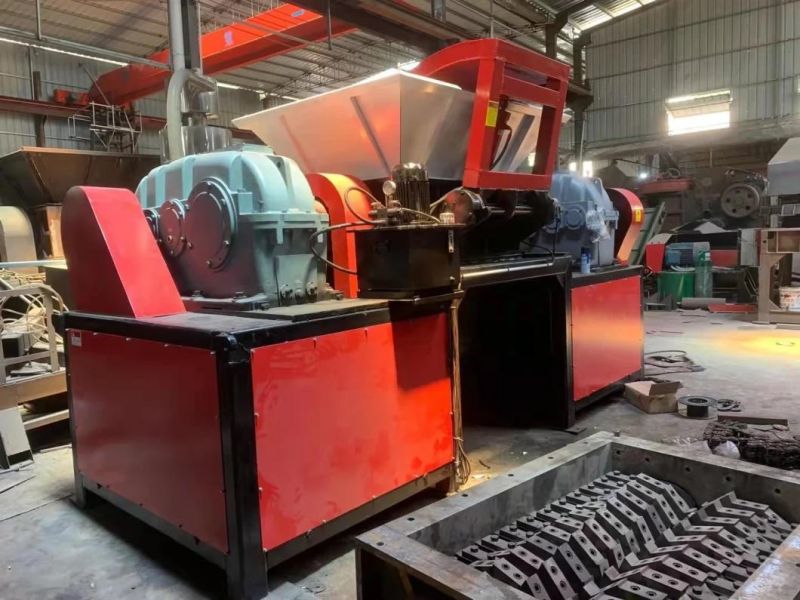

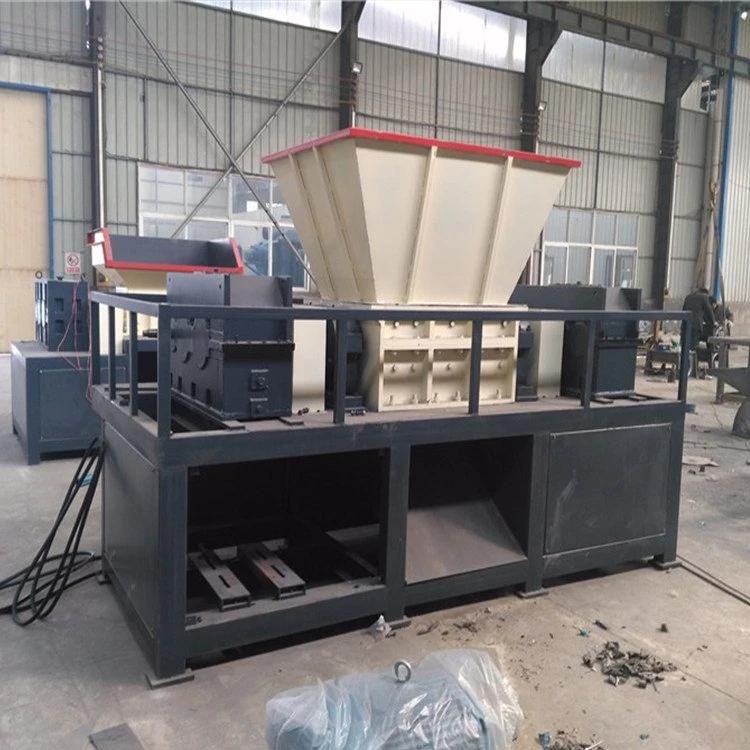

Household Appliances Recycling Shredder Machine Hard Plastic Shredder

    DS series double-shaft shredder adopts PLC microcomputer automatic control, with start, stop, reverse and overload automatic reverse control functions. It has the characteristics of low speed, large torque, low noise, etc. The bearing seat adopts a split type, disassembly and assembly. The knife is easy and convenient. In a complete set of recycling production lines, the DS series double-shaft shredder can be used as a solution for coarsely pulverizing materials.

The materials suitable for crushing are as follows:

 1. Various hollow containers: plastic beverage cans, plastic barrels, iron barrels, packaging boxes.2. PE pipe3. Wooden pallets, plastic pallets4. TV, washing machine, refrigerator housing5. Tires: car tires, truck tires6. Various scrap metals: copper, aluminum, lead, and steel plates with a thickness of less than 5mm7. Food waste, domestic waste, animal carcasses, RDF derivatives, medical waste, biological oranges, garden waste8. Plastic head material, twisted rope in paper mill 9. Plastics: large pieces of headstock; engineering plastics; paint buckets; glass 10.Electrical appliances: TVs, monitors, microwave ovens, dishwashers and other small and medium-sized household appliances shells; electrical equipment 11.Electronic products: computer mainframe shell; hard disk; optical drive; toner cartridge; battery shell 12. Pipe: PVC, PE, PP and other pipes; urban water supply pipes; sewage pipes 13. Wood: round wood; pallet; wood chip plywood; whole piece of furniture 14.Rubber: waste car tires; conveyor belt 15. Metal: copper, aluminum or iron with a thickness of less than 5mm and other metal plates; aluminum castings and extrusions; motorcycle and car engine shells; oil filters

Design features of double shaft shredder

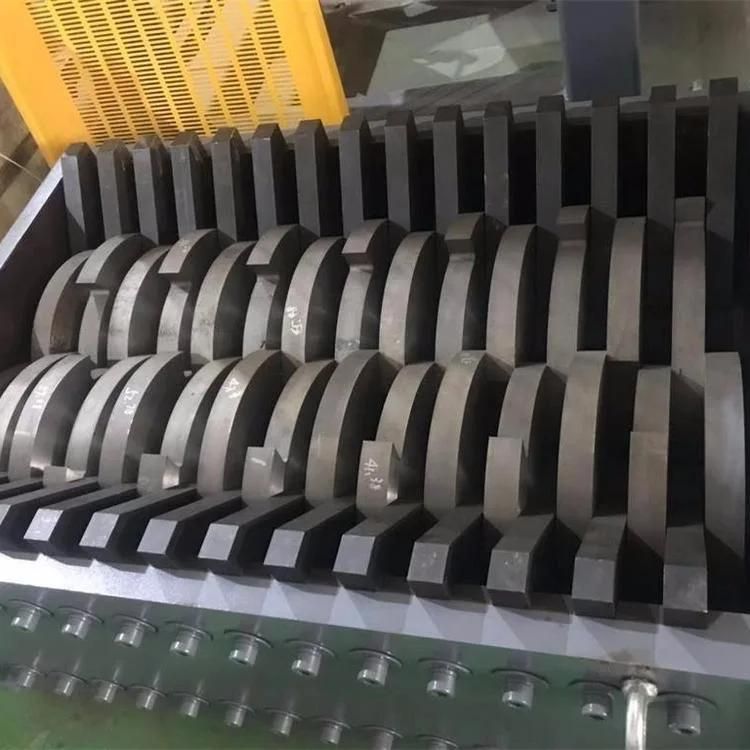

   During the crushing process, the claws on the rotor drag the material into the crushing cavity. The blades adopt a mutually staggered and occluded layout, so that the material can be cut and crushed in both the horizontal and vertical directions. After the material is broken, it is intercepted and peeled off by the partition, and finally discharged downward.

Performance characteristics of Factory Sales Waste Plastic Die Material Recycling Double Shaft Shredder

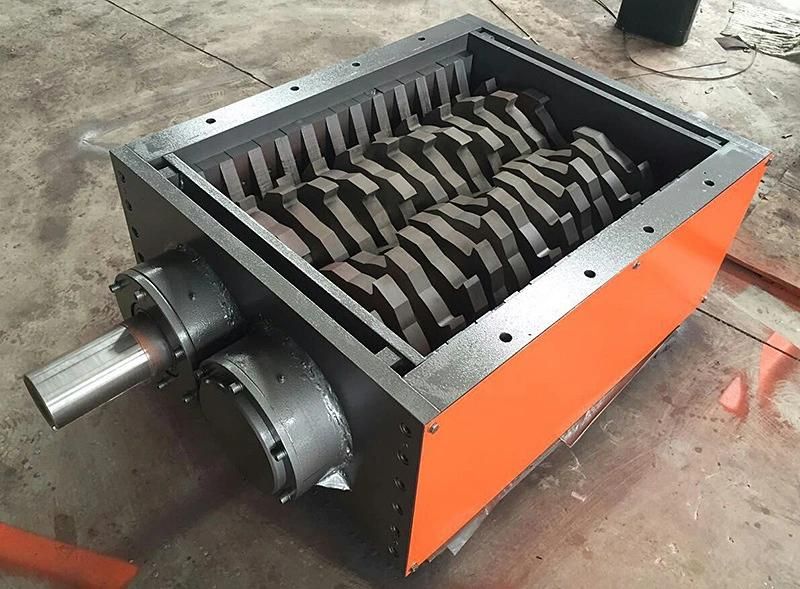

 ⊙Double-cutter shaft mechanism, using multiple multi-claw cutters, and coordinated with the cutter shaft to change multiple angles, saving labor during cutting, strong cutting force, and showing strong crushing ability. ⊙The motor has a transmission structure through a gearbox transmission system, making it a powerful operation at low speed and high torque to achieve the crushing effect. ⊙Large transmission wheel, made of special steel, hardened by heat treatment, long service life. ⊙The gear box adopts the oil-in pulley, which runs smoothly, has low noise, large torque, and can endure long-term operation. ⊙The design of low speed and high torque provides lower noise and less dust, which improves a good working environment.



 Features of Double Shaft Shredder

 1. Ultra-low speed, ultra-large torque, 8~30 revolutions per minute 2.Low noise, low dust 3. Optional motor or hydraulic motor 4. According to the different nature of materials, customers are free to choose integral shredding blades or assembled detachable blades 5. Use advanced simulation software to ensure the mechanical structure of integral or combined blades to avoid fracture and disintegration 6. Optional hydraulic forced feeding device to shred materials more efficiently and quickly 7. Double locking structure at both ends of the shaft head to ensure the blade installation position and prevent axial displacement 8. It adopts microcomputer (PLC) automatic control, with start, stop, reverse and overload automatic reverse control functions 9. 80~100 hours feeding test before leaving the factory to ensure equipment reliability



Household Appliances Recycling Shredder Machine Hard Plastic Shredder Main Tech Details
