• Model NO.：ASM-P-05
• Transport Package：Wood Case with Plastic Film
• Specification：25*2.4*2
• Trademark：ACEMIEN
• Origin：China
• HS Code：84778000
• Production Capacity：100-120kg,H

Basic Info.

Model NO. ASM-P-05 Transport Package Wood Case with Plastic Film Specification 25*2.4*2 Trademark ACEMIEN Origin China HS Code 84778000 Production Capacity 100-120kg/H

Product Description

Product Description
PVC Profile Production Line

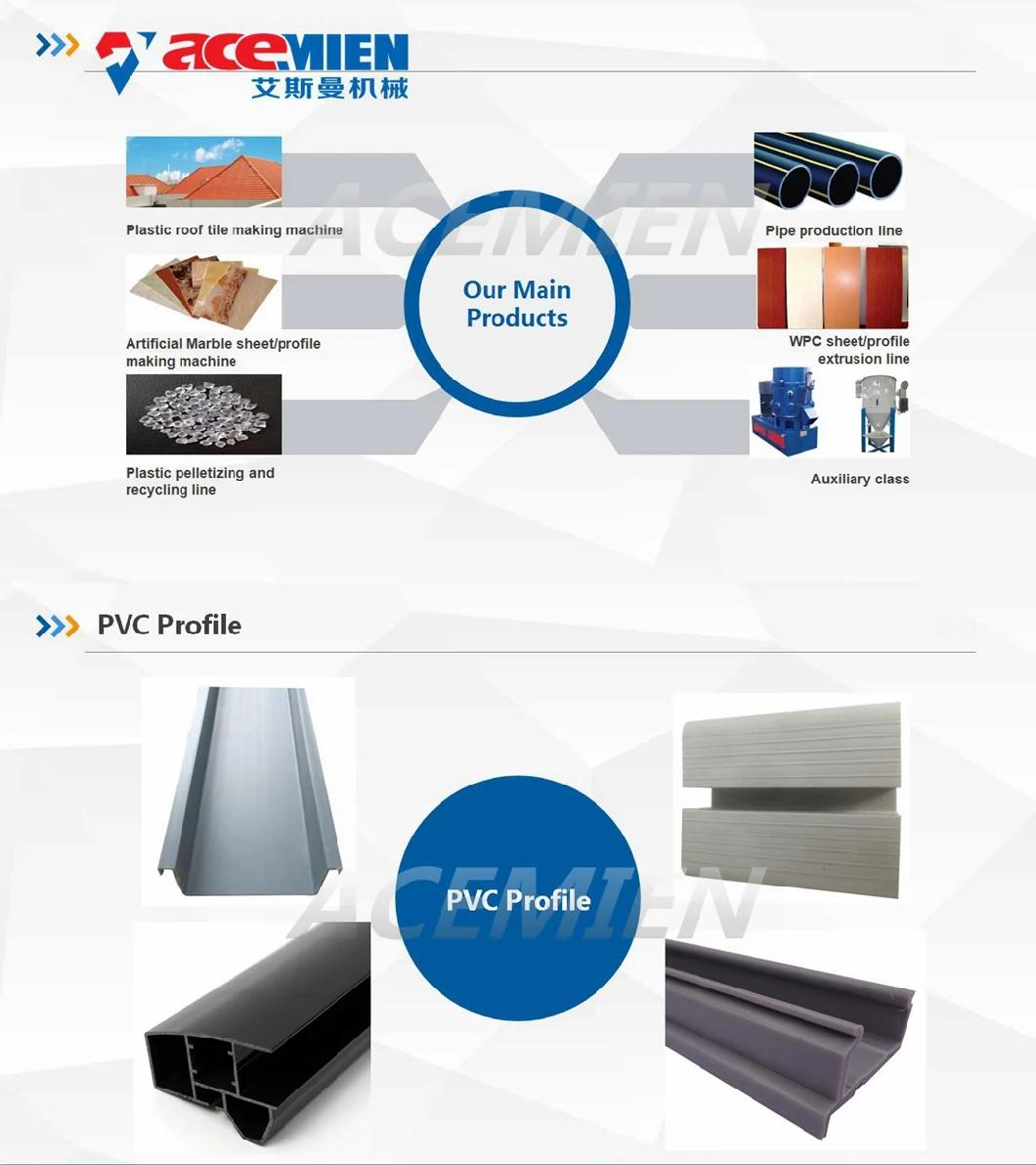

1.suitable to produce PVC series profile, such as PVC cable trunking, PVC ceiling, PVC decking, flooring, PVC windowsill and door frame and board widely.

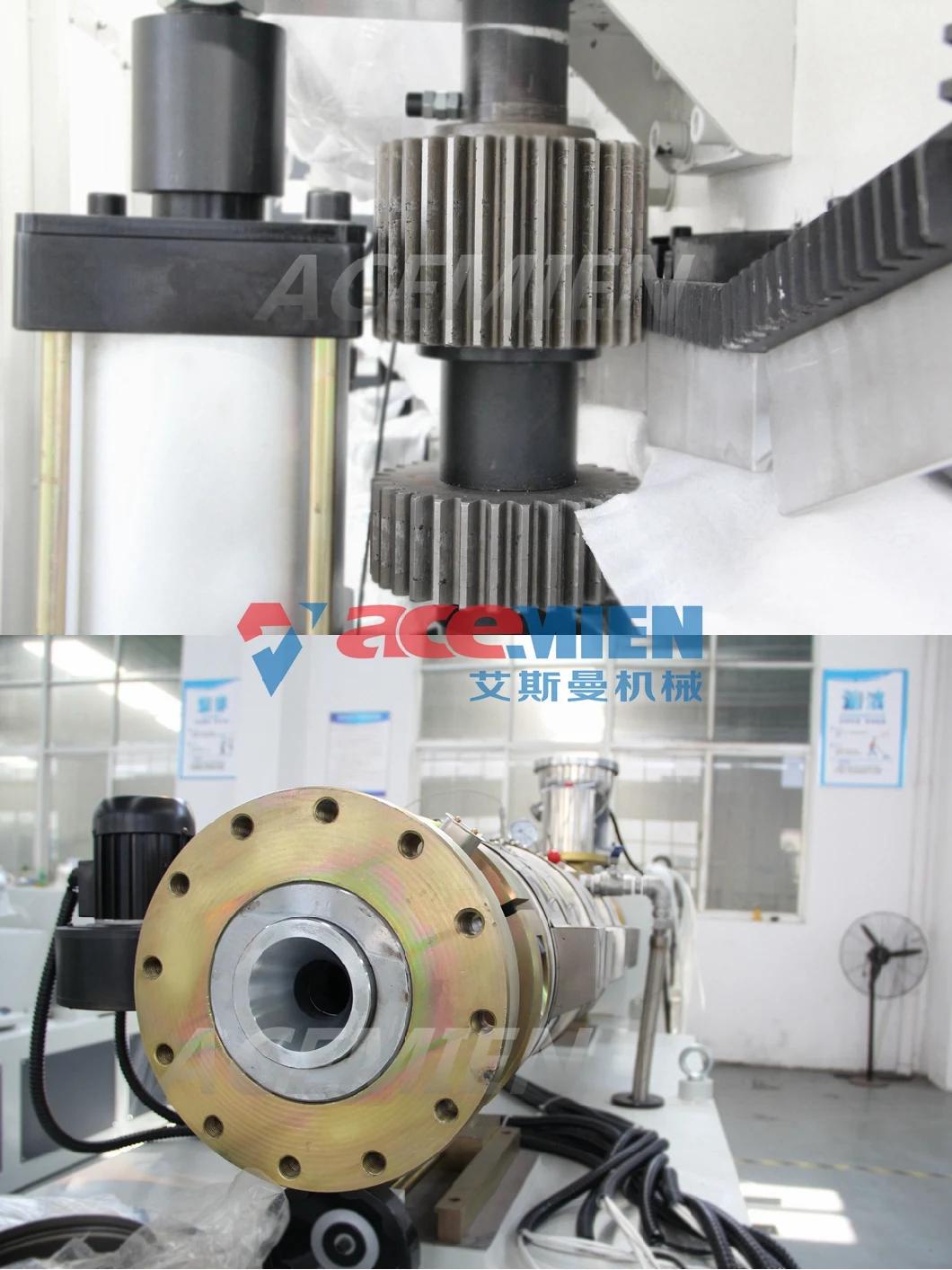

2. Conical twin-screw extruder is perfect, with PVC powder or granular material.
3. Mould designed by different kinds of profile customer required.
4. supply formula guide and staple raw material purchase.


The Working Process

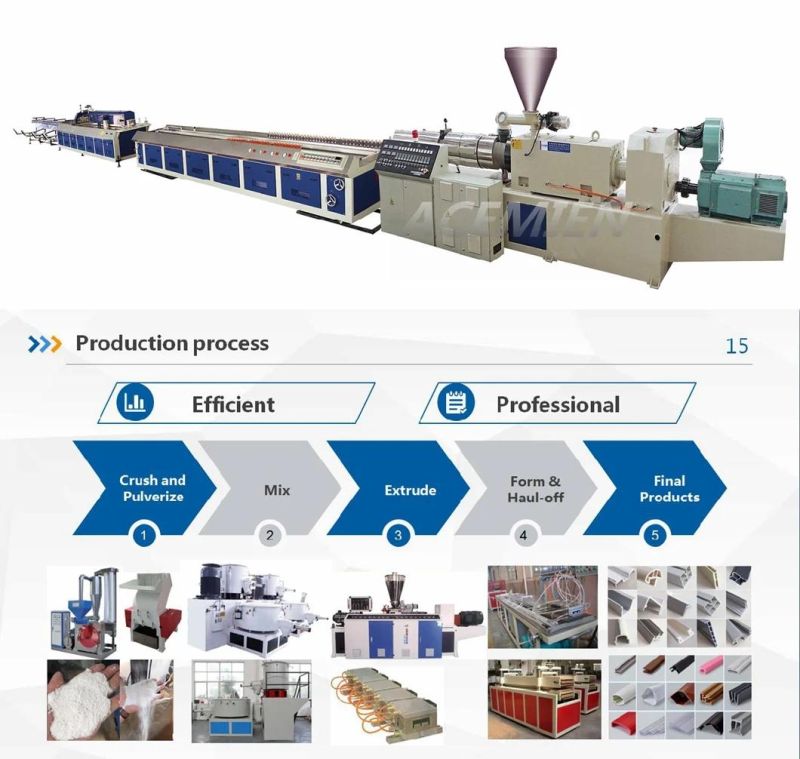

PVC powder +other addictive →mixing material by mixer →powder feeder  →conical twin-screw extruder →Die &mould →stainless steel vacuum calibration platform →hauls-off machine →cutter →stacker

Machine List

No.	Machine	Qty.
1	Spring feeder	1 set
2	SJZ51/105 conical twin screw extruder	1 set
3	Mould	2 sets
4	Vacuum calibration table	1 set
5	Haul off unit	1 set
6	cutter	1 set
7	Stacker	1 set

Project evaluation
Raw Material

Raw material & formulation	PVC Powder & CaCo3, and other additives
Final product & Output capacity	PVC Profile & 100~120kg/hr (depending on finished product)
Application	Decking, Flooring, Ceiling, Windows and other profiles

Work Condition (provide by customer)

Warehouse/Workshop	Dimension (M*M*M): 25m (Length)×2m(width) × 2.4m (Height) Crane: Machine positioning
Temperature & Humidity	≤40ºC
Power supply & Installation	3-phase, 380 V, 50 Hz
Wire/cables	Wires/cables from power supply to control cabinet of this extrusion line;
Cooling Water hose/pipe	Water supply to machines and pools
Lubrication oil	Exxon mobile
Compressor	Supply compressed air
Manpower	1 person

About Jiangsu ACEMIEN  Machinery:
Jiangsu ACEMIEN Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have been producing and selling for over 5 years. Our equipment is exported to Asia, Africa, etc,
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.

Turnkey project service:
1.  we will provide all the machines for the complete production according to customer's requirements.
2.  we will provide complete service for factory layout and other information to help customer to build the factory.
3.  we can also provide the raw material to the customer if you need.
4.  we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5.  Except one year quality guarantee, we will provide after-sell service for all the life.
6.  For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
