HDPE PLA Plastic Film Blowing Machine
Dongguan Xihua Machinery Technology Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE, PP, PLA
- Maximum Folding Width of Film：200mm
- Screw Diameter：25mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：XH-430B
- Machine Weight：400kg
- Certification：ISO9001:2008
- Color：Yellow or Customized
- Power：3 Phases, 380V
- Transport Package：Wooden Case
- Specification：1850mm*760mm*2000mm
- Trademark：XH
- Origin：China
- HS Code：8477301000
Description
XH-430B-25Screw diameter 25mm Screw L/D 33:1 Screw rotating speed 0-95 rpm Main motor power 2.2KW Die diameter 25mm Film thickness 0.02-0.2mm Max fold width of film 200mm Power supply 380V/50Hz/3 phases or customerized Control system SIEMENS PLC touching screen control

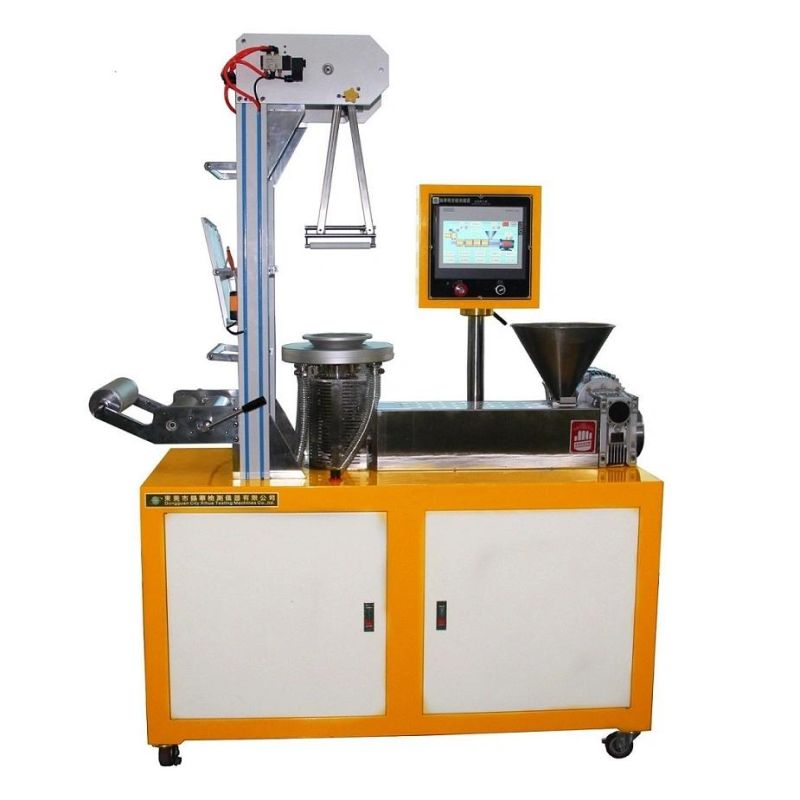

Machine Pictures:

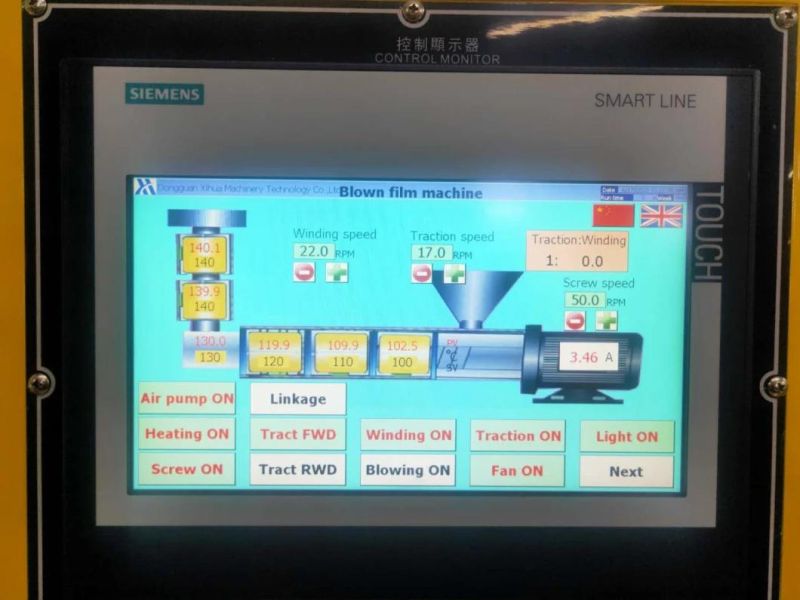

PLC Interface: Blowing Die Mouth:

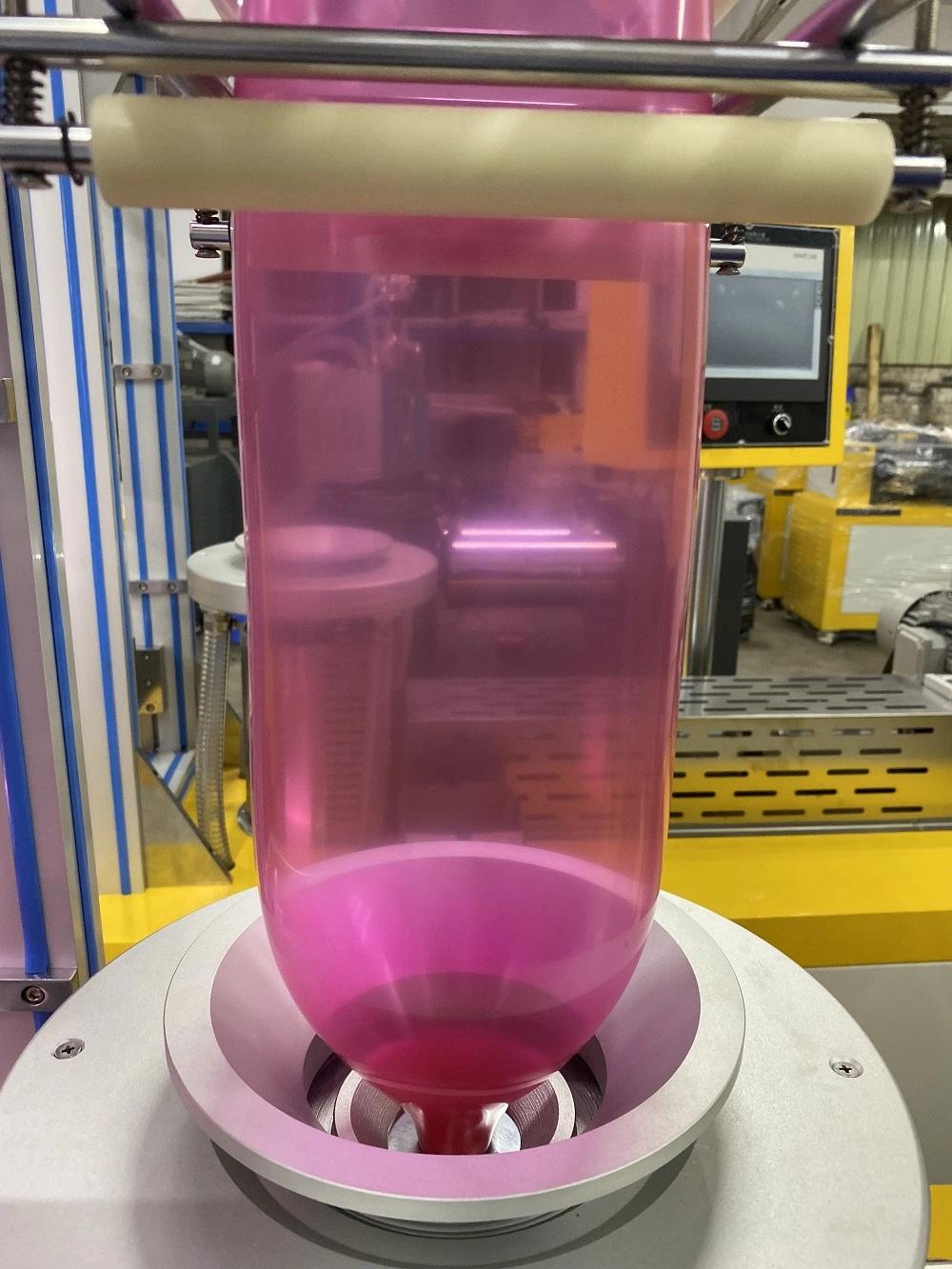

Blown Film: Observation Light:
Our Team:
Our Factory :

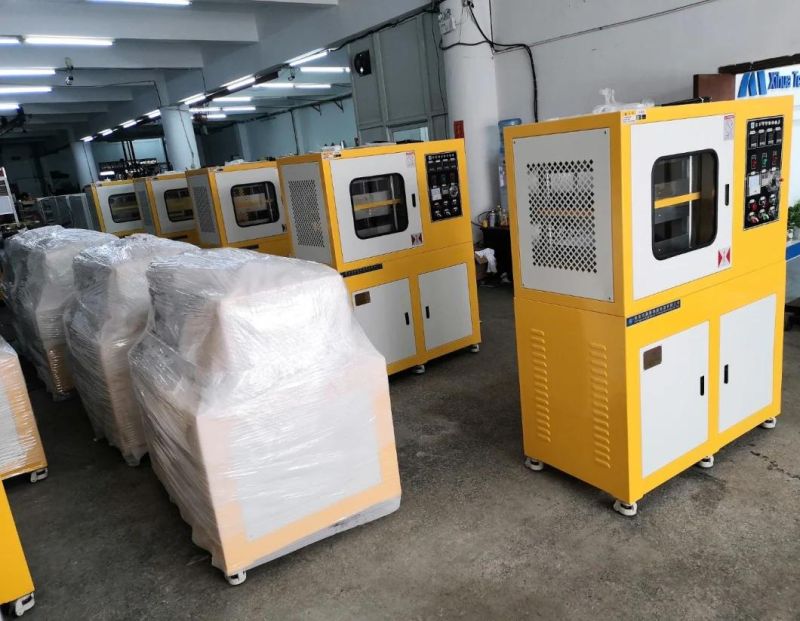

Our Workshop:

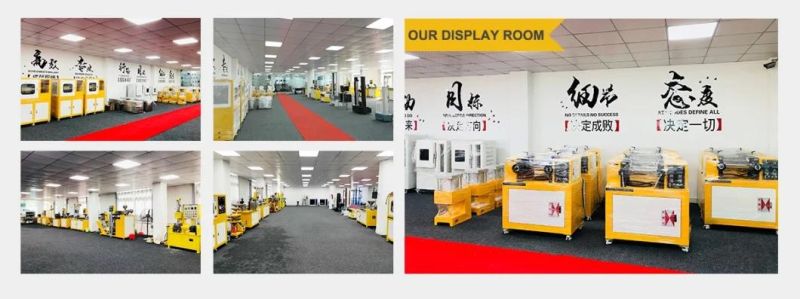

Our Show Room:
Machine Pictures:
PLC Interface: Blowing Die Mouth:
Blown Film: Observation Light:
Our Team:
Our Factory :
Our Workshop:
Our Show Room:
