• Model NO.：BDX600, BDX800, BDX1000. BDX1200, BDX1300, BDX1400
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Blade Material：SKD-11
• Capacity：300-3000kg
• Transport Package：Seaworthy Packing
• Specification：CE ISO
• Trademark：Sevenstars
• Origin：Jiangsu, China
• Production Capacity：100 Set, Year

Basic Info.

Model NO. BDX600, BDX800, BDX1000. BDX1200, BDX1300, BDX1400 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Blade Material SKD-11 Capacity 300-3000kg Transport Package Seaworthy Packing Specification CE ISO Trademark Sevenstars Origin Jiangsu, China Production Capacity 100 Set/ Year

Product Description

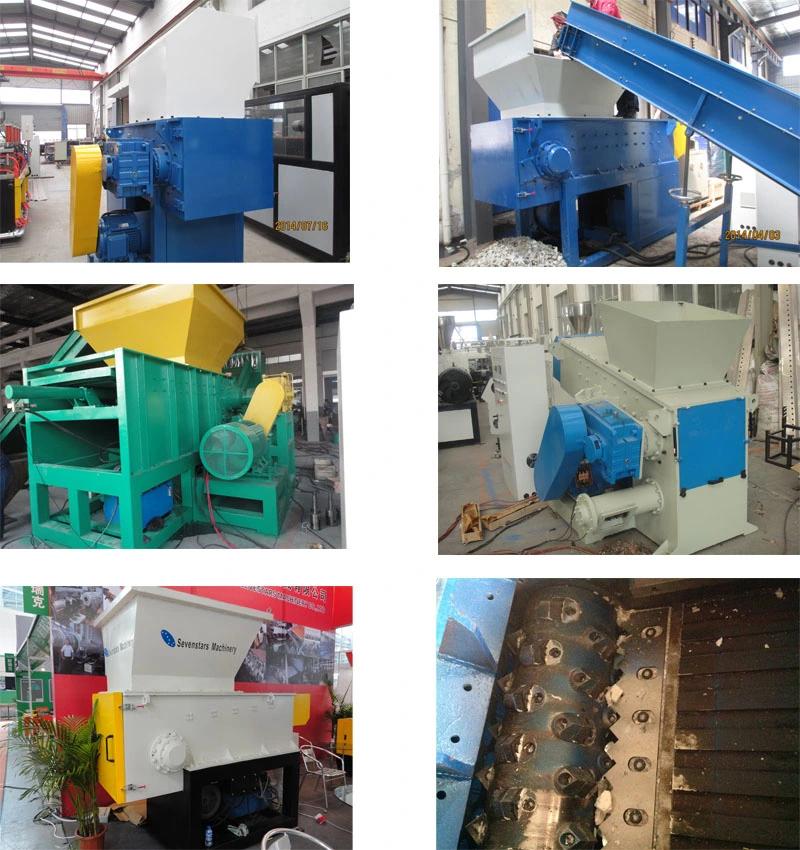

Single Shaft Waste plastic shredderMachine detail --single shaft shredder/waste plastic shredder

Application:
This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays, ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption.
Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.

Working flowchart and final material size
Shredding the big hard plastic waste into 50mm pieces,
If you choose the shredder and crusher two-in-one machine,the material will drop into crusher directly, crush the pieces into 10mm scraps,

Properties:
1. Rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. Knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° To continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° To use;
5. Main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. Hydraulic pusher, an independent power systems, solid structure, smooth operation;
