• Model NO.：SJSZ80,156
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Plastic Machine：High Quality PVC Crust Foam Plate Machinery
• Width of Foam Board：1.22m, 1.56m, 2.05m
• Length of Foam Board：1.22m,2.44m, 3.05m
• Thickness of Foam Board：5-25 mm
• Hourly Capacity：300-400kg,H
• Motor：Siemens
• Frequency Inverter：ABB
• Contactor：Schneider
• Relay：Schneider
• Temperature Controller：Omron
• Density：0.3 - 0.9g,cm3
• Size：1220*2440mm,915*1830mm,1560*3050mm
• Application：Printing,Advertising,Bathroom Cabinet,Engraving,Bi
• Transport Package：Stretch Film and Wooden Box
• Specification：CE
• Trademark：DINGKUN
• Origin：Jiaozhou, Shandong Province
• HS Code：8477209000
• Production Capacity：15sets,Month

Overview Product Description

WPC furniture board machine is applied to produce PVC foam board with width 1220mm to 1830mm, thickness 3mm to 30mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture board, consution template and so on.

PVC building template foam board machine is our featured product which can produce WPC PVC foam board.It is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel.

It is widely used for building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.


Work flow

PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker

Usage

It is widely used as building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.


Product Parameters



Extruder

Width of WPC crust foam board

Thickness of WPC crust foam board

Output capacity

SJSZ-80/156

1220mm

<25mm<>

350Kg

SJSZ-92/188

1830mm

<25mm<>

800Kg

Description

Parameter

Feed material

PVC+ assistant materials(also can add wood powder

Product size

1220*2440*5-20mm

Production line speed

0.8-1.5m/min

Max. output

350-500kg/h

Outline size

25×2.5×3 L×W×H(m),unsaturated

Weight

16T

Total power

255kw

Actual energy consumption power

210kw

Main composition

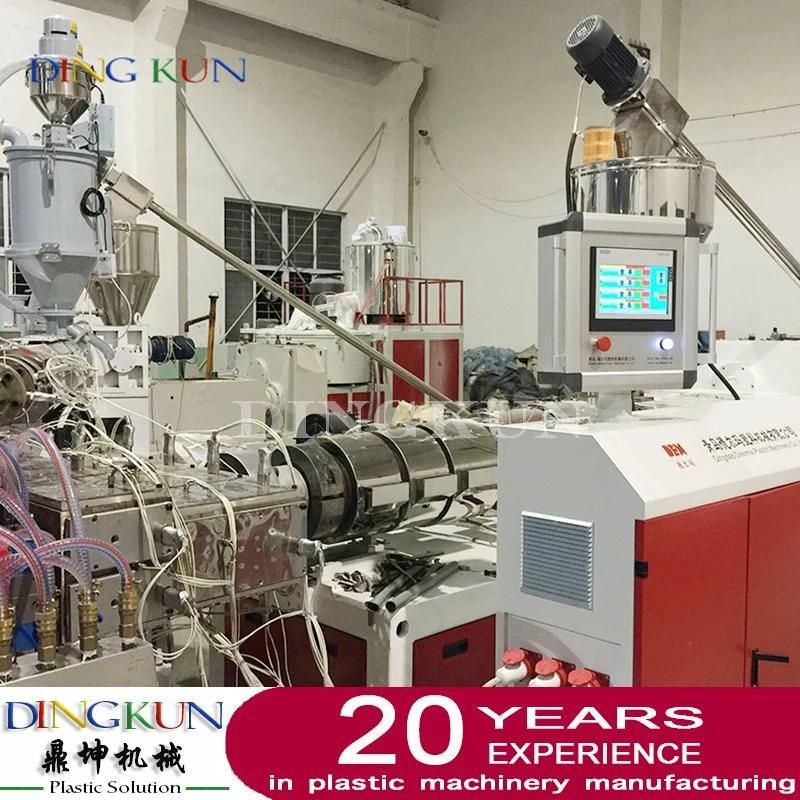

No.Part.Qty.1SJSZ80/156 Conical Double-screw Extruder1set2Mould1set3Calibration Forming Table1set4Cooling Bracket1set5Haul-off Unit1set6Transverse Cutting Bracket1set7Trim Cutting1set8Stacker1set

Auxiliary Machines for your choice

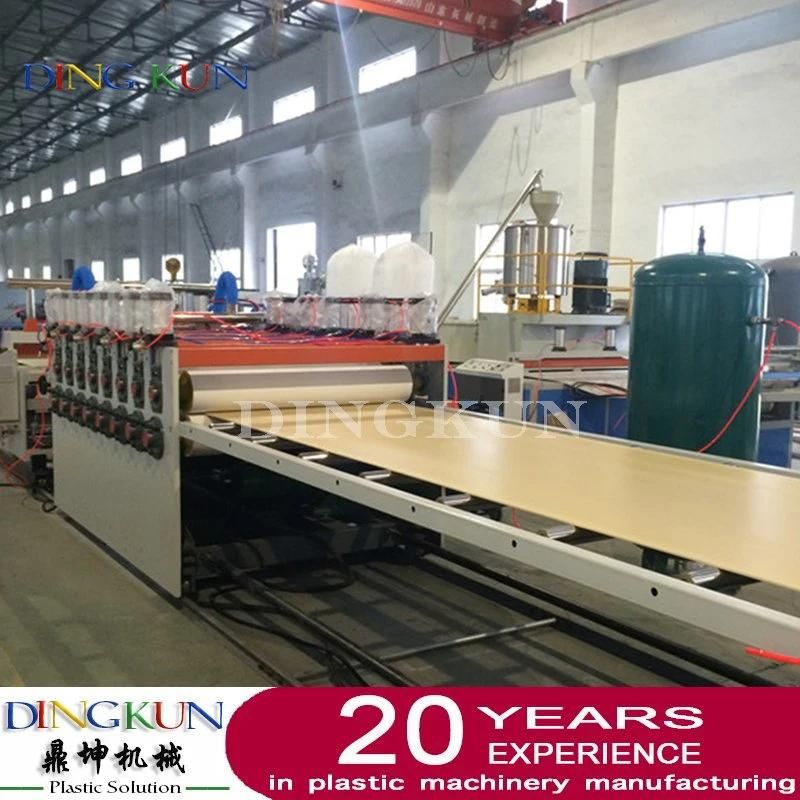

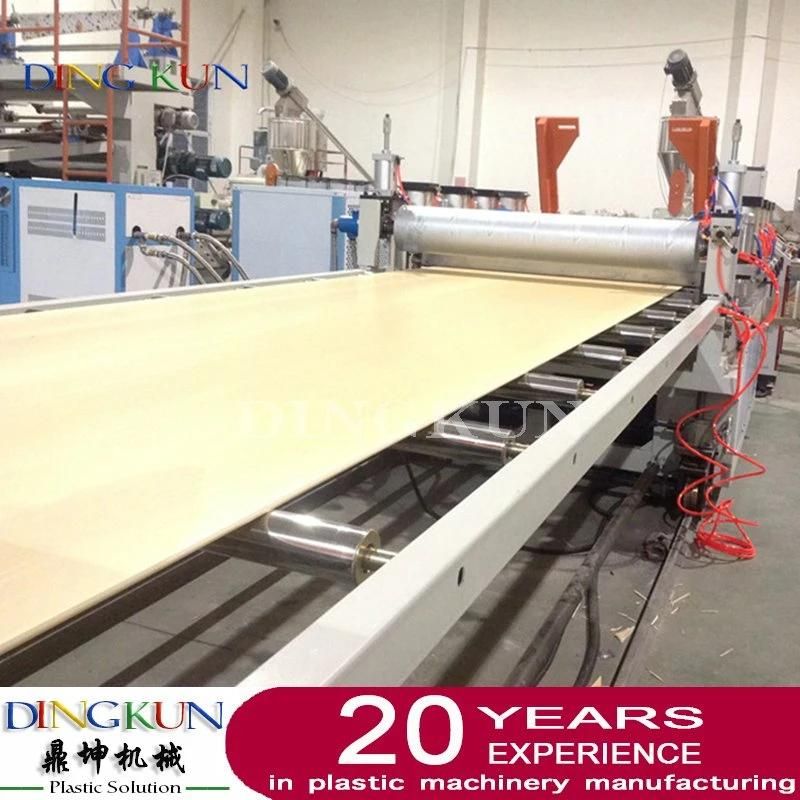

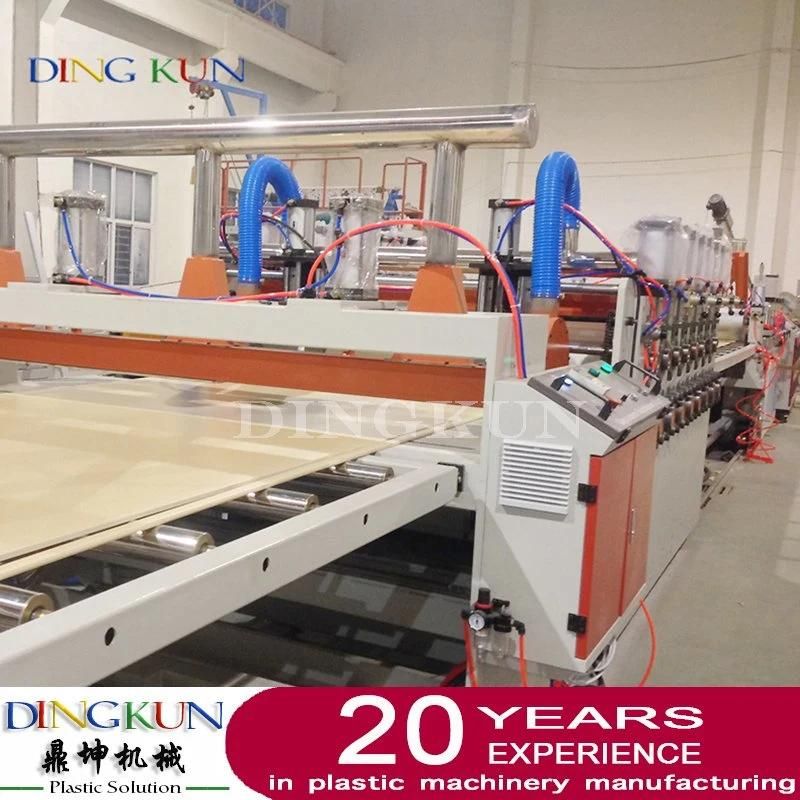

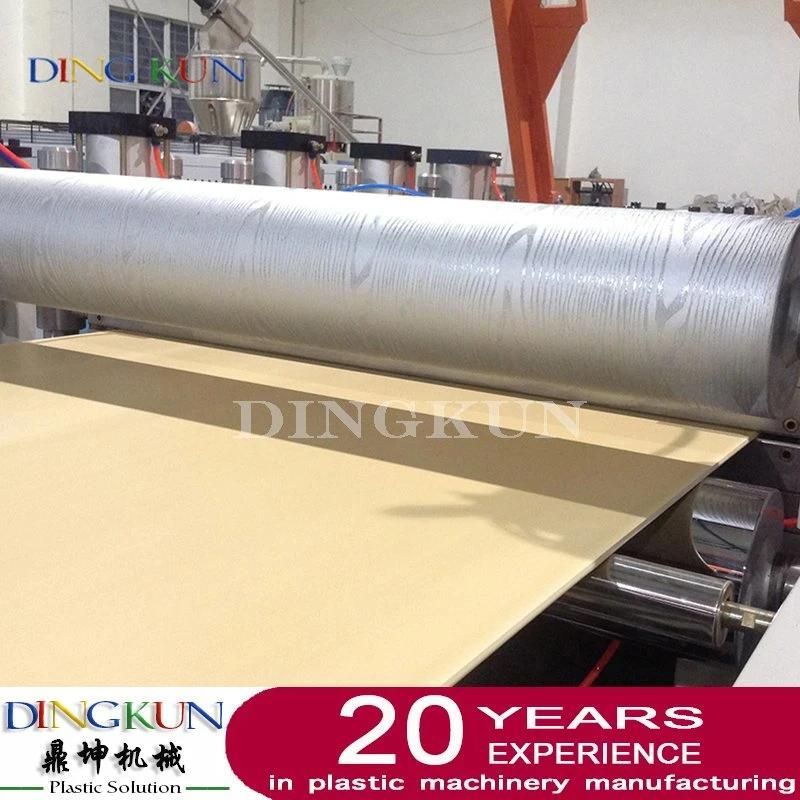

No.Part.Qty.1SHRL500/1000 Mixer1set2SWP-400 Crusher1set3SMP-500 Miller1set5Water Chiller1setDetailed Photos

Packaging & Shipping

Certifications



Certification

Certified By

Certificate No.

Business Scope Expiry Dat



ISO 9001:2008

Beijing Hangxie Certification
Center Co., Ltd.,
CNAS

03413Q21640R1M

Design and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic Extruders



CE

European
Inspection and
Certification
Company S.A.

CN.CE.0680-10/10

Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188



TUV

TÜV Rheinland

7467484_P+T

Production & Trade Assessment



Main Product Lines Verification Report

TÜV Rheinland

7467487_P+T

Main Product Lines Verification



SGS

SGS-CSTC Standards Technical Services Co.,Ltd

Focus Technology Co., Ltd

QIP-ASR155278

Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…

 FAQ

1. Quality Control Management

Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control

Q: Do the QA/QC inspectors work independently from the production line?

A: Yes

Q:How many QA/QC inspectors in total?

A: 4

Q: Number. of Employees in Each Production Line

A: Supervisor 1 ; No. of Operators 29 ;No. of In-line QC/QA 2

Company Profile

Q:Does the company have a supplier assessment procedure?
A:Yes
Q:Does the company have an updated list of approved suppliers?
A:Yes
Q:Does the company establish and implement a standard procedure for purchasing contract review and approval?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, assessment reports are available for the last 1-3 years
Q:Are the company's purchasing documents sufficient to ensure product safety control and their customers' requirements?
A:Yes, the purchasing document includes all the information required
Q:Is there a procedure to conduct random product inspections after final packaging?
A:Yes, with clear standard and written inspection records

Now we have machines in stock,sincerely invite you to vist our factory! Also you can contact me for machine's running video.
