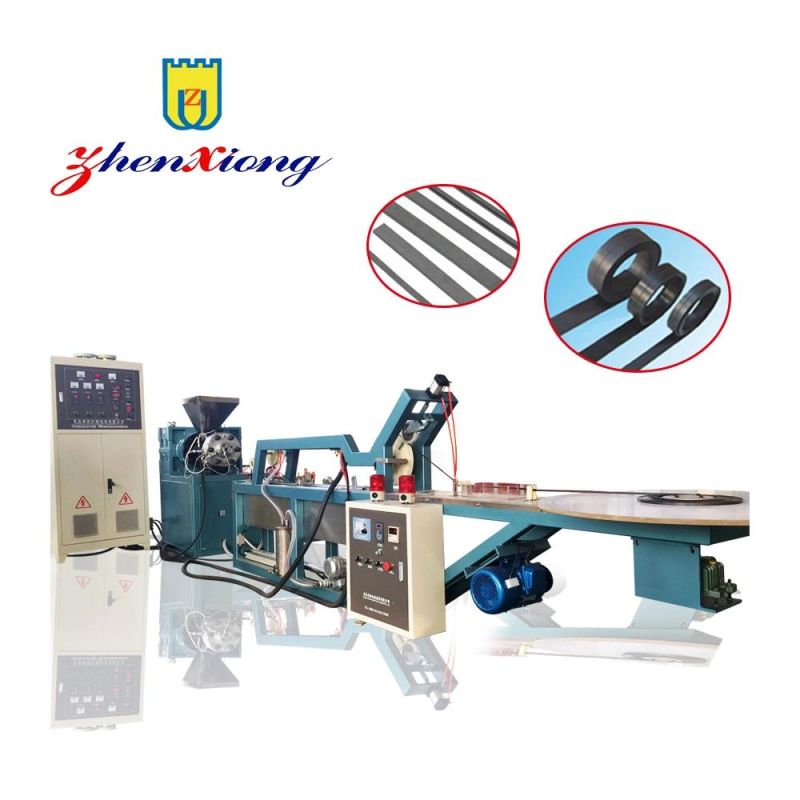

Automatic Magnetic Stripe Extrusion Line Machine
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.- Type：Strip Extruder
- Plastic Processed：Magnet Strip
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：ZX
- Engagement System：Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Voltage：Customized
- Power(W)：25kw
- Weight：3000kg, About 3000kg
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Transport Package：Standard Packaging
- Specification：10*2.5*2.3m
- Trademark：ZX
- Origin：China
- HS Code：84778000
- Production Capacity：20 Set,Sets Per Month
Description
Technical parametersScrew diameter ø60 mm L/D 9:1 Compressing ratio 1.7 Screw rotation speed : 0-24 r/min (adjusted according material) Driver motor: 15KW Haul-off power 0.55KW Winder power 0.37 KW×2 Heating power 2.9KW Churning power hopper 0.37KW Volume of cooling tank 1.8 m3/h Commonly extrusion speed 6-10m/min Barrel and screw material Alloy Temperature range 0-120ºC Barrel temperature in working 60-100ºC (not pre-heating temperature) Total installation capability about 25KW Cooling tank materia stainless steel Water pump length 3M Magnetizing capacitance 6000 micro farad Magnetizing voltage 6000 micro farad Magnetizing power 500V Magnetic field 600-700GS
IF you are intrested in this kind of plastic machinry or even other kinds of extruder units which we can supply,pls feel free to contact us,we'll be glad to give you our best service.
Our machiens have spread all over the world.
