• Model NO.：HY-54,76
• Brand Name：Hongyin
• Model Number：Hy-54,76
• Processing Type：Plastic Thermoforming Machine
• Product Type：Plastic Packaging
• Max Forming Area：540*760mm
• Thickness of Sheet：0.15-1.0mm
• Place of Origin：Zhejiang China (Mainland)
• Voltage：380V 50,60Hz
• Dimension(L*W*H)：3220×1660×2660 mm
• Transport Package：Wooden Packaging
• Specification：CE
• Trademark：HongYin
• Origin：China
• HS Code：847780000
• Production Capacity：30 Sets, Year

Basic Info.

Model NO. HY-54/76 Brand Name Hongyin Model Number Hy-54/76 Processing Type Plastic Thermoforming Machine Product Type Plastic Packaging Max Forming Area 540*760mm Thickness of Sheet 0.15-1.0mm Place of Origin Zhejiang China (Mainland) Voltage 380V 50/60Hz Dimension(L*W*H) 3220×1660×2660 mm Transport Package Wooden Packaging Specification CE Trademark HongYin Origin China HS Code 847780000 Production Capacity 30 Sets/ Year

Product Description

Application:

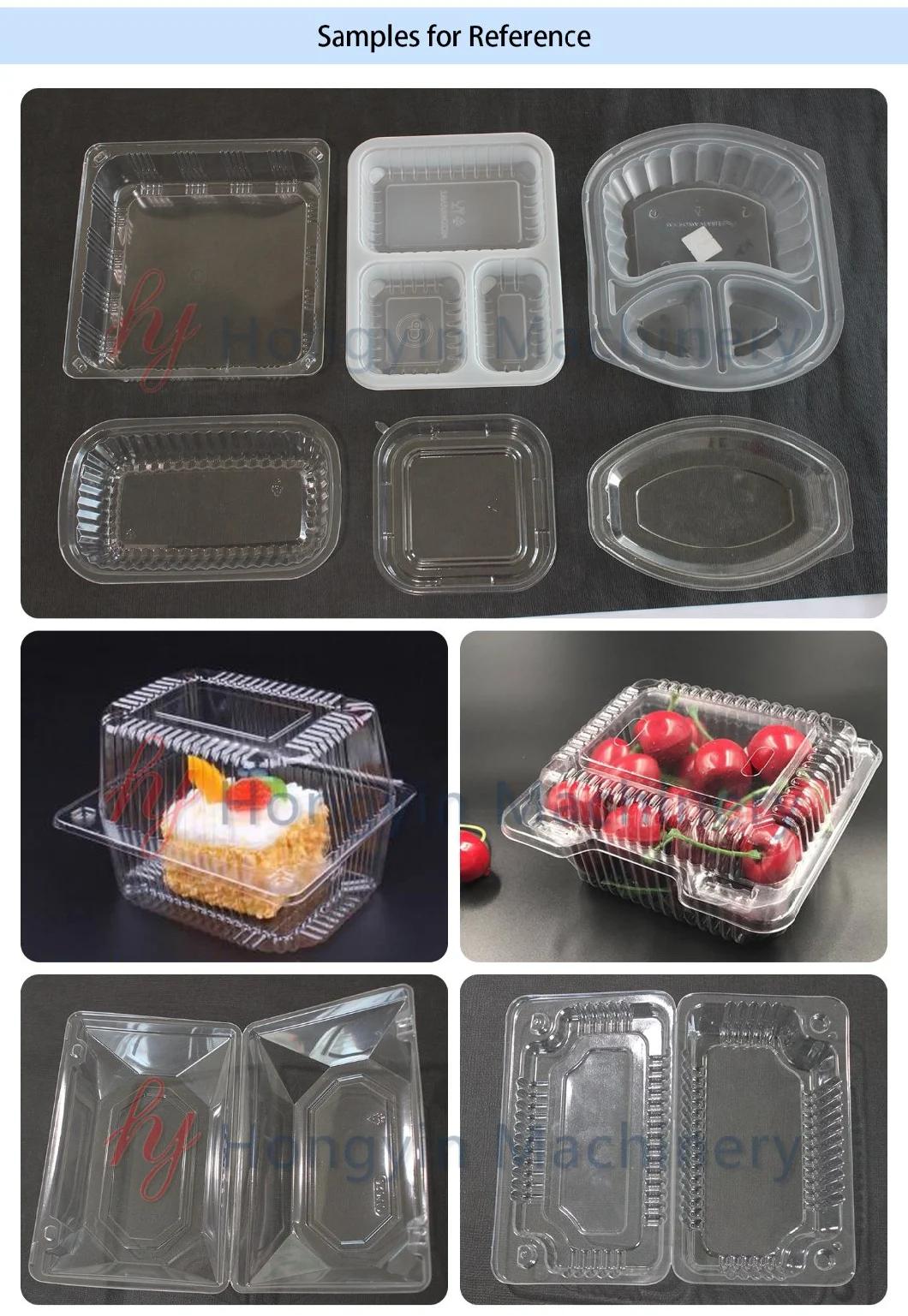

HY-54/76 automatic forming machine is suitable to form PP, BOPS, HIPS, PS, PVC, and PET plastic sheets, etc., which can produce various boxes, dishes, trays, bowls, and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays, etc.

Introduction of The Machine:

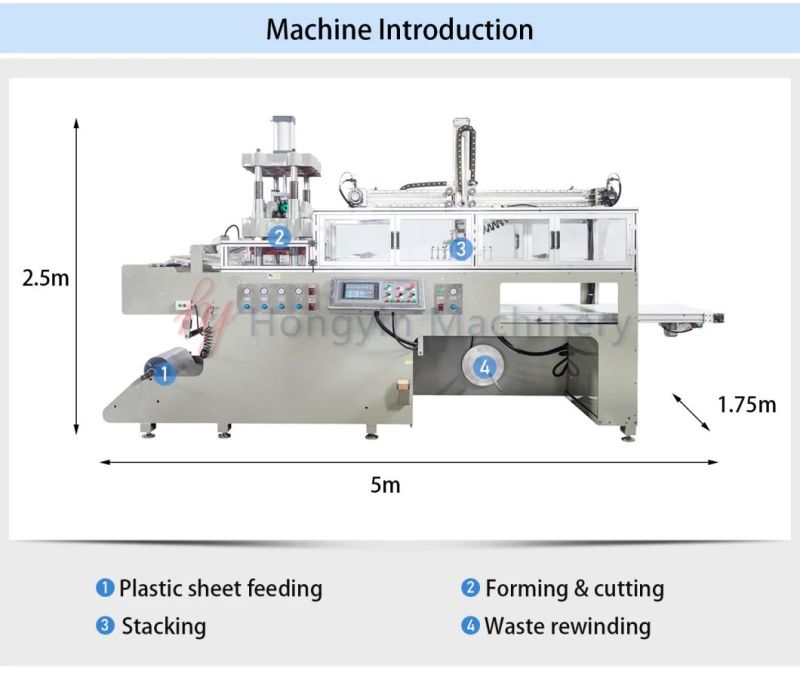

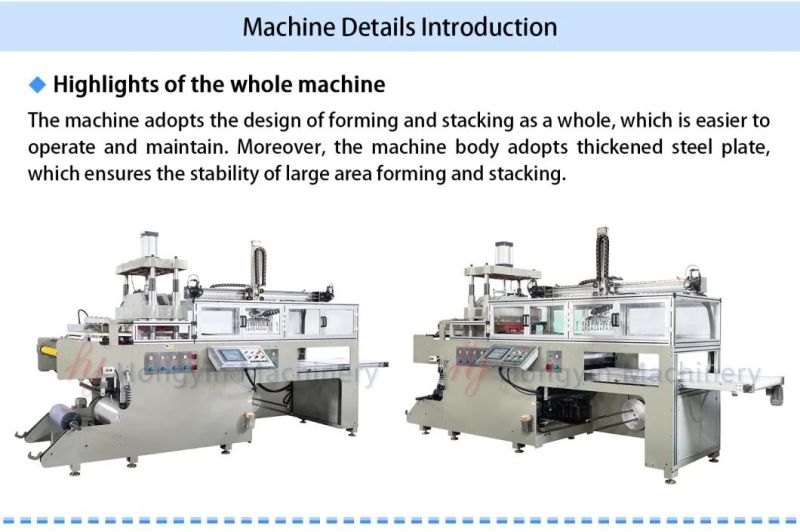

HY-54/76 plastic thermoforming machine is a combination of mechanical, electrical, and pneumatic components and the whole system was controlled by a micro PLC, which can be operated in a man-interface.

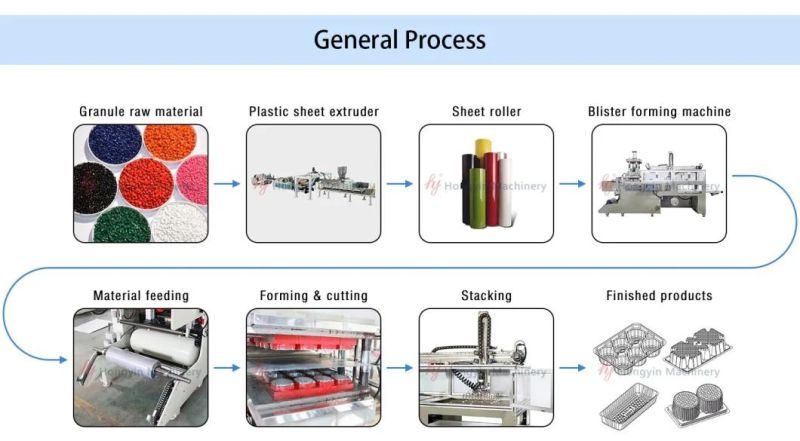

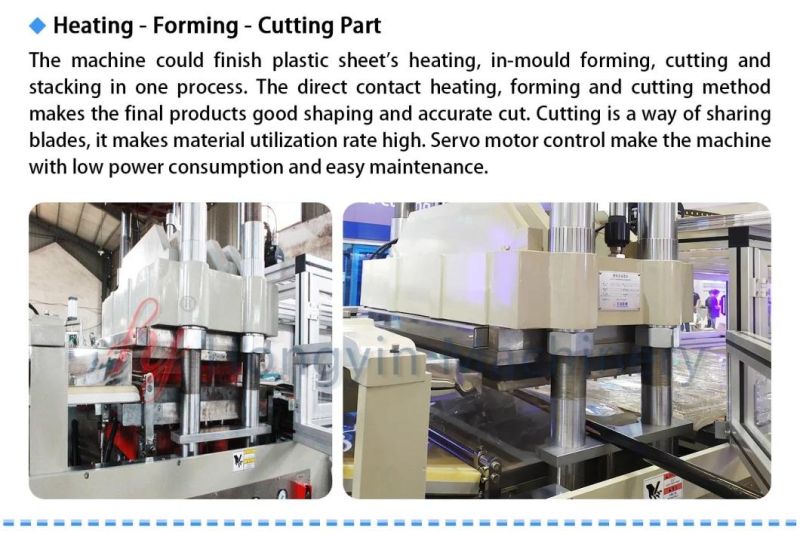

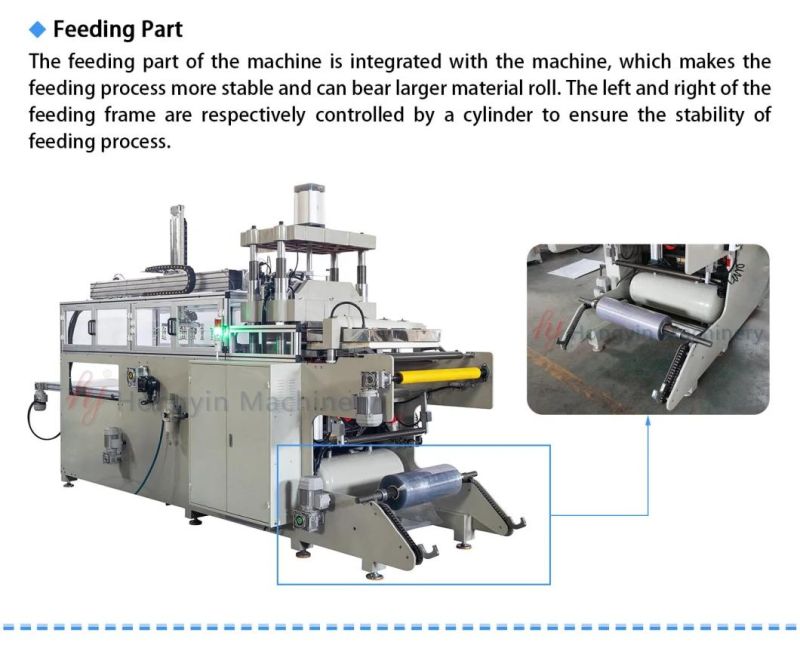

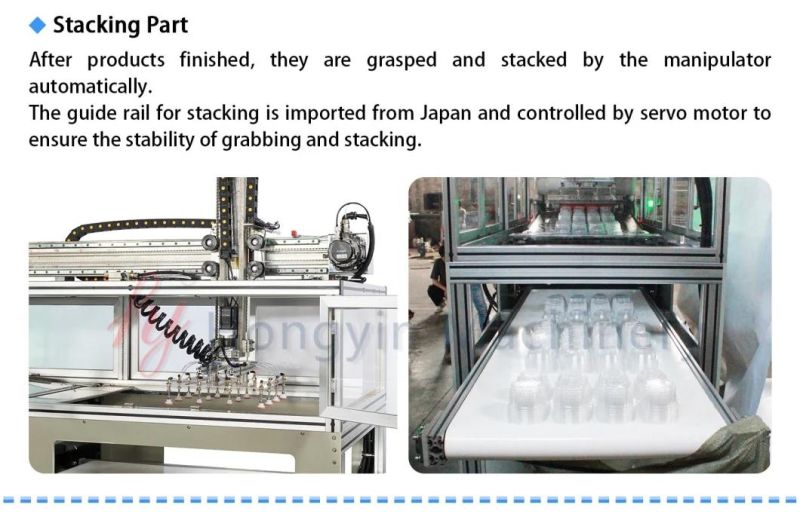

It combines the material sending, heating, forming, cutting, and stacking counting into one process.
It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.
Specification:

Forming Area	540× 760mm
Forming Depth	100mm
Sheet Thickness Range	0.15-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Three-phase, AC380V±15V, 50HZ

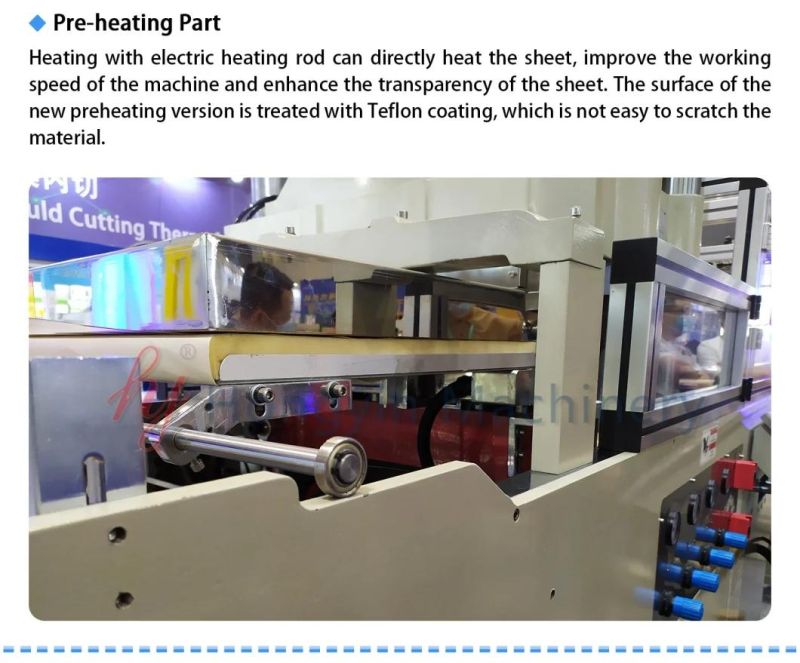

Preheating Power	4 kw
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	3500kg
Dimensions(L×W×H)mm	3220×1660×2660 mm

About Ruian Hongyin Machinery Co., Ltd Service.

1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.

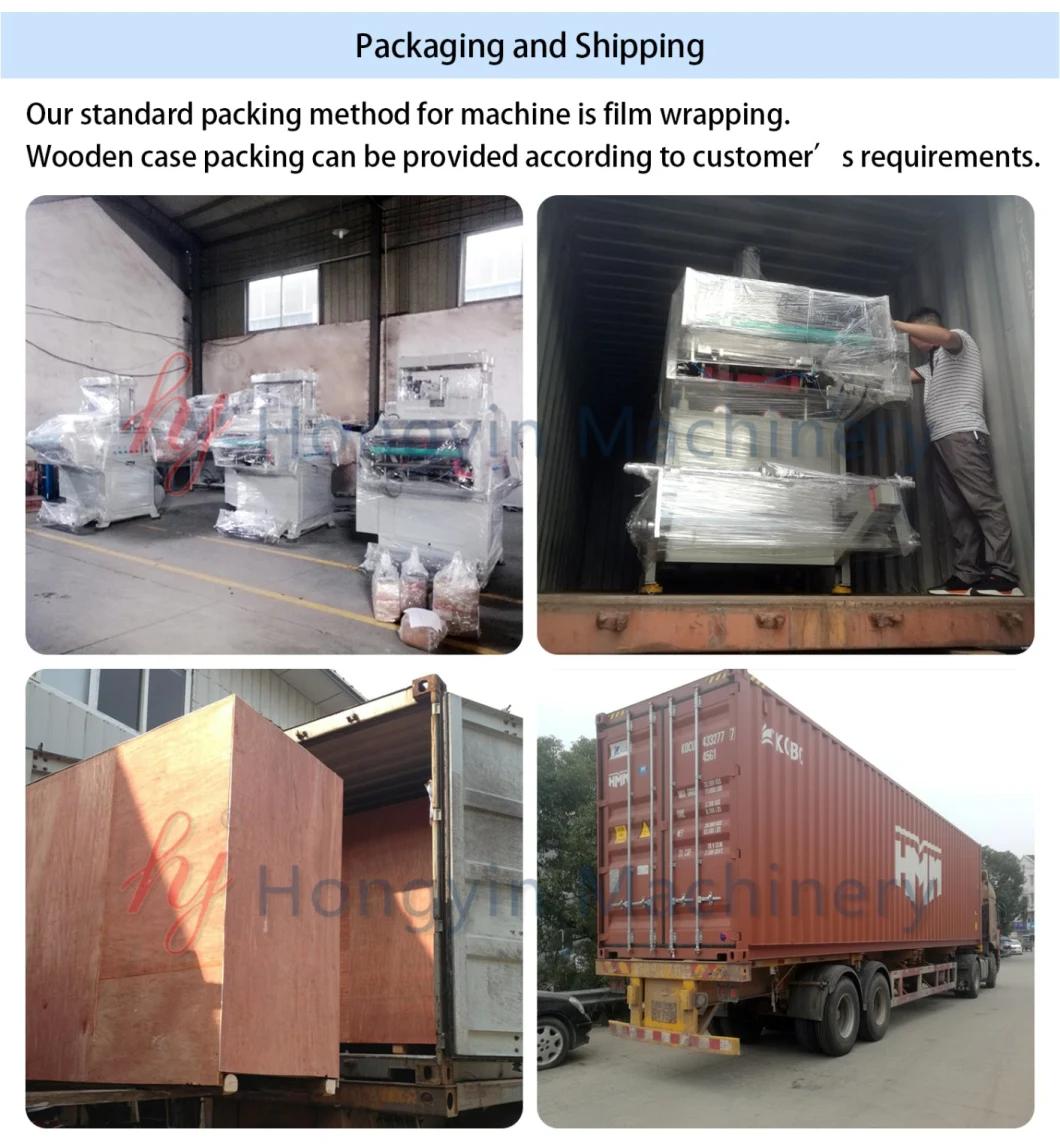

2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.

3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.

4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he can operate machine by himself.

5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.


If you are interested in our machine, please feel free and contact me.
