2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line

Zhejiang Pinbo Plastic Machinery Co., Ltd.
  • After-sales Service：Life Time
  • Warranty：1 Year
  • Type：Plastic Extruder
  • Plastic Processed：LDPE,CPE,TPE,PVC
  • Product Type：Stretch Film Machine
  • Feeding Mode：Multiple Feed

Base Info

  • Model NO.：PB-L65,90,65X1850
  • Assembly Structure：Separate Type Extruder
  • Screw：Multi-Screw
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Vlotage：Customized
  • Power (Kw)：180kw
  • Screw Diameter：90mmx1, 65mmx2
  • Screw L/D Ratio：30:1
  • Output (Kg/H)：180 - 280kgs
  • Weight：15t
  • Package：Plastic Film Wrapping
  • Transport Package：Standard Packing
  • Specification：L12500,W5500,H3800
  • Trademark：PYM
  • Origin：Zhejiang Province Wenzhou City
  • HS Code：84778000
  • Production Capacity：200sets,Year

Description

Model No.PYM-65/90/65*1850Screw Diameter65/90/65mmScrew L/D30:1Screw Speed50-150rpmLayer StructureABC/ACBCAFilm materialPEFilm Width1500mm/3*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power130KWCapacity180-300Kg/hTotal weight13.5TDimension13.5M*3.5M*3.5MProduct Advantages
  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability

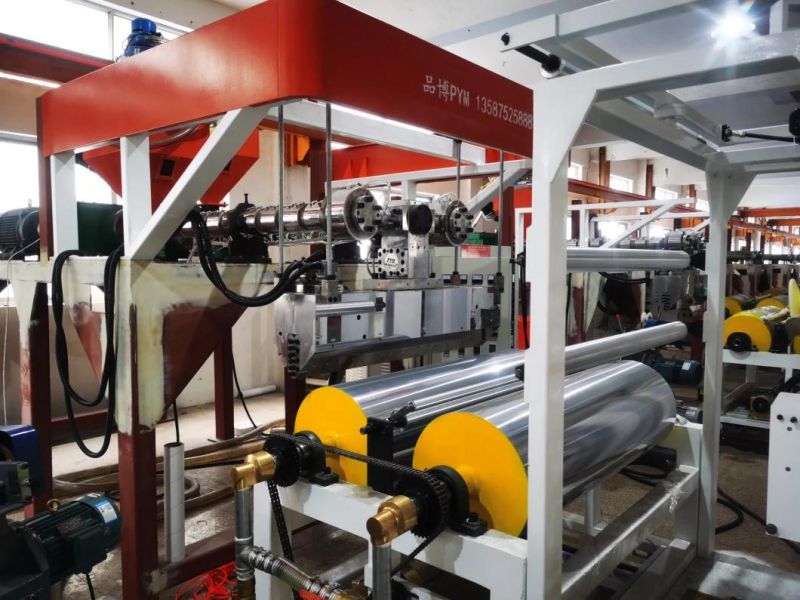

  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
  • Optional full automatic thickness gauge

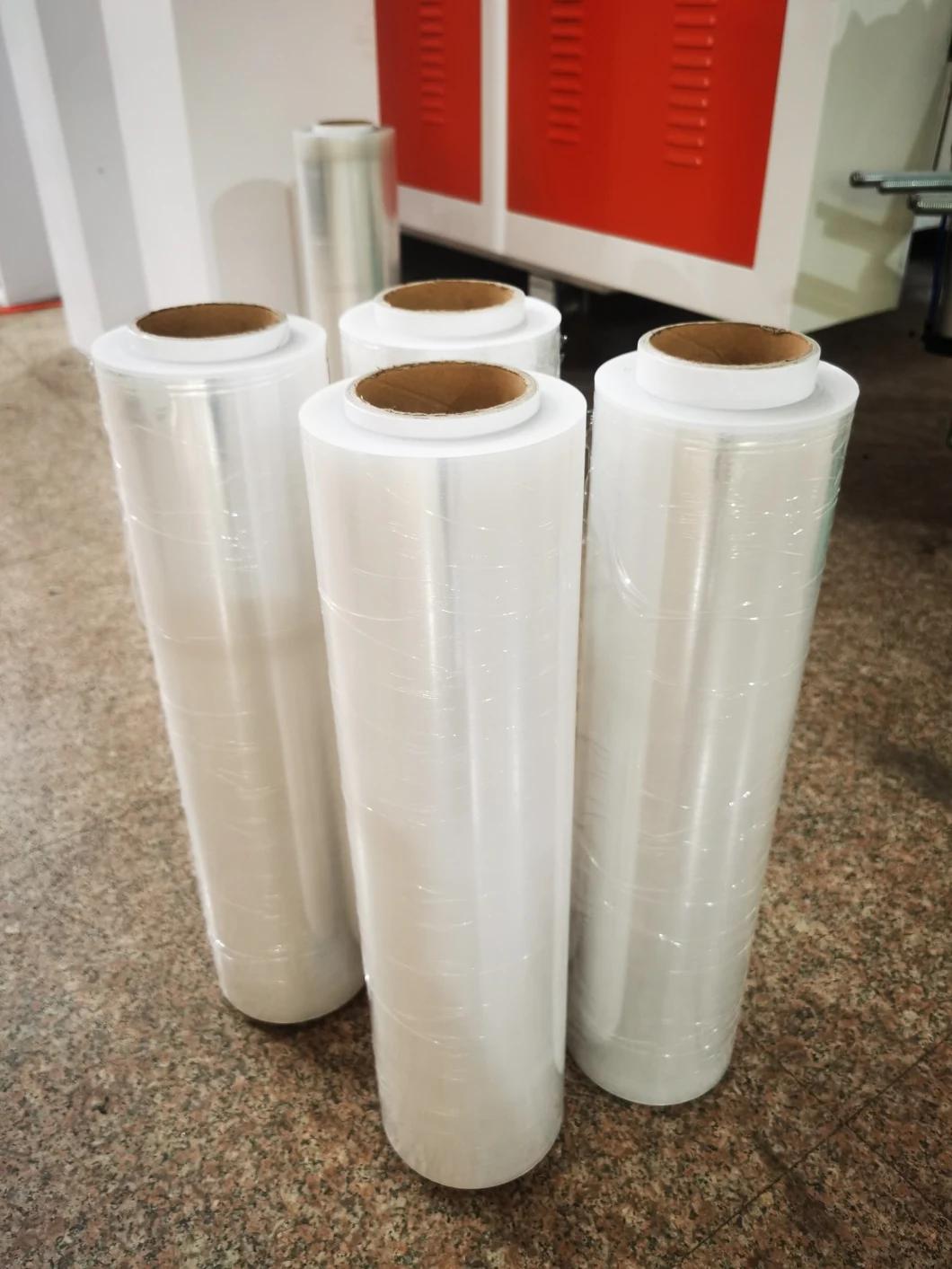

  • Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

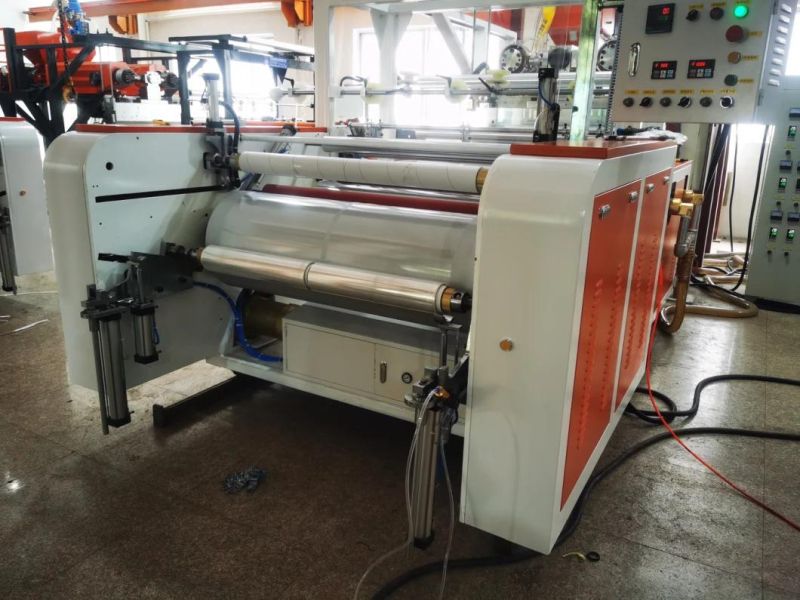

Machine details:
2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line
2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line
2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line2-3 Layer High Speed PE Stretch Cling Film Co-Extrusion Line
