HDPE LDPE Film Blowing Machine

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1500mm
  • Screw Diameter：45mm.55mm.60mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ-45(50-55-65-75)
  • Computerized：Non-Computerized
  • Machine Weight：3t
  • Certification：CE, ISO9001:2008
  • Certificate：CE, SGS, ISO9001, CQC
  • Power：18.5kw
  • Motor Brand：Siemens Brand
  • Die：Rrotation
  • Transport Package：Wooden Case
  • Trademark：YUNBANG
  • Origin：China
  • HS Code：84773000
  • Production Capacity：15 Sets,Year

Description

ModelSJ-ABA600SJ-ABA800SJ-ABA1000SJ-ABA1200Diameter of screwф45+50ф50+55ф55+60ф60+65L/D28:128:128:130:1Reduced diameter of film(mm)60080010001200Single-face Thickness of film(mm)0.015-0.100.015-0.100.015-0.100.01-0.15MMMax. Output(kg/h)5070100120Power of main motor(kw)11KW+15KW15KW+18.5KW18.5KW+22KW22KW+30KWHeating Power(kw)25354055Outline diameter(L×W×H)(mm)4800×2200×40005200×2400×46005600×2800×50006000×3200×5500Weight(T)456

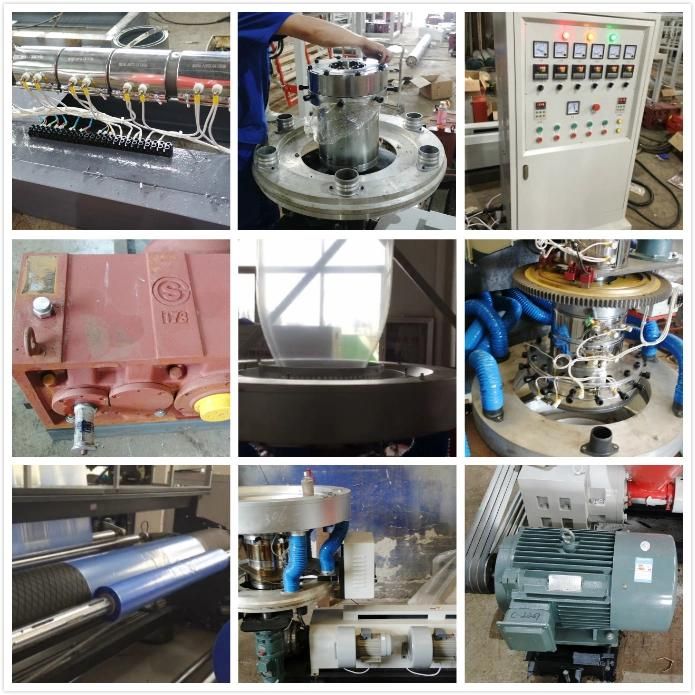

The Film Blowing Machine picture

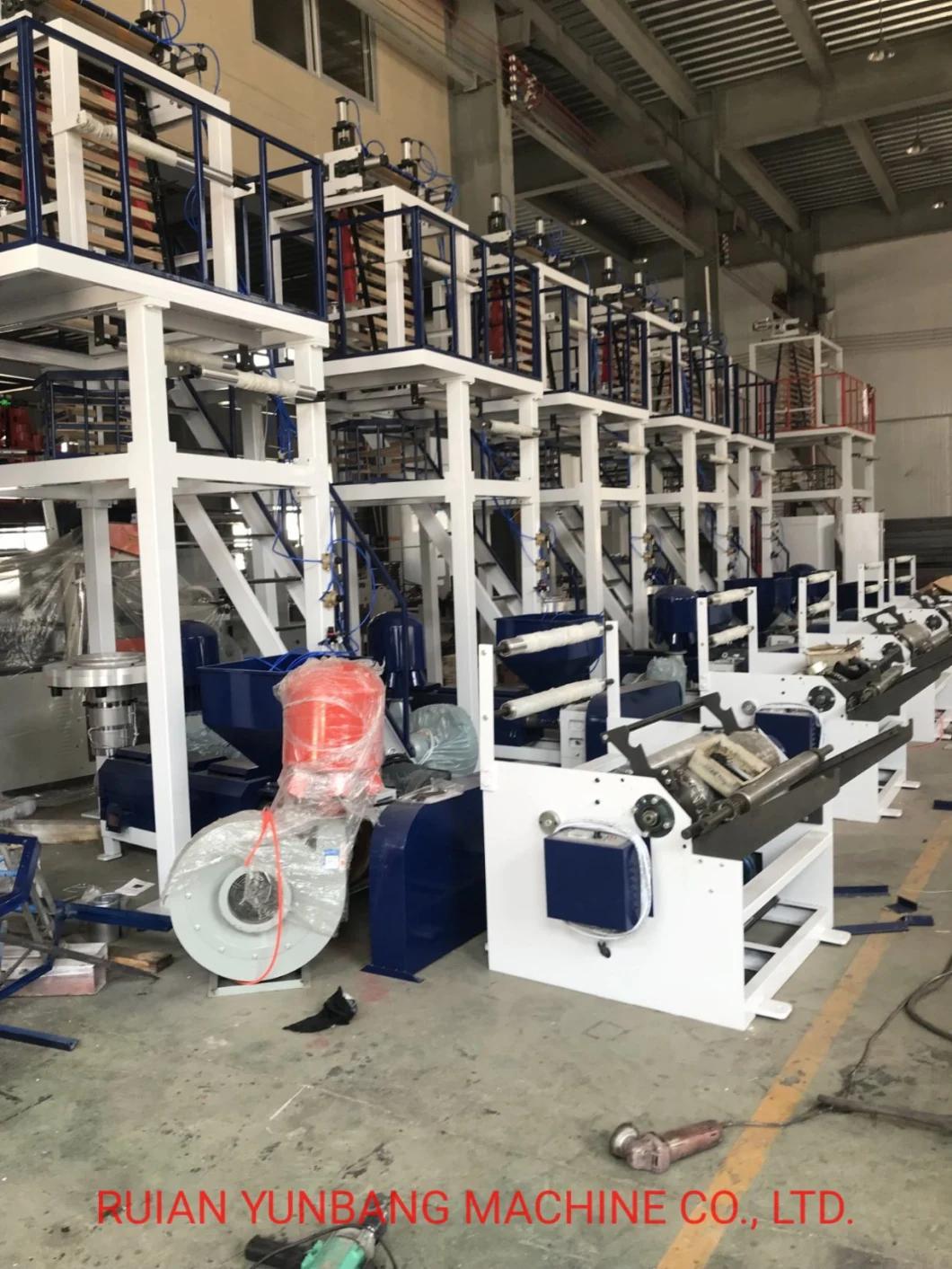

High Output Film Blowing Machine with Rotary Die& Double Winder

HDPE LDPE Film Blowing Machine
HDPE LDPE Film Blowing MachineHDPE LDPE Film Blowing Machine
