CPVC UPVC PVC Profile Production Line/ PVC Profile Extruder Line
Qingdao Tongsan Plastic Machinery Co., Ltd.- Type：Profile Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：SJ65,132
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Machine Type：PVC Profile Machine
- Material：PVC UPVC CPVC
- Product Width：Customerized
- Extruder Size：Sj51,105 65,132 80,156
- Production Speed：0.5-5m,Min
- Product：Ceiling,Wall,Skirting,Window,Door Frame
- Transport Package：Shipping Packing
- Specification：SJ65,132
- Trademark：TS
- Origin：China
- HS Code：8477209000
- Production Capacity：100sets,Year
Description

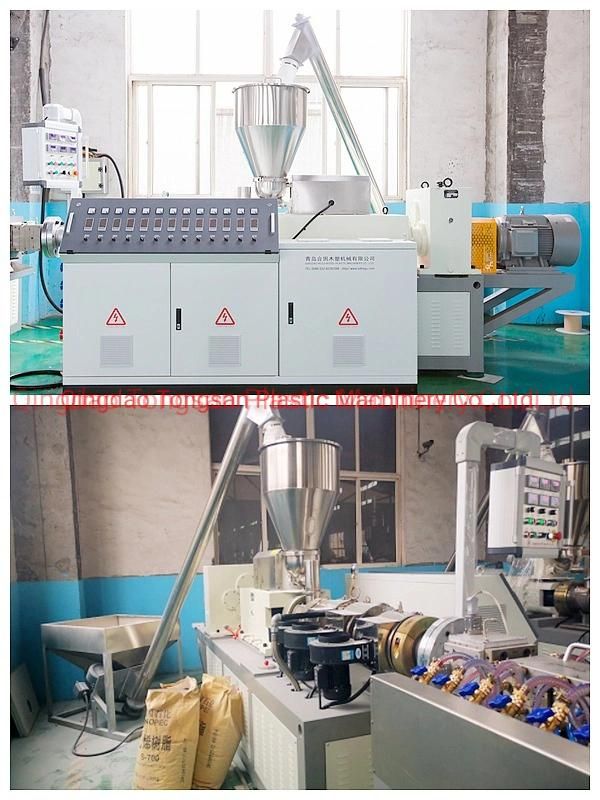

a. connical double screw extruder with auto loader
machine model: SJSZ51/105, 65/132, 80/156, 92/188
motor: SIEMENS
inverter: ABB
temperature controller: SIEMENS
b. die unit and mold
material: 3Cr17, tempering HRC28-32, ensure anti-rust, hardness and service life
Calibrator size: 240mm or 320mm
Quantity of calibrator section:1 or 2 or 3 or 4 sets according to product size shape
Water tank length: 2000mm or 4000mm, fiber glass board, accessories are made of stainless steel

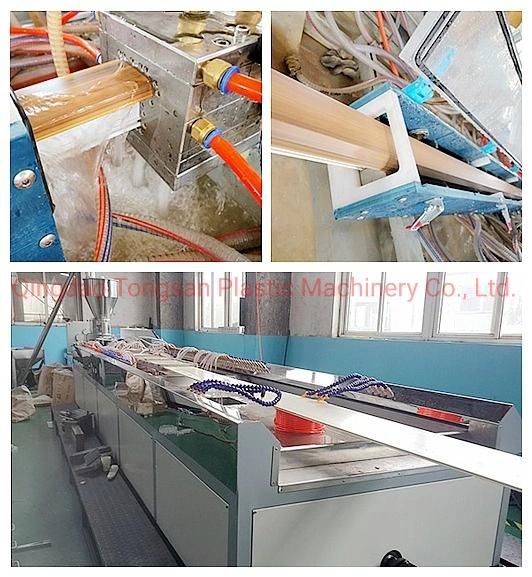

c. vacuum calibrating table
length: 6m,8m,10m,12m
material of surface: 304 stainless steel
vacuum pump included
water pump included

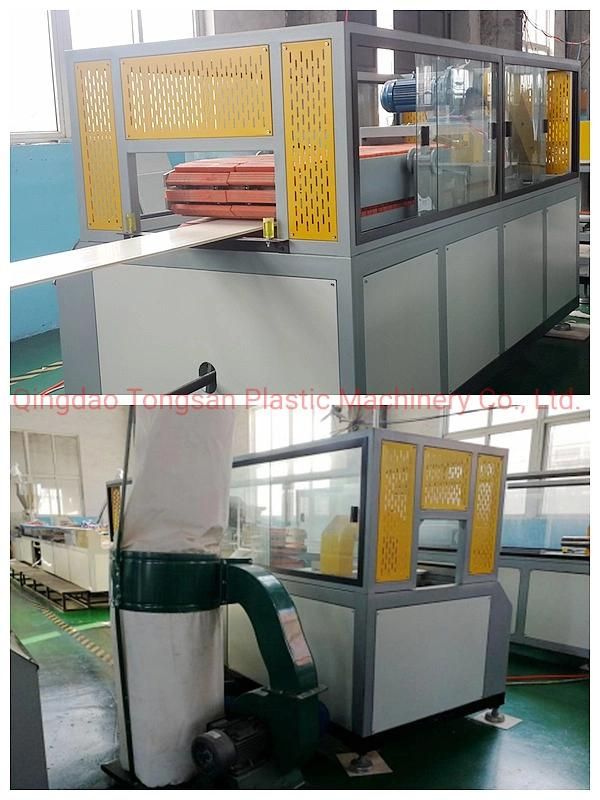

d. haul off and cutting machine
haul off with double gear box
haul off controlled by ABB inverter
saw blade cutting
dust collector included

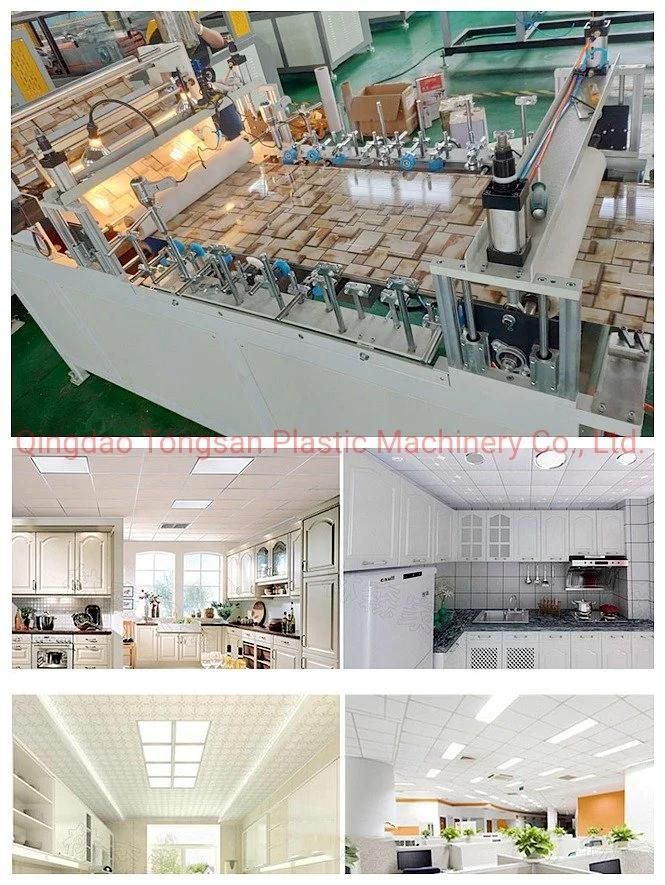

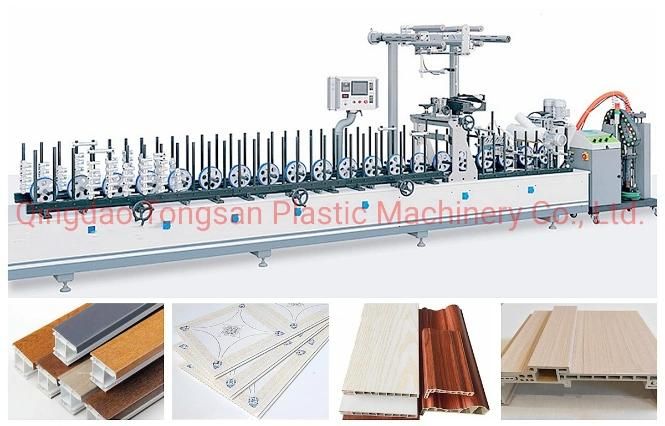

e. surface treatment machine: laminating machine
mostly laminating is used for pvc window and door profile,wall panel, skriting, decorative prifole

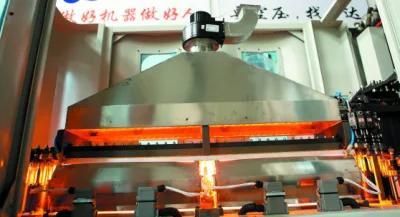

f. surface treatment machine: hot stamping machine
hot stamping is used for ceiling

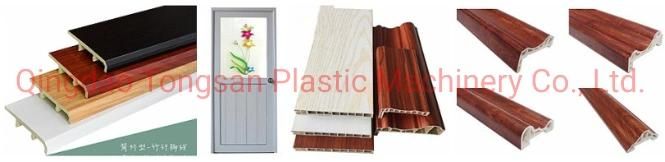

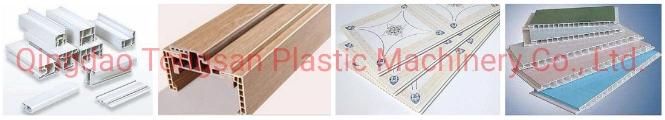

g. by change mold, same machine can produce the following products:
wall panel, skirting, window frame, door frame,decorative profile
