• Model NO.：JS-10II
• Max. Bottle Height：450mm
• Blow Machine Size：2.0*0.6*1.7m
• Oven Size：1.7*0.6*1.5m
• Weight：950kgs
• Raw Material：PET
• Making Method of Parison：Stretch Blow
• Automation：Non-Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Specification：SGS, CE
• Trademark：JIANSHENG
• Origin：Made in China
• HS Code：84773090
• Production Capacity：200PCS,H

Basic Info.

Model NO. JS-10II Max. Bottle Height 450mm Blow Machine Size 2.0*0.6*1.7m Oven Size 1.7*0.6*1.5m Weight 950kgs Raw Material PET Making Method of Parison Stretch Blow Automation Non-Automatic Computerized Computerized Certification CE, ISO9001:2008 Transport Package Wooden Case Specification SGS, CE Trademark JIANSHENG Origin Made in China HS Code 84773090 Production Capacity 200PCS/H

Product Description

Semi automatic blow molding machine JS-10II specification:
1.Mold gathering strength(KN): 280
2.Mold travelling distance(mm): 400
3.Pulling rising travelling distance(mm): 550
4.Mold hole number(cavity): 1

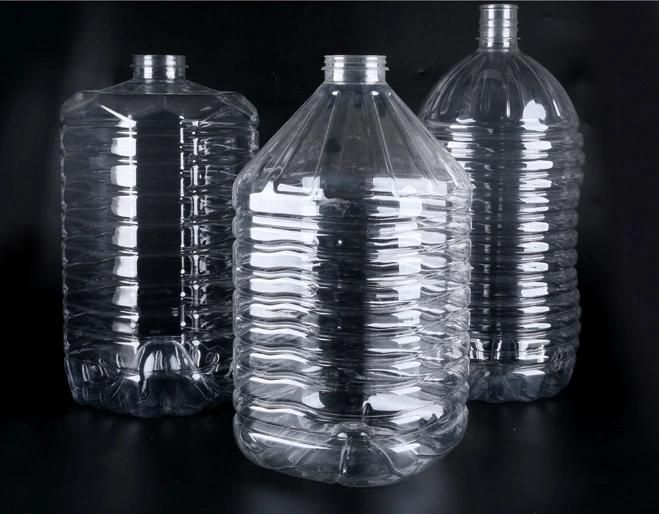

5.Max. bottle capacity: 10L
6.Tooth part size(mm): 50
7.Max. bottle diameter(mm): 230
8.Max. bottle body height(mm):450
9.Theoretic production capacity(bph): 200pcs
10.Total power consumption(kw): 11
11.Thermal rating(kw): 10
12.Operating pressure(kg/cm2): 8
13.Low pressure gas consumption(L/min):200
14.Bottle blowing pressure(kg/cm2):30
15.High pressure gas consumption(L/min):1000
16.Machine size: 2.0*0.6*1.7m        Oven size: 1.7*0.6*1.5m
17.Machine weight: 0.95T
