• Model NO.：SJZ315-630
• Condition：New
• U-PVC Pipe Production Line：800kg,H Capacity
• Transport Package：Wooden Packing
• Specification：CE
• Trademark：Middle tech industry
• Origin：China
• HS Code：84772090
• Production Capacity：800kg,Hr

Basic Info.

Model NO. SJZ315-630 Condition New U-PVC Pipe Production Line 800kg/H Capacity Transport Package Wooden Packing Specification CE Trademark Middle tech industry Origin China HS Code 84772090 Production Capacity 800kg/Hr

Product Description

Application of Pipe:

Through market combination and continuous research innovation, Midtech pleased to provide energy saving (15% down), high standard (Bimetallic & PLC Intelligence), reliable quality (vertical gearbox by SKF bearing) extruder and whole set extrusion and production line
We are capable of producing pipe diameter up to 710mm for PVC pipe.

Main parameter of PVC pipe production line extruder machine

Extruder model	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	100000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB
Contactor brand	Schneider	Schneider	Schneider	Schneider	Schneider

Equipmnet List :
PVC pipe extruder machine line : consists mainly of

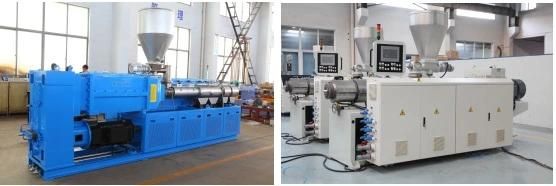

Twin conical (parallel) screws extruder,

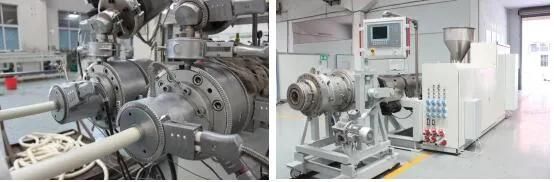

Mould

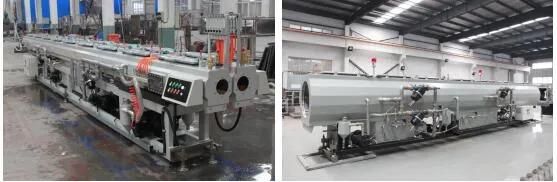

Vacuum calibrating tank,

 Haul-off unit,

 Cutting unit,

Feature of Machine:
1. Applied with imported A/C inverter.
2. Famous brand of vacuum pump and driving motor
3. Hal-off Machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
4. Saw cutting or planet cutting can be applied
5. it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.



If you need any support, please don't hesitate to contact us on 0086-13962227556.
