Extrusion equipment of Jacket pipe for thermal insulation pipe

PE series Extrusion equipment of Jacket pipe for thermal insulation pipe designed by absorbing the tube extrusion developed technology from German and inproved by Qingdao Huashida Machinery Co. Ltd..


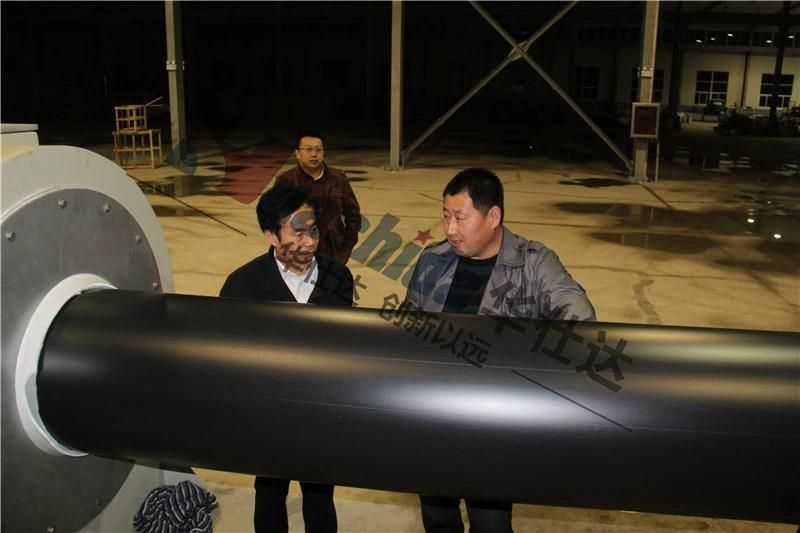

The Extrusion equipment of Jacket pipe for thermal insulation pipe is an intergration design  composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and sevice life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than in for stiffness, pressure resistance and surface smooth.



Compared with inflating method (internal pressure method)
1) For 24 hours working, it reduces 2-3 workers for each shift.
2) There is much waste pipe and material, no need workers to crush waste          material.
3)  High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is much higher output than that of inflating method.
4) Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5)  No need trim edge, once forming.
Extrusion equipment of Jacket pipe for thermal insulation pipe is the most advanced and popular machinery in the wold.

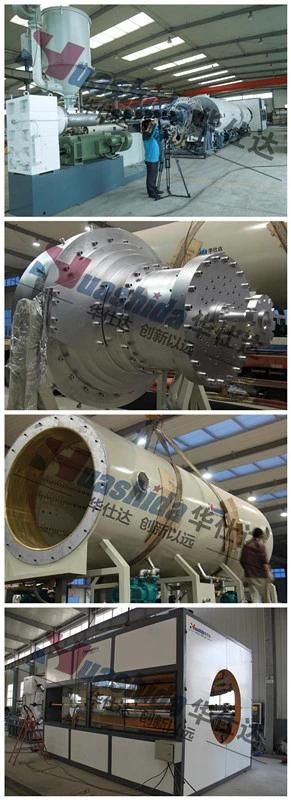

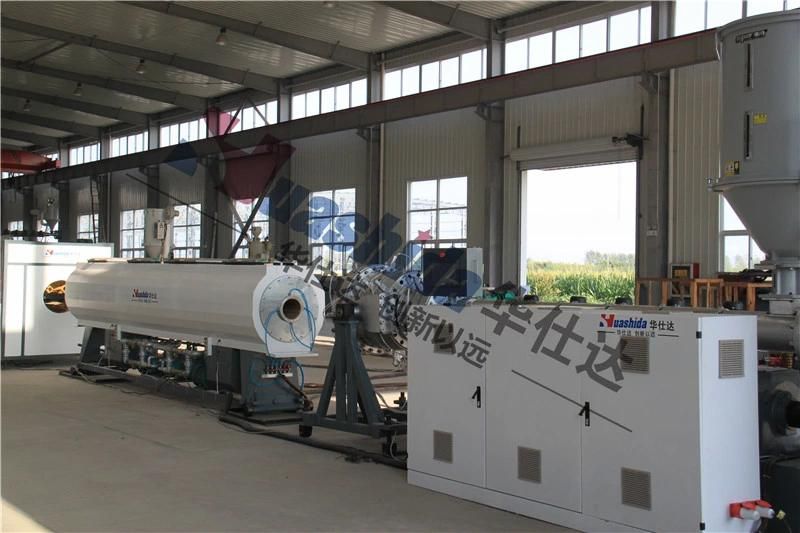

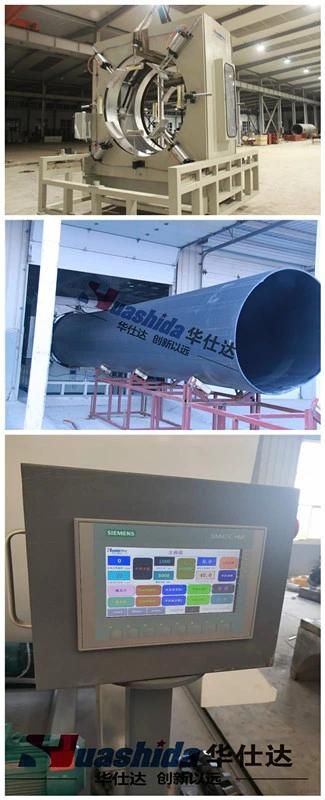

The composition of the Extrusion equipment
1. Single screw extruder
2. Die-head
3. Vacuum forming tank
4. Caterpillar Haul-off machine
5. No-Dust Cutter
6. Controlling system
7. Discharging fram



Techincal parameters

Style	PE-110/600	PE-655/1372	PE-960/1680
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1372mm	Φ960-1680mm
Capacity	250-350kg/h	700-900kg/h	800-1200kg/h
Installed power	160kw	440kw	580kw
Length	28m	32m	45m

Qingdao Huashida Machinery Co., Ltd was established in 2003 and has focused on plastic pipe production line and joints of plastic pipes and 2PE 3PE pipes for over 14 years, we are a private high-tech enterprises integrated by R&D, manufacturing, selling, service and trading.



We are always concentrating on research and development of plastic extrusion equipments, tightly cooperating with Tsinghua University, Beijing University of chemical technology, South China university of technology and some other colleges and scientific research institutions. Meanwhile, by absorbing advanced technology home and abroad, we have been one of the top manufacturers of plastic extrusion machines in China, especially of PE insulation jacket pipe extrusion line, PE PP sheet extrusion line, and PE hollow wall spiral pipe production line.
