Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder
Zhejiang Hongyin Machinery Co., Ltd.- After-sales Service:Video Technical Support, Free Spare Parts
- Warranty:1 Year
- Type:Sheet Extruder
- Plastic Processed:PP,PS,HIPS
- Screw:Single-Screw
- Screw Channel Structure:Deep Screw
Base Info
- Exhaust:Exhaust
- Automation:Automatic
- Computerized:Computerized
- Model:Hy-110
- Suitable Material:PP PS HIPS
- Sheet Thickness:0.2-2.0mm
- Sheet Precision:0.015-0.01mm
- Effective Width:400-700
- Capacity:160-200kg,Hr
- Layer:1
- Rated Output:80kw
- Dimension:12*1.6*2.0m
- Transport Package:Wooden or Film
- Specification:CE
- Trademark:HongYin
- Origin:Zhejiang China
- HS Code:8477101090
- Production Capacity:10set,Mounth
Description
Basic Info.
Exhaust Exhaust Automation Automatic Computerized Computerized Model Hy-110 Suitable Material PP PS HIPS Sheet Thickness 0.2-2.0mm Sheet Precision 0.015-0.01mm Effective Width 400-700 Capacity 160-200kg/Hr Layer 1 Rated Output 80kw Dimension 12*1.6*2.0m Transport Package Wooden or Film Specification CE Trademark HongYin Origin Zhejiang China HS Code 8477101090 Production Capacity 10set/MounthProduct Description
Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/0b/bb/e7/8f/eeb4985082f5f2cf7ce66ab58fb42468.jpg)

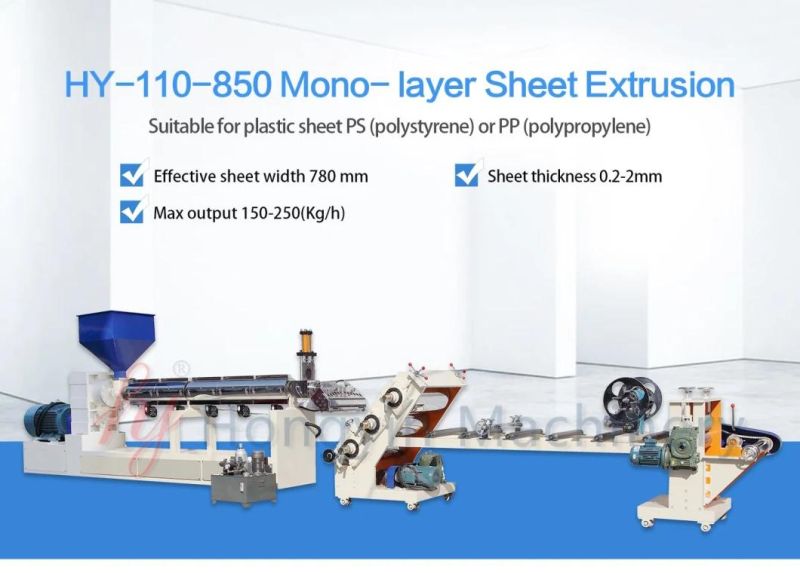

This machine is designed to produce plastic sheets for thermoforming/vacuum forming purposes or stationery use, which is composed of 7 parts: extruder part, filter part, die-head part, 3 rollers part, traction part, winding part, and side trimming part.
The machine body is made of reinforced integral steel, which makes the machine run stably and smoothly.
Applicable Materials:
It is used to produce various plastic sheets of PS (polystyrene) or PP/HIPS (polypropylene), which can be widely used to produce plastic cups, plastic bowls, plastic containers, and boxes, etc.
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/83/7d/02/7a/58538c058ae90920b2d77dd9381a0d5f.jpg)
Main parts introductions:

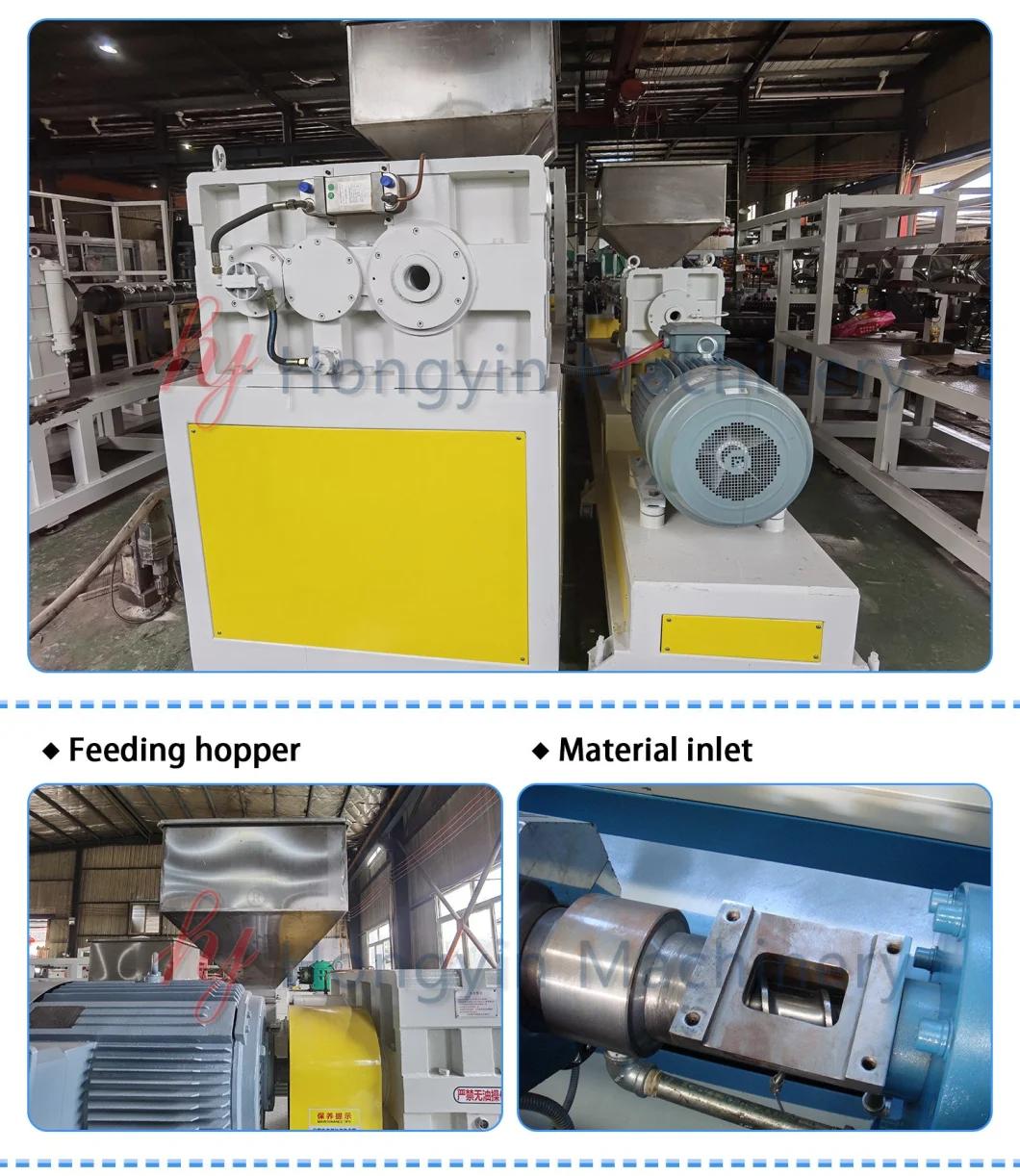

Gear reduction unit:
Adopts high-quality GUOMAO gear reducer.
The gear reducer is driven by helical gear on the hard tooth surface. The gear material is of high-quality 20CrMoTi Forging parts, high-frequency treatment, hardness hrc54-58 (tooth surface grinding).
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/cf/4a/68/1d/c729c8ef3a6b2c6afd5ae40c2b98f567.jpg)

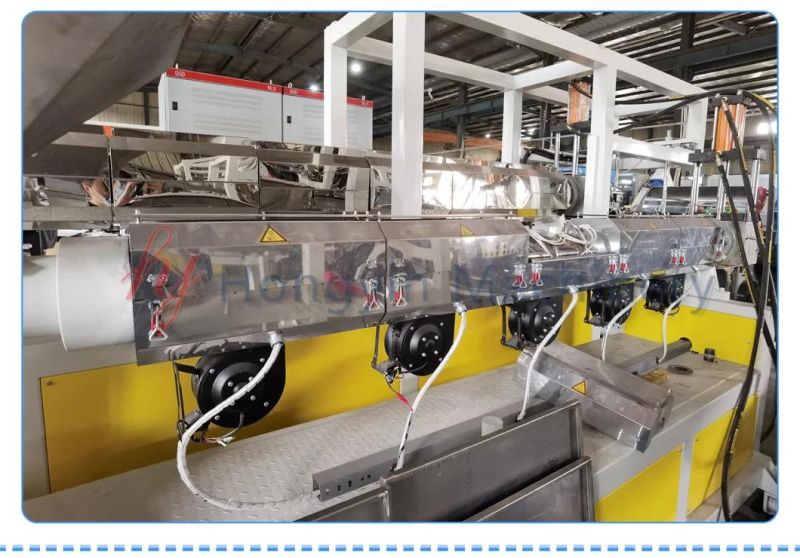

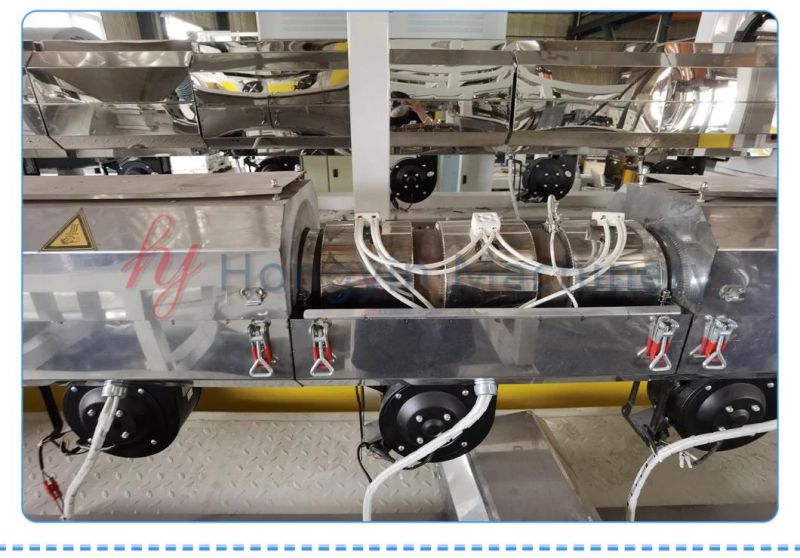

a. Adopts 7 rows Stainless steel heating ring
b. Power: AC 220V, 5OHZ
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/f8/f9/bf/62/6ef2f62a423b74c70156476b8c32f0a6.jpg)
Barrel & Screw material: 38CrMoALA
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/77/48/ab/c5/bea1af9b92842b08659793c20be2f517.jpg)

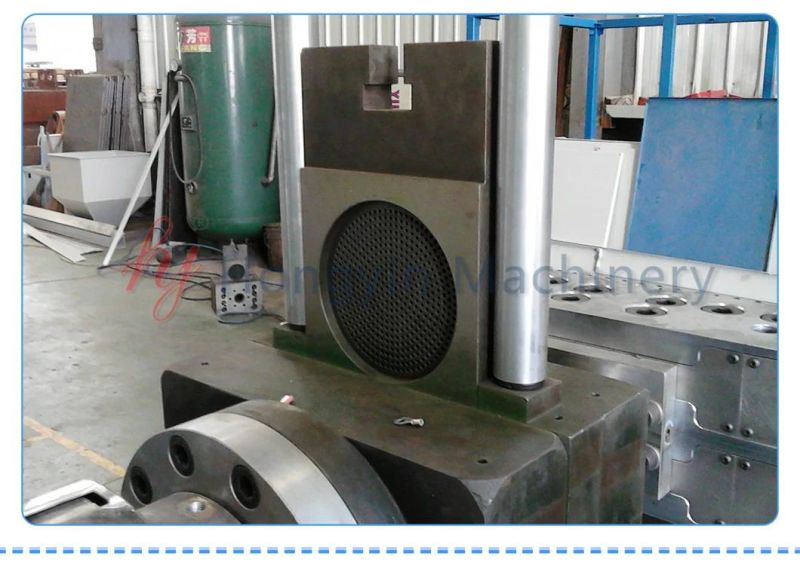

It is used to filter impurities in the extrusion process.
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/10/82/50/f1/ab1e3402a487d319dd166bdd5ed6ccc8.jpg)

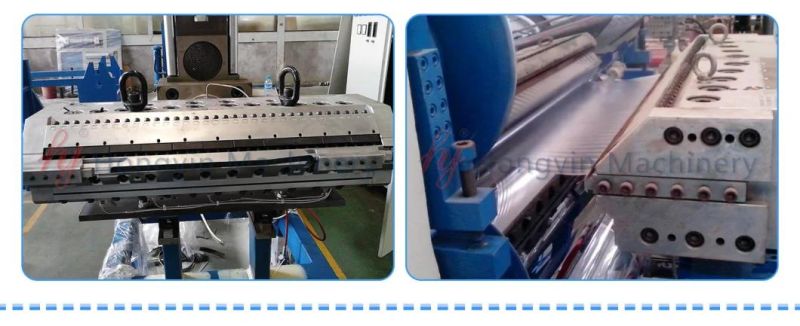

Mold material adopts 40 Cr forge
The die heating area has 5 zones
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/7c/8f/ad/9c/edcc1bab3188e50ee7fdf6d5e2140398.jpg)
1. Transmission mode: Three-roller independent motor control, each motors control by inverter. (Servo motor control is optional).
2. Roller adjusts way: Control by turbine and worm synchronous.
3. Three-rollers circulating water cooling.
4. Inner screw-type roller, ensure cooling effectively.
5. The roller is processed by medium frequency. The surface hardness of the roller is HRc58 or above, and the quenching depth is 3-5mm.
6. The bearing pedestal is made of 45# steel. The structure is divided into sections for easy bearing replacement and maintenance.
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/45/4d/61/2e/21dcb6596bfdb0f59812d9683453a0a3.jpg)

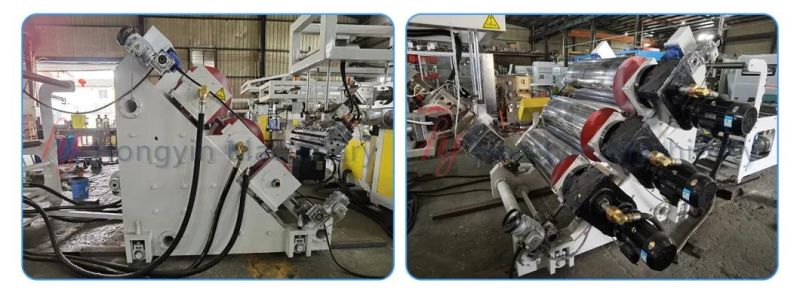

There are two options for material traction. If the machine area needs to be smaller, bridge traction can be used.
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/9c/d6/e1/20/f5d1e3c780cc21bd62a5ab225e823453.jpg)

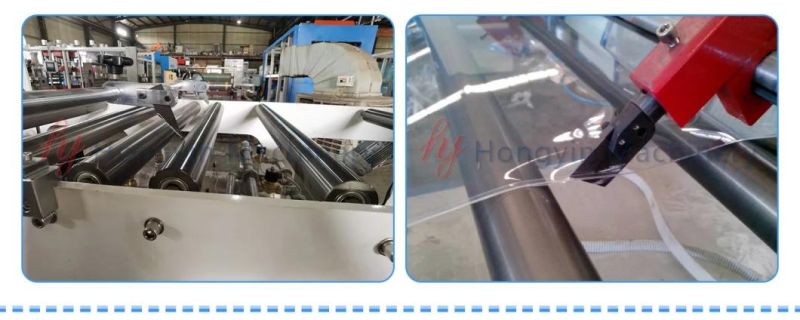

Two cutting knives can be used on both sides to effectively remove the edge material and cut the sheet material to reach the required width.
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/12/c5/38/d7/50b9cbabd4719efd0c1388b26bd1800a.jpg)
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/ce/db/72/8c/1516ce52e9f7a6e667b23c0ef58b8892.jpg)
![Auto Plastic Sheet Extruding Machine Single Screw Plastic Extruder](http://www.676102.com/uploads/image/2021/95/96/80/38/7a793253c1fd22ef761b48639c82ec64.jpg)
About Ruian Hongyin Machinery Co., Ltd Service.
1. Installation Service:
Hongyin company will assign 1 technician to coordinate installation, commissioning, and training, the cost for the return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
2. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer.
