• Model NO.：PXB80A
• Bottom Blowing：Available
• Material：PP, PE, ABS...
• Total Weight：11t
• Output(Dry Cycle)：650 PC,Hr
• Die Head Option：Accumulator Head
• Transparent Line：Available
• Production Usage：Toys, Auto Parts, Tool Case, etc
• Multi-Layer：Available
• Multi-Color：Available
• Screw Diameter：80mm
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 30L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

Basic Info.

Model NO. PXB80A Bottom Blowing Available Material PP, PE, ABS... Total Weight 11t Output(Dry Cycle) 650 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Toys, Auto Parts, Tool Case, etc Multi-Layer Available Multi-Color Available Screw Diameter 80mm Transport Package Film Packing with Wooden Bottom Specification Max capacity 30L Trademark Puxin Origin Suzhou HS Code 847730100

Product Description

PXB80A
12L - 30L Blow Molding Machine


Special Feature:
- High Speed Fixed Station For HDPE, PE, PP, PS Material Product
- Perfect Usage for 12L - 30L Bottle, Jerry Can, Container, Tool Box, Auto parts
- Optional Transparen Line
- Optional Multi-color
- Optional Customization of 3D AutomobileTube Production.
- Quick Action Speed, Stable Running


Configuration List

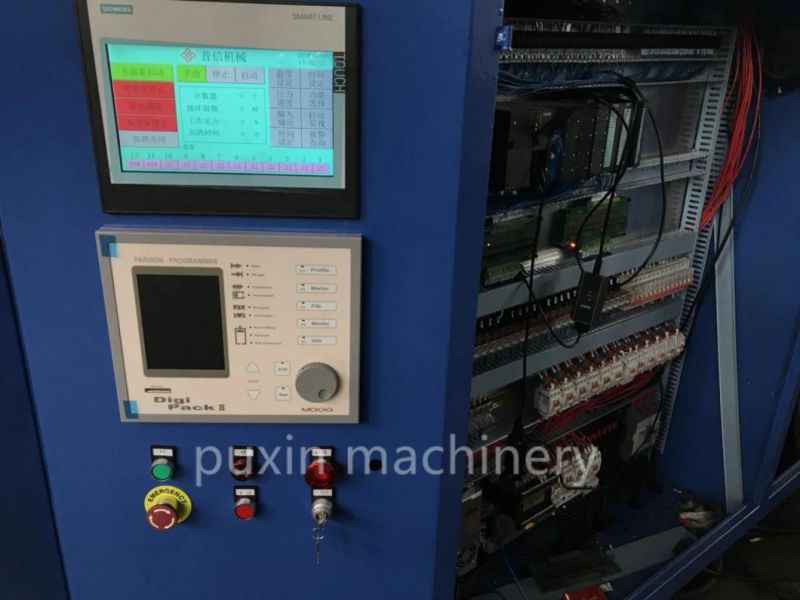

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan

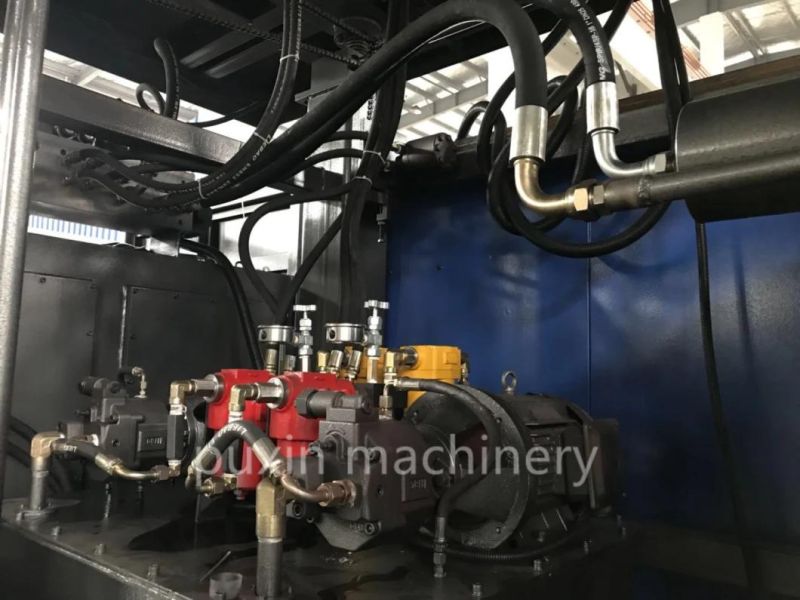

Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	Siemens	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Parameters

Material		PE, PP, ABS...
Max container capacity	L	30
Output(dry cycle)	PC/hr	650
Machine dimension(L×W×H)	M	4.7×2.6×4
Machine weight	T	11

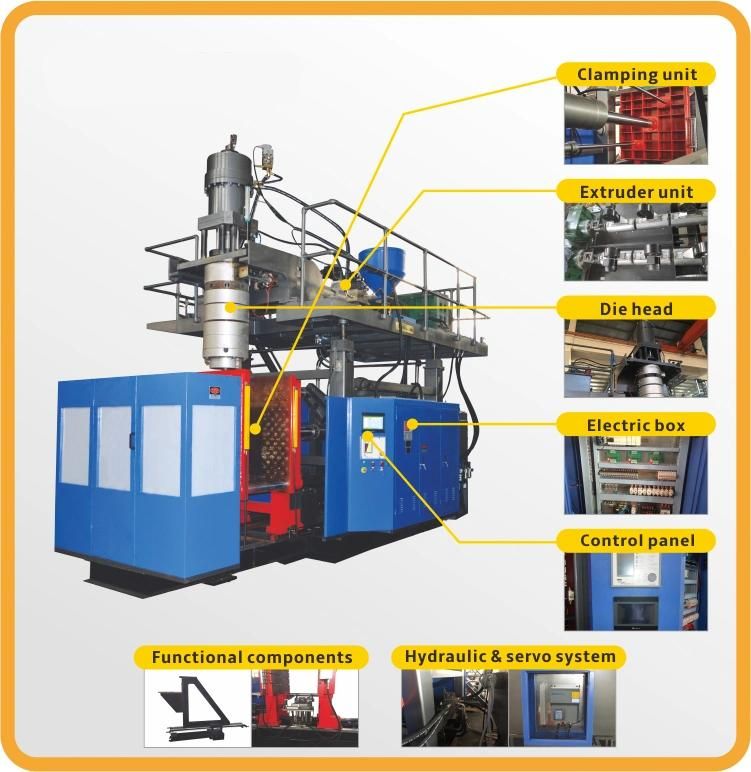

Clamping Unit
Clamping force	Kn	200
Mold platen size(W×H)	mm	750×860
Platen opening stroke	mm	350-850
Platen moving stroke	mm	500
Max mold size(W×H)	mm	520×960
Mold thickness	mm	360-420
Power
Servo oil pump motor power	KW	13
Servo pump displacement	L/MIN	80
Blow pressure	MPa	0.8
Air consumption	M3/MIN	0.7
Cooling water pressure	MPa	0.3
Water consumption	L/min	70
Average energy consumption	KW	28-32
Extruder unit
Screw diameter	mm	80
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	Kg/hr	120-140
Number of heating zone	Zone	4
Screw heating power	Kw	21.4
Screw fan power	KW	0.5
Extruder motor power	Kw	30(37)
Die head
Number of heating zone for single die head	Zone	4
Heating power for single die head	Kw	21.3
Max die-pin diameter	mm	250
Accumulator capacity	L	5

Delivery Time:
- No later than 45 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
