Plastic Disposable Bowl Making Thermoforming Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Certification：CE
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic

Base Info

  • Model NO.：PTM-BOWL
  • Transport Package：Film Packaging
  • Specification：4.5m*1.6m*2.4m
  • Trademark：HOIN
  • Origin：Ruian,Wenzhou,China
  • HS Code：8477409000
  • Production Capacity：10sets,Months

Description

Material

PP/PE/PS/PET/PVC (Hard Sheet)

Sheet Thickness

0.3-2.0mm

Sheet Width

500-720mm

Max Install Area Of Mould

750×350mm²

 Max Forming Area

 720×320mm²

 Up Heater Power( More length )

Heating enough ensure cup in good shape

 10Rows×8Zones×800w

 Down Heater Power

 9Rows×8Zones×800w

 Max Shaping Depth

 170mm(Can Be Adjust)

 Max Forming Depth

 130mm(Can Be Adjust)

 Productivity

 10-30 Strokes/min

 Heating Rated Power

 About 50kw/hour

 Total Power

 140Kw

 Main Motor Power

 11Kw

 Power Supply

 380V/50Hz(Three Phase Four Wire)

 Voltage

 0.6-0.8Mpa

 Air Volume Required

 2500~3500L/min

 Water Volume Required

 40~45L/min

 Machine Weight

 About 6T

 Overall Dimension

 4.5m×1.8m×2.4m

C.MACHINE DETAILS

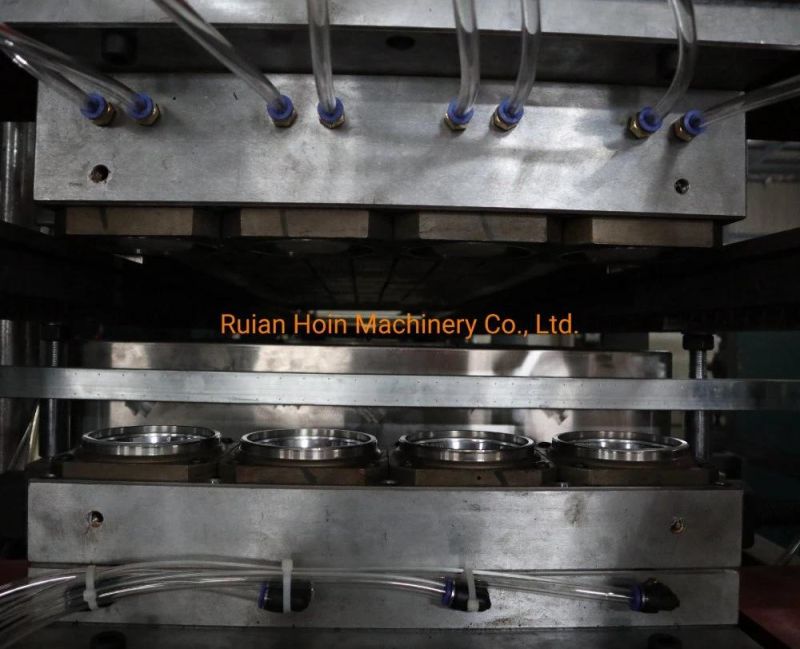

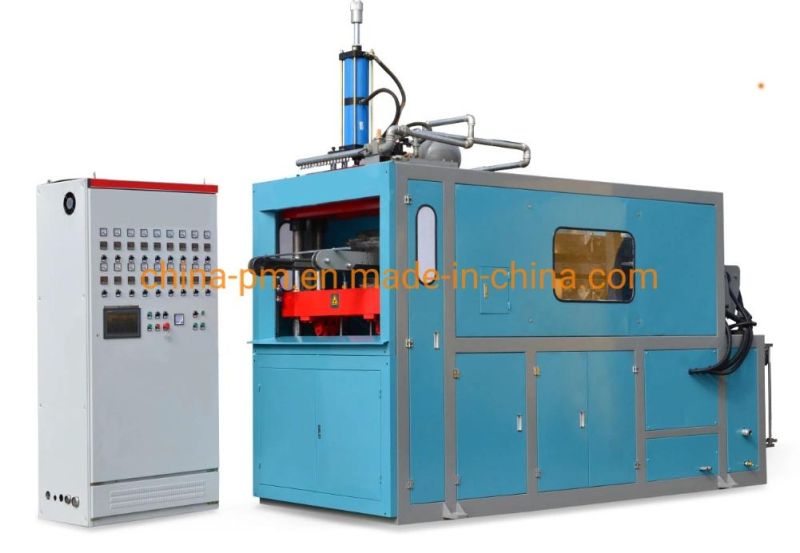

Thermoforming Machine PhotoPlastic Disposable Bowl Making Thermoforming MachineMould For Making Plastic  Disposable Bowls
Plastic Disposable Bowl Making Thermoforming MachineThermoforming  Machines
Plastic Disposable Bowl Making Thermoforming MachineD.MORE PRODUCTS
1.Plastic Sheet Extruder(Single Screw/Double Layers)
2.Plastic Thermoforming Machine(Cup/Lid/Bowl/Tray/Container Making Machine,etc...)
3.Thermoforming Moulds(Cup/Lid/Bowl/Tray/Container Mould,etc...)
4.Plastic Cup Printing Machine & Cup Packing Machine & Cup Stacking Machine
5.Film Blowing Machine & Flim Printing Machine & Bag Making Machine
6.Other Auxiliary Equipments:Mixing Machine,Material Feeding Machine,Cooling Tower,
   Robot,Cup Stacking Machine,Hydraulic Forlift,Chiller,Crushing Machine,etc...
